10

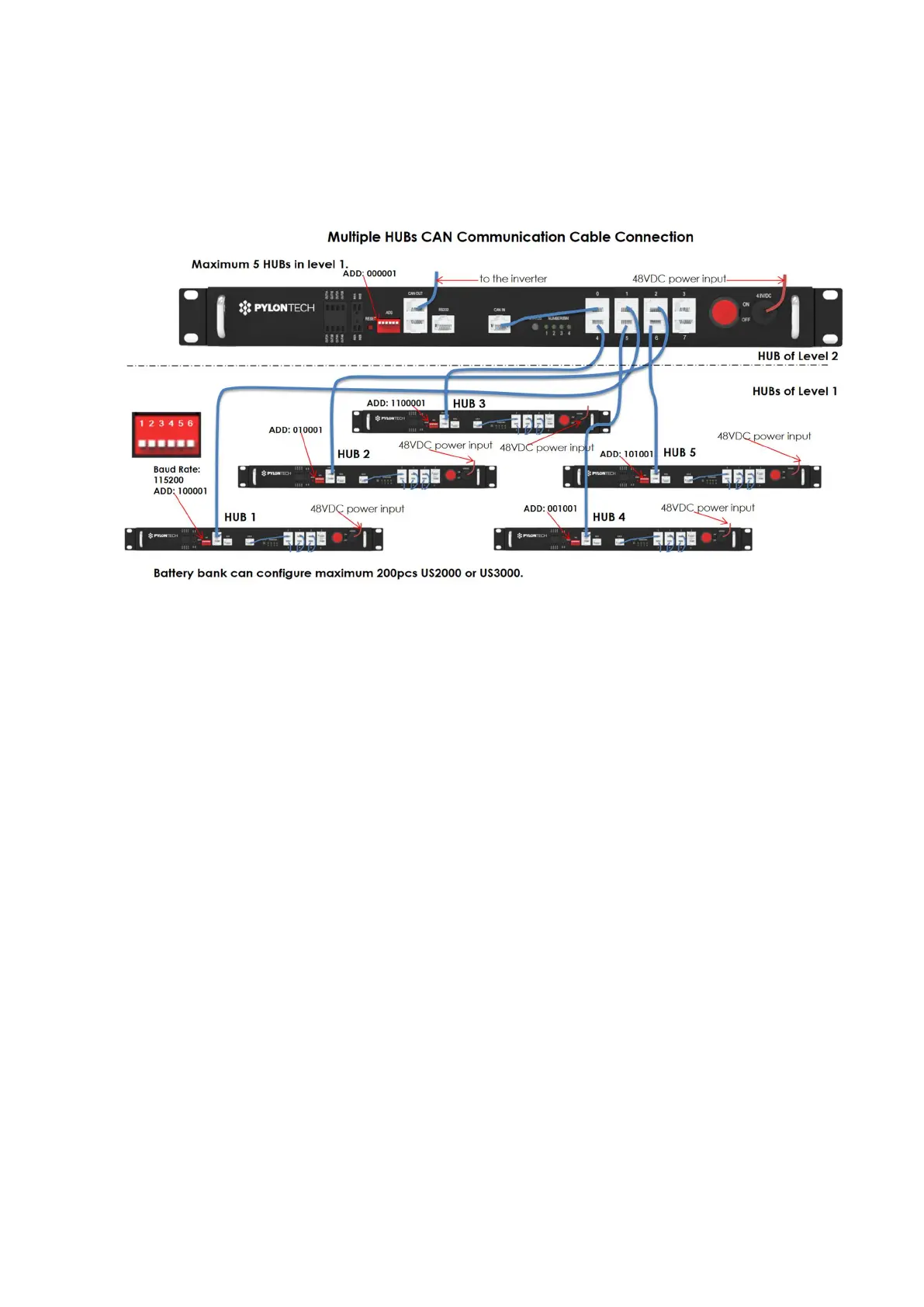

3.4 Cables Connection for Multiple HUBs under CANBUS.
In above picture, all communication cable connect in between shall be 8 pin direct-pin cable.
