5
3. Operation
3.1 Protocol
CAN:
CAN-Bus-protocol-PYLON-low-voltage-V1.2-20180408
or above.
RS485:
RS485-protocol-pylon-low-voltage-V3.1-20180408
or above.
3.2 Cables Connection for US2000/US3000 under RS485 or CANBUS.

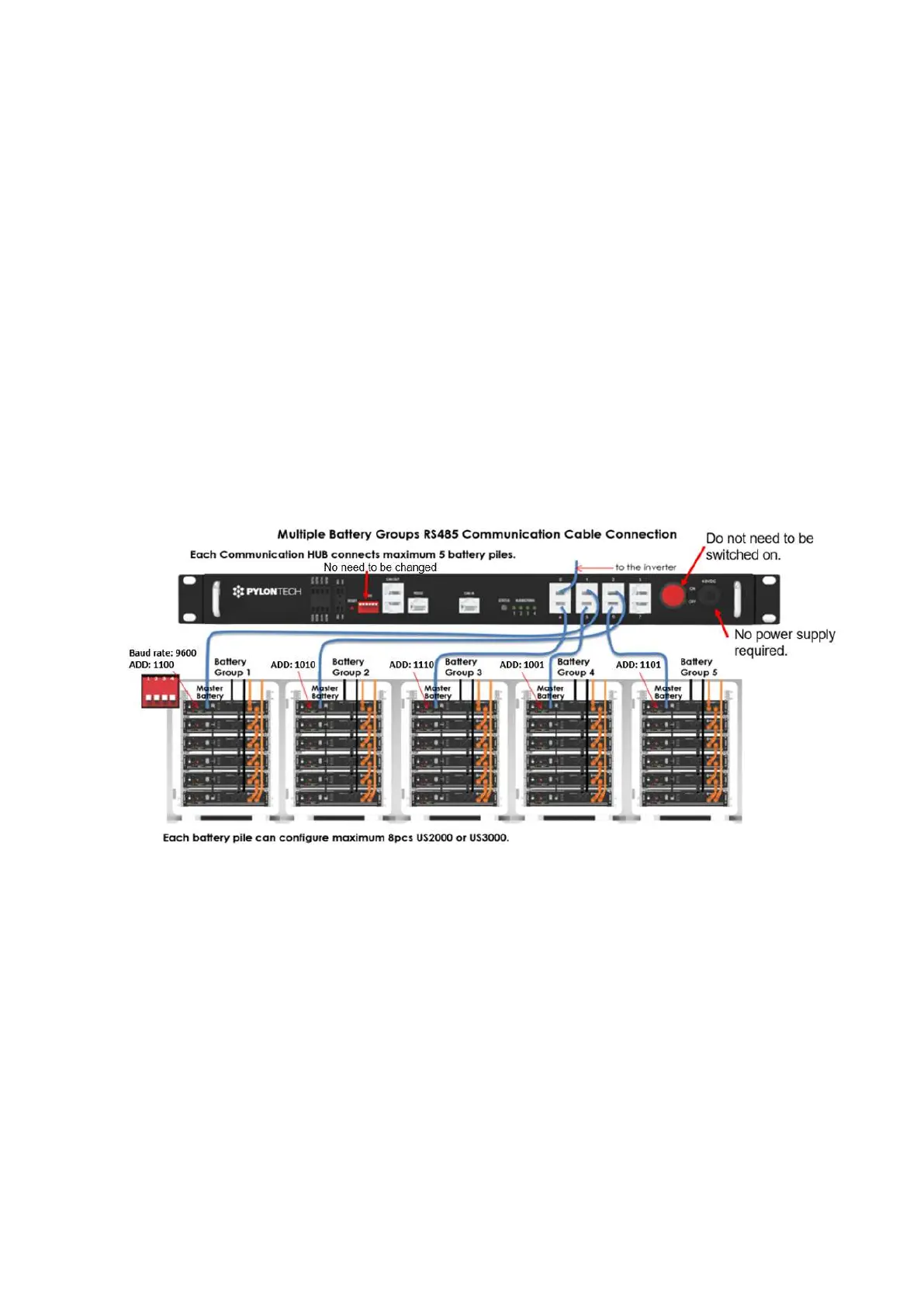

3.2.1 Cables Connection for RS485
Each battery group can configure maximum 8pcs US2000B Plus or 8pcs US3000.
LV-Hub-A configures maximum 5 group batteries.
RS485 communication needn’t additional cable and power just a simple hub is enough.
