Pylontech US2000 Manual

2020-03-09 12:34 3/11 Victron & Pylontech US2000, US3000 and Phantom-S
Victron Energy - https://www.victronenergy.com/live/

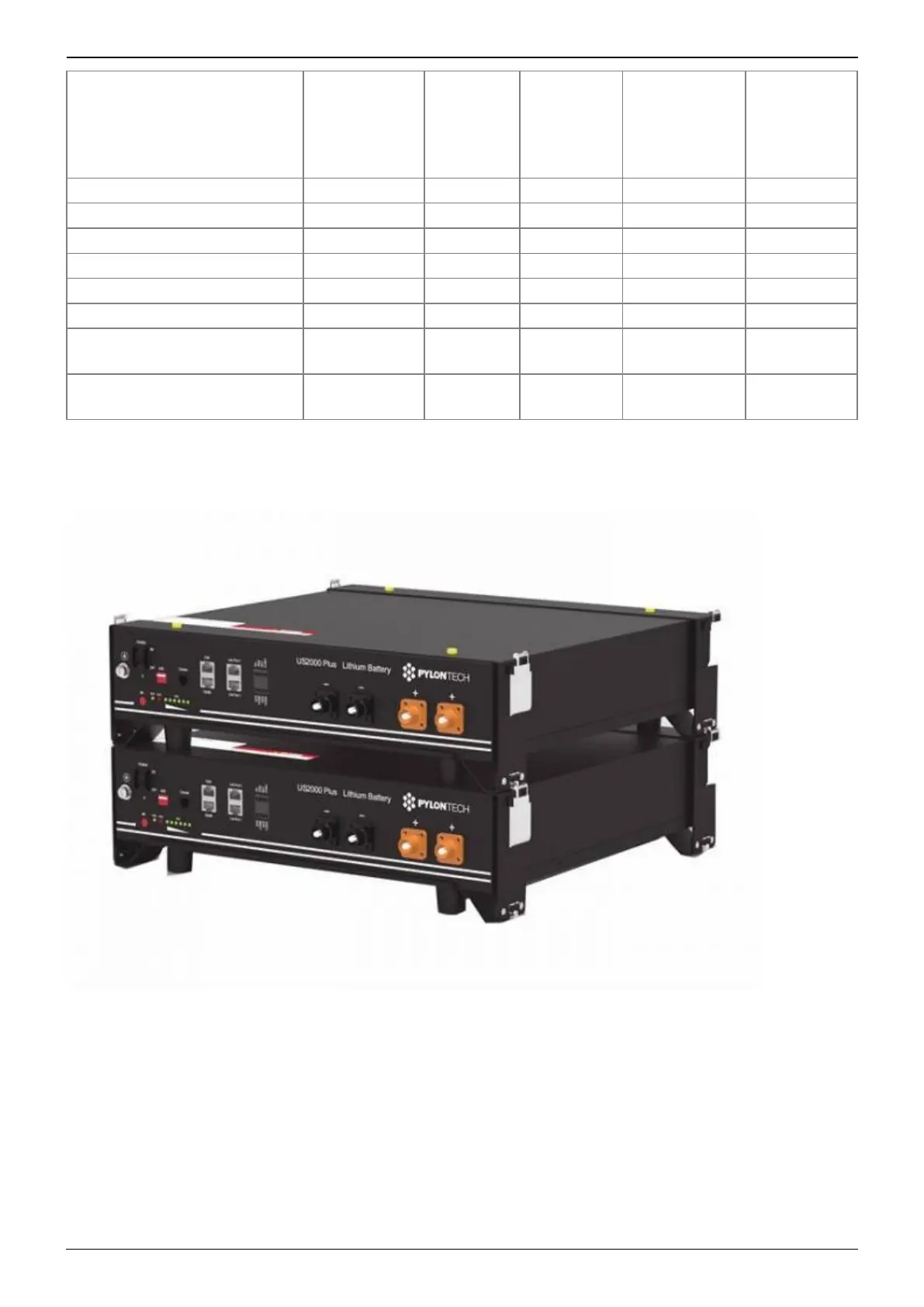

Inverter / Charger Model
Inv
continuous
watts @ 25
degrees
Inverter
peak
watts
surge
rating
Number of
Pylontech
modules
Battery
continuous
discharge
watt rating
Battery
peak
discharge
watt rating
Multiplus 48/500/6 430 900 1 1200 4800
Multiplus 48/800/9 700 1600 1 1200 4800
Multiplus 48/1200/13 1000 2400 1 1200 4800
Multiplus 48/3000/35 2400 6000 2 2400 9600
Multiplus 48/5000/70 4000 10000 4 4800 19200
Quattro 48/8000/110-100/100 6500 16000 6 7200 28800
Quattro
48/10000/140-100/100
8000 20000 7 8400 33600
Quattro
48/15000/200-100/100
12000 25000 10 12000 48000
3. CAN-bus Wiring
You can connect multiple battery modules together to form a single large battery by connecting the
RJ-45 cable supplied by Pylontech using the link ports on the battery. This is shown in more detail in
the example wiring diagram and Pylontech manual.
The batteries will automatically detect and link to each other, no adjustment of dip switches or
software changes are necessary on the batteries.
The battery with the empty link port 0 is the master battery. You must use the VE.Can to CAN-bus
BMS type B Cable, part number ASS030720018, you cannot use the cable supplied by Pylontech.
