9

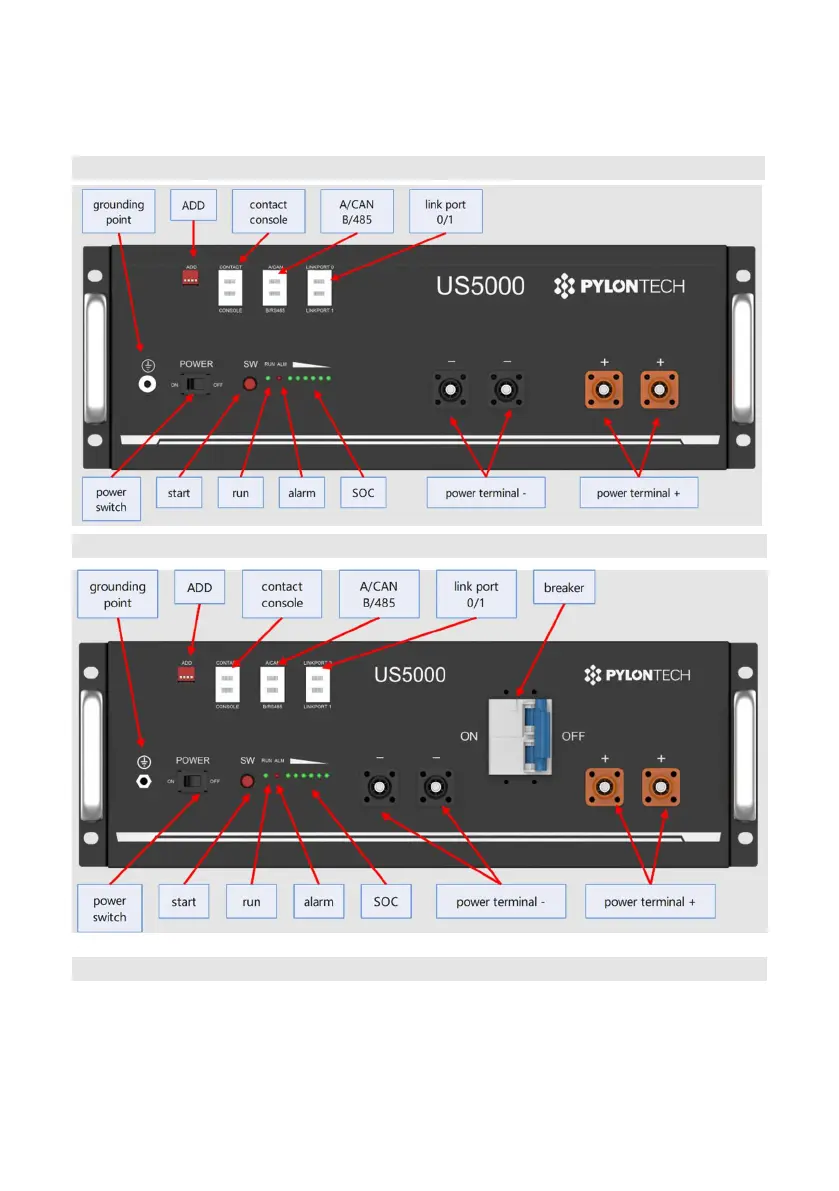

3.3 Equipment interface instruction
US5000 front panel
US5000-B front panel
Breaker (for US5000-B)
Parameter: type C, rated voltage 60V/DC, rated current 125A, Icu: 10kA.
Standard reference: UL1077, IEC60947-2.
ON: power terminals connect with battery.
OFF: power terminals disconnect with battery.
