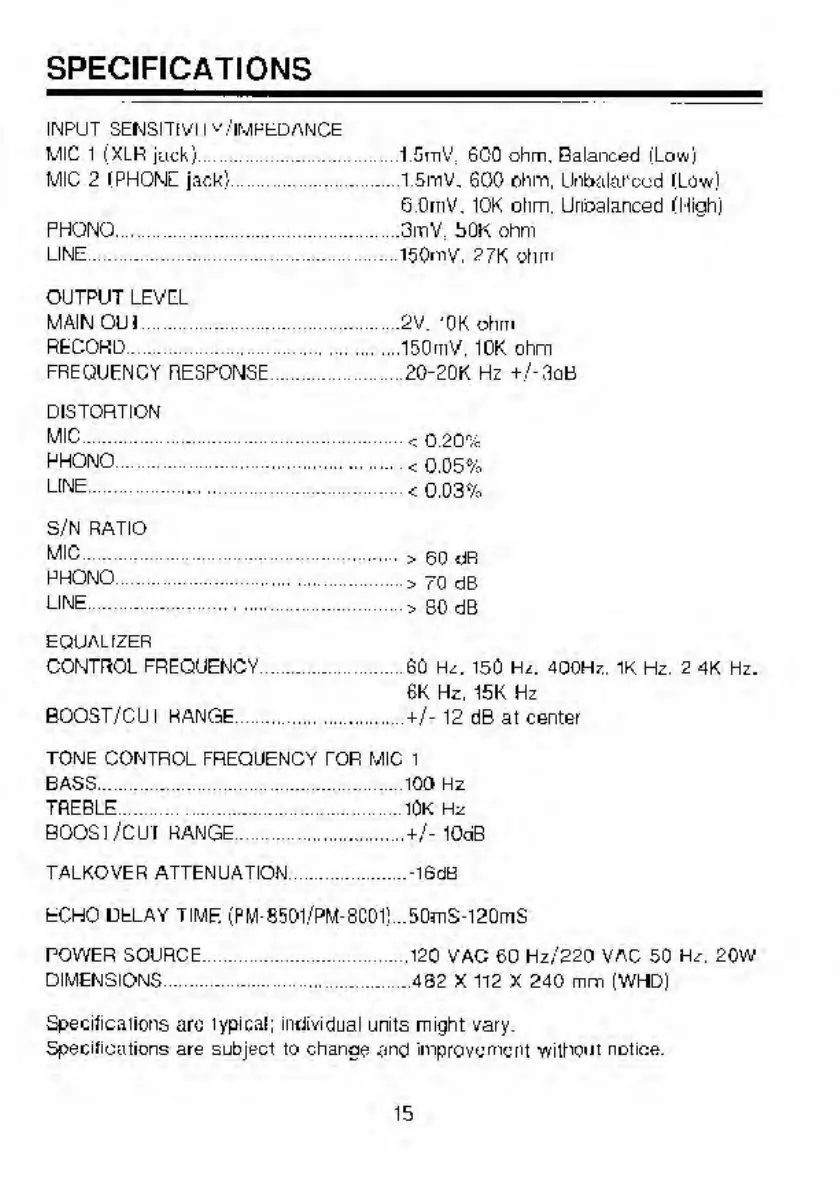

SPECIFICATIONS
INPUT SEMSITIVII v/IMPfcDANCE
MIC 1 (XLR juck) . 1 SCO ohm. Balanced (Low)
MIC 2 IPHONl jack' .1 5mv. 600 ohm, LlnbakU'ccd ILow)
GOrnV. 10K ohm. Urioalanced IMiahj
PHONO.3mV bOK ohm
LINE.150mV. ?7K ohm
OUTPUT LEVEL
MAIN Oil ] . 2V. 'OK ohm
RECORD.150mV. 10K ohm
FREQUENCY RESPONSE .... 20-20K Hz + /-3aB
DISTORTION
MIC. < o 20%
RHONO. < 0.05%
LINE. .< 0.03%
S/N RATIO
MIC.> 60 dR
PHONO . > 70 dB
LINE. > 80 dB
EQUAL fZER
CONTROL FREQUENCY.60 I-U. 150 H i. dQOHz. IK Hz. 2 4K Hz.
6K Hz, 15K Hz
BOOST/CU I RANGE . +/- 12 dB al center
TONE CONTROL FREQUENCY TOR MIC 1
BASS. .100 Hz
TREBLE.lOK Hz
BOOSl/CUI RANGE.+/-10dB
TALKOVER ATTENUATION .-l6dB
ECHO DELAY TIME (PM-8501/PM-8C01! ..50mS-l20mS
POWER SOURCE. . .120 VAC 60 Hz/220 VAC 50 Hz. 20W
DIMENSIONS.482 X 112 X 240 mm (WHD)
Specifications arc lypical; individual units might vary.
Spec ill cations are subject to chanoe and improvement without notice.
