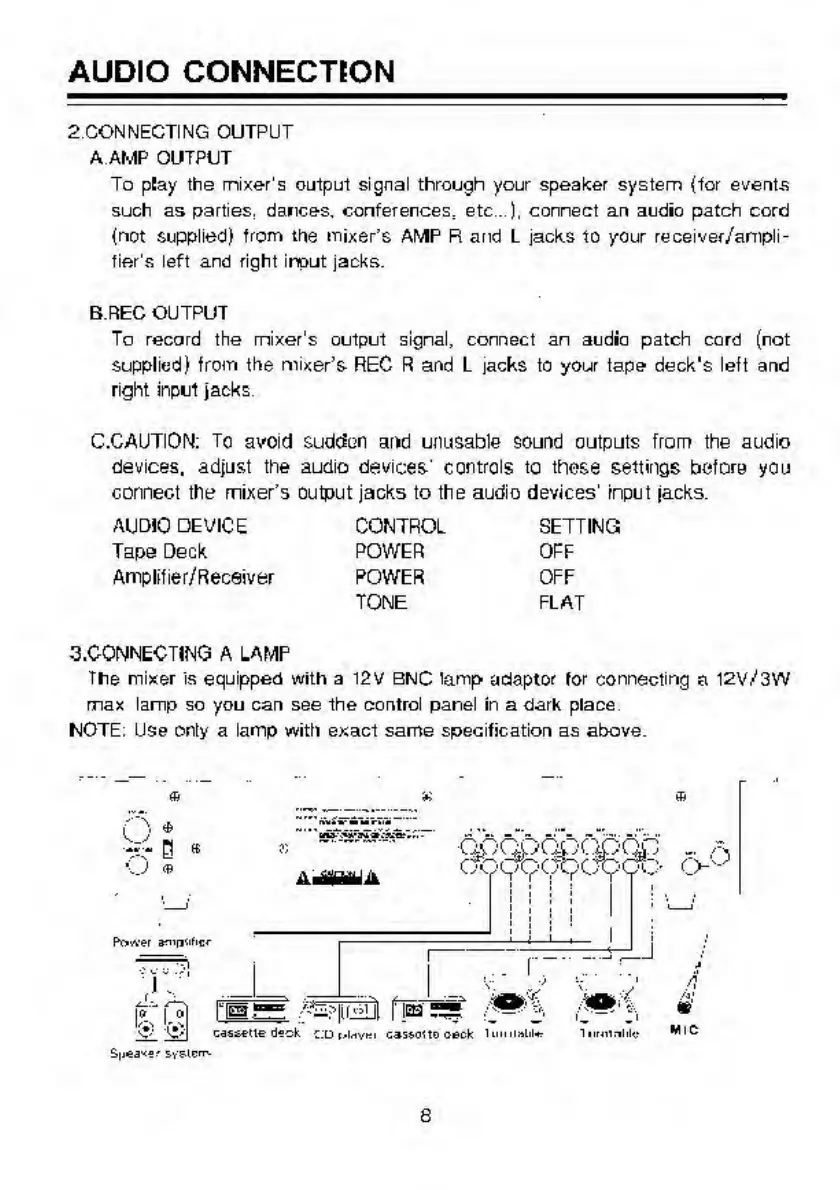

AUDIO CONNECTION
2 CONNECTING OUTPUT
A AMP OUTPUT
To p8ay the mixer's output signal through your speaker system (tor events
such as parties, dances, conferences, etc. ), connect an audio patch cord
(not supplied) from the mixer’s AMP R and L jacks to your receiver/ampli-
fier's left and right inout jacks.
B. REC OUTPUT
To record the mixer's output signal, connect an audio patch cord (not
supplied) from the mixer’s- REC R and L jacks to your tape deck's left and
right input jacks
C. CAUTION; To avoid sudden and unusable sound outputs from the audio
devices, adjust the audio devices-' controls to these settings before you
connect the mixer’s output jacks to the audio devices' Input jacks.
AUDiO DEVICE CONTROL SETTING
Tape Deck POWER OFF
Amplifier/Receiver POWER OFF
TONE FLAT
3.C0NNECT1NQ A LAMP
The mixer is equipped with a i2v BNC lamp adaptor for connecting a 12V/3W
max lamp so you can see the control panel in a dark place
NOTE. Use only a lamp with exact same specification as above.
& &
