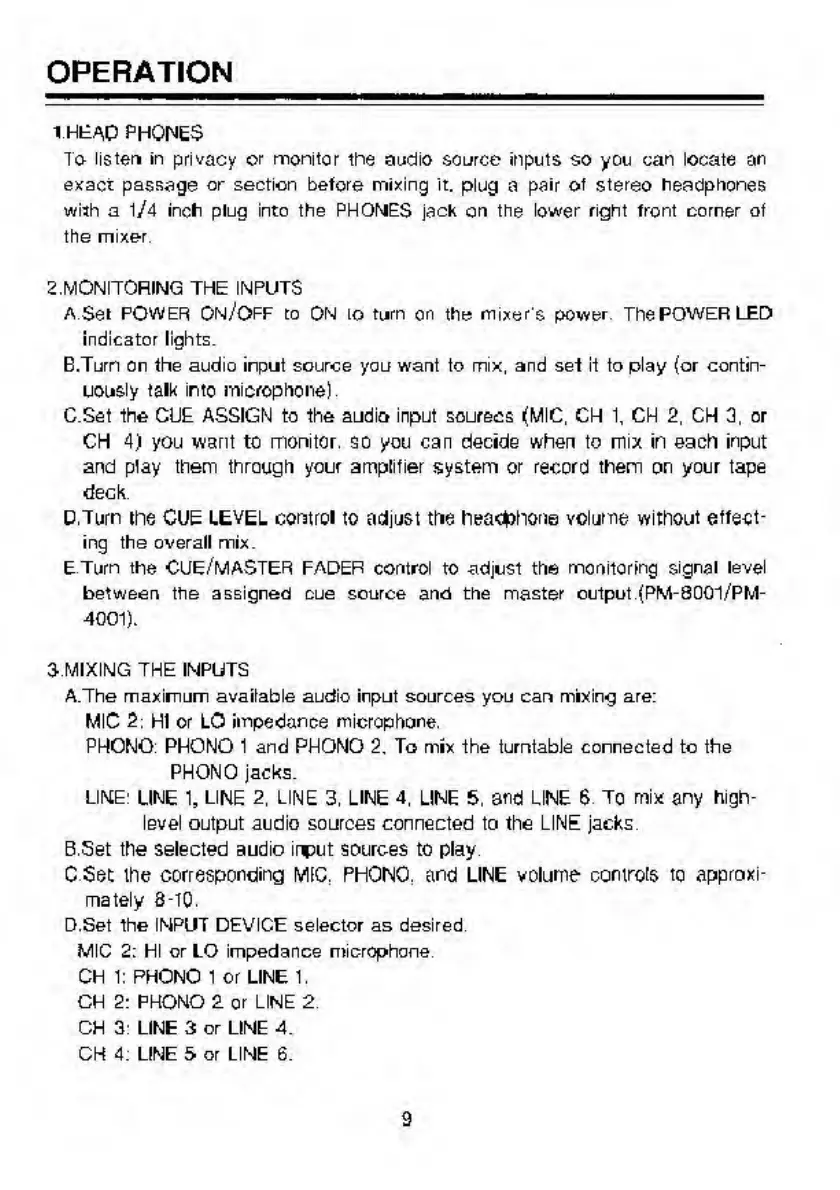

OPERATION
1 HEAD PHONES
To listen In privacy or monitor the audio source inputs so you can locate on
exact passage or section before mixing it. plug a pair of stereo headphones
with a 1/4 inch plug into the PHONES jack on the lower right front corner of
the mixer
2.MONITORING THE INPUTS
A Sef POWER ON/OFF to ON 10 turn on the mixer's power ThePOWERLED
Indicator lights.
B. Turn on the audio input source you want to mix, and sel it to play (or contin¬
uously talk into microphone)
C. Set the CUE ASSIGN to the audio input souracs (MIC, CH 1, CH 2, CH 3, or
CH 4) you want to monitor, so you can decide when to mix in each input
and play them through your amplifier system or record them on your tape
deck
D. Turn the CUE LEVEL control to adjust the heaefchon© volume without effect*
ing the overall mix.
ETurn the CUE/MASTER FADER control to -adjust the monitoring signal level
between the assigned cue source and the master output (PM-8001/PM-
4001).
3 MIXING THE INPUTS
A. The maximum available audio input sources you can mixing are:
MIC 2. HI or LO Impedance microphone.
PHONO PHONO 1 and PHONO 2. To mix the turntable connected to the
PHONO jacks.
LINE' LINE 1, LINE 2, LINE 3, LINE 4, LINE 5, and LINE 6 To mix any high-
level output audio sources connected to the LINE jacks
B. Set the selected audio ir^ut sources to play
C Set the corresponding MIC. PHONO, and LINE volume oomrols to approxi¬
mately 8-10.
D.Set the INPUT DEVICE selector as desired
MIC 2: HI or LO impedance microphone
CH 1: PHONO 1 or LINE 1.
CH 2: PHONO 2 or LINE 2
CH 3 LINE 3 or LINE 4.
CH 4. LINE 5 or LINE 6.
