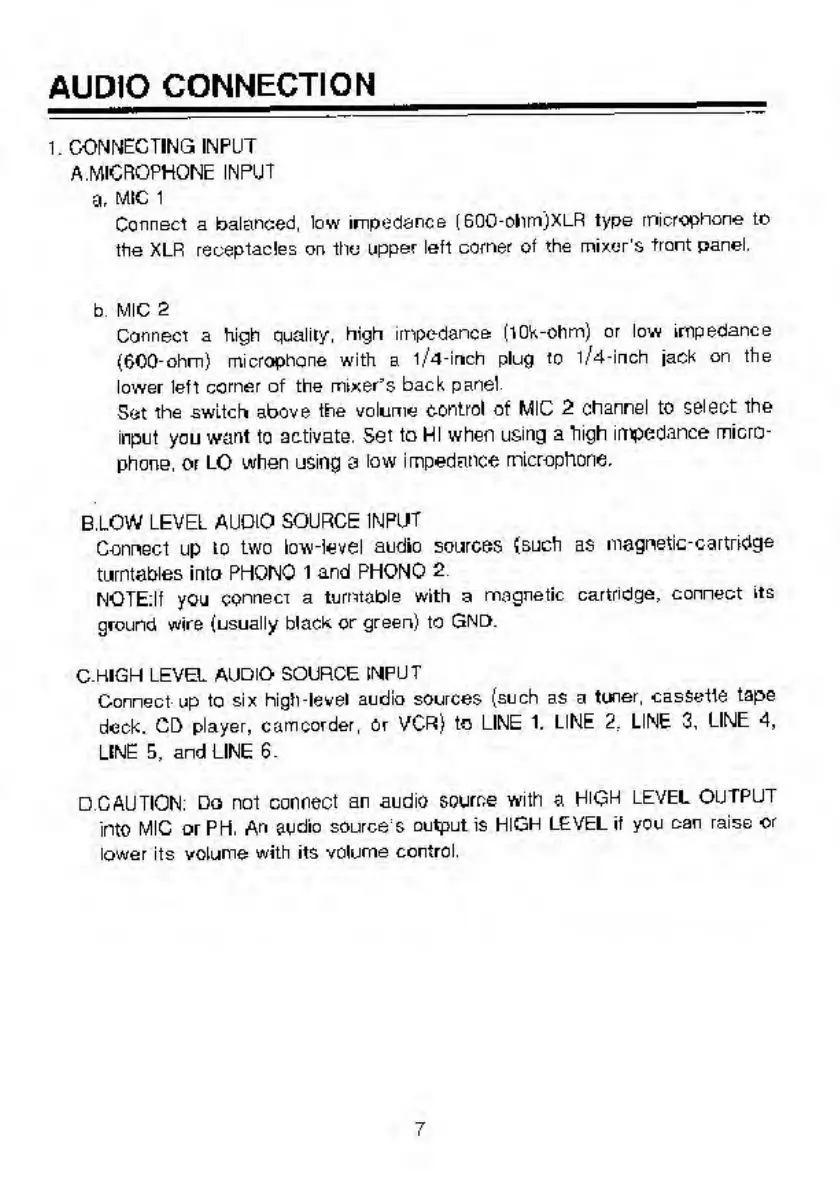

AUDIO CONNECTION
1. CONNECTING INPUT
A.MICROPHONE INPUT
g, MIC 1
Connect a balanced, low impedance (60O-ohm)XLR type microphone to
the XLR receptacles on the upper left comer of the mixer's tront panel.
b MIC 2
Connect a high quality, high impedance (1 Ok-ohm) or low impedance
(600*ohm) microphone with a 1/4-inch plug to 1 /4-inch jack on the
lower left corner of the mixer’s back panel
Set the switch above the volume control of MIC 2 channel to select the
input you want to activate. Set to HI when using a high impedance micro¬
phone, or LO when using a low impedance microphone.
B. LOW LEVEL AUOlO SOURCE INPUT
Connect up to two iow-tevel audio sources (such as magnetic-cartridge
turntables into PHONO 1 and PHONO 2
NOTE;lf you connect a turntable with a magnetic cartridge, connect its
ground wire (usually black or green) to GND.
C. KIGH LEVEL AUDIO SOURCE INPUT
Connect up to six high-level audio sources (such as a tuner, cassette tape
deck. CD player, camcorder, Or VCR) to LINE 1. LINE 2. LINE 3, LINE 4,
UNE 5, and LINE 6.
D CAUTION. Do not connect an audio source with a HGH LEVEL OUTPUT
into MIC or PH, An audio source S output is HIGH LEVEL if you can raise or
lower its volume with its volume control.
7
