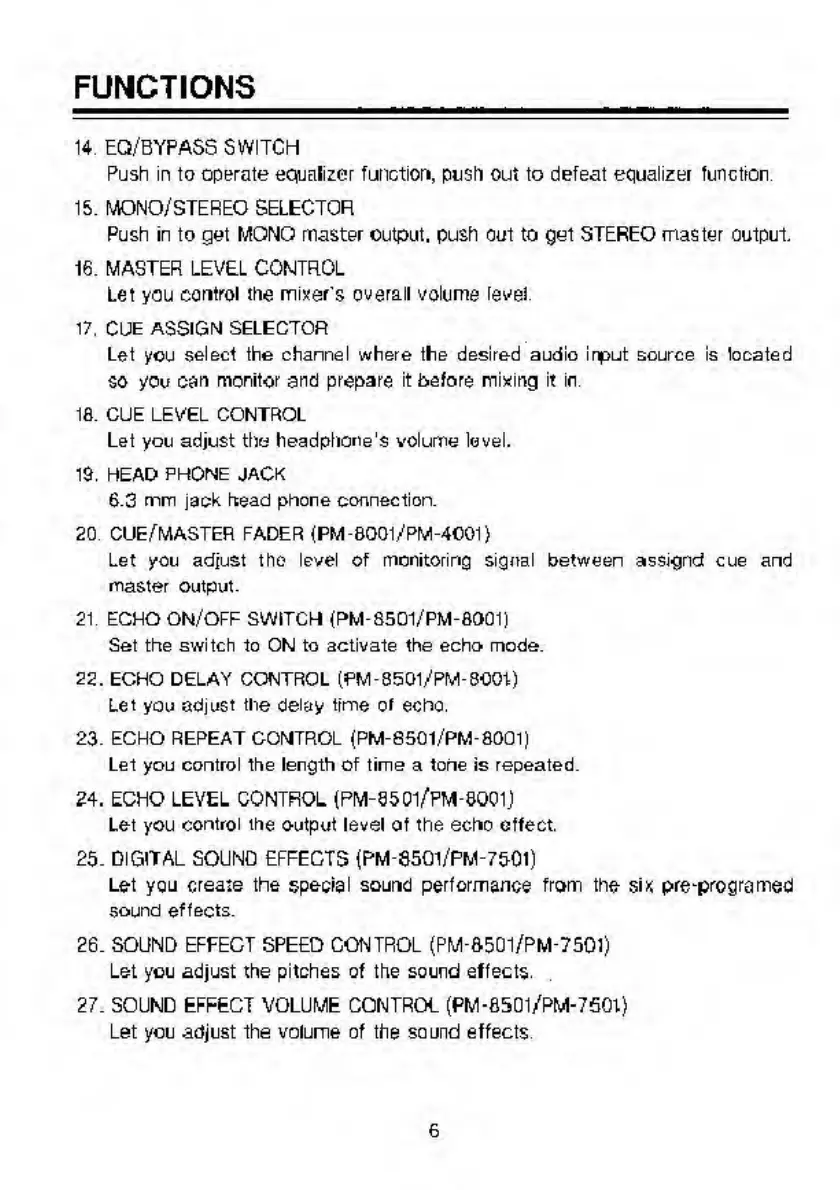

FUNCTIONS
14
EQ/BYPASS
SWITCH
Push
in
to
operate
equalizer
function,
push
out
to
defeat
equalizer
function
15.
MONO/STEREO
SELECTOR
Push
in
to
get
MONO
master
output,
push
out
to
gel
STEREO
master
output
16.
MASTER
LEVEL
CONTROL
Let
you
control
the
mixer's
overall
volume
level
17.
CUE
ASSIGN
SELECTOR
Let
you
select
the
channel
where
the
desired
audio
input
source
is
located
so
you
can
monitor
and
prepare
it
before
mixing
it
in
18.
CUE
LEVEL
CONTROL
Let
you
adjust
the
headphone's
volume
level.
19.
HEAD
PHONE
JACK
6.3
mm
jack
head
phone
connection.
20
CUE/MASTER
FADER
{PM-8001/PM-4C01)
Let
you
adjust
the
level
of
monitoring
signal
between
assignd
cue
and
master
output.
21
ECHO
ON/OFF
SWITCH
{PM-8501/PM-8001)
Set
the
switch
to
ON
to
activate
the
echo
mode.
22.
ECHO
DELAY
CONTROL
(PM-85Q1/PM-8CCH)
Let
you
adjust
the
delay
time
of
echo.
23.
ECHO
REPEAT
CONTROL
(PM-8501/PM-8001)
Let
you
control
the
length
of
time
a
tone
is
repeated.
24.
ECHO
LEVEL
CONTROL
(PM-850VPM-8001J
Let
you
control
the
output
level
of
the
echo
effect.
25.
DIGITAL
SOUND
EFFECTS
(PM-8501/PM-7501)
Let
you
create
the
special
sound
performance
from
the
six
pre*programed
sound
effects.
26.
SOUND
EFFECT
SPEED
CONTROL
(PM-8501/PM-75O1)
Let
you
adjust
the
pitches
of
the
sound
effects.
27.
SOUND
EFFECT
VOLUME
CONTROL.
(PM-850l/PM-760t)
Let
you
adjust
the
volume
of
the
sound
effects
6
