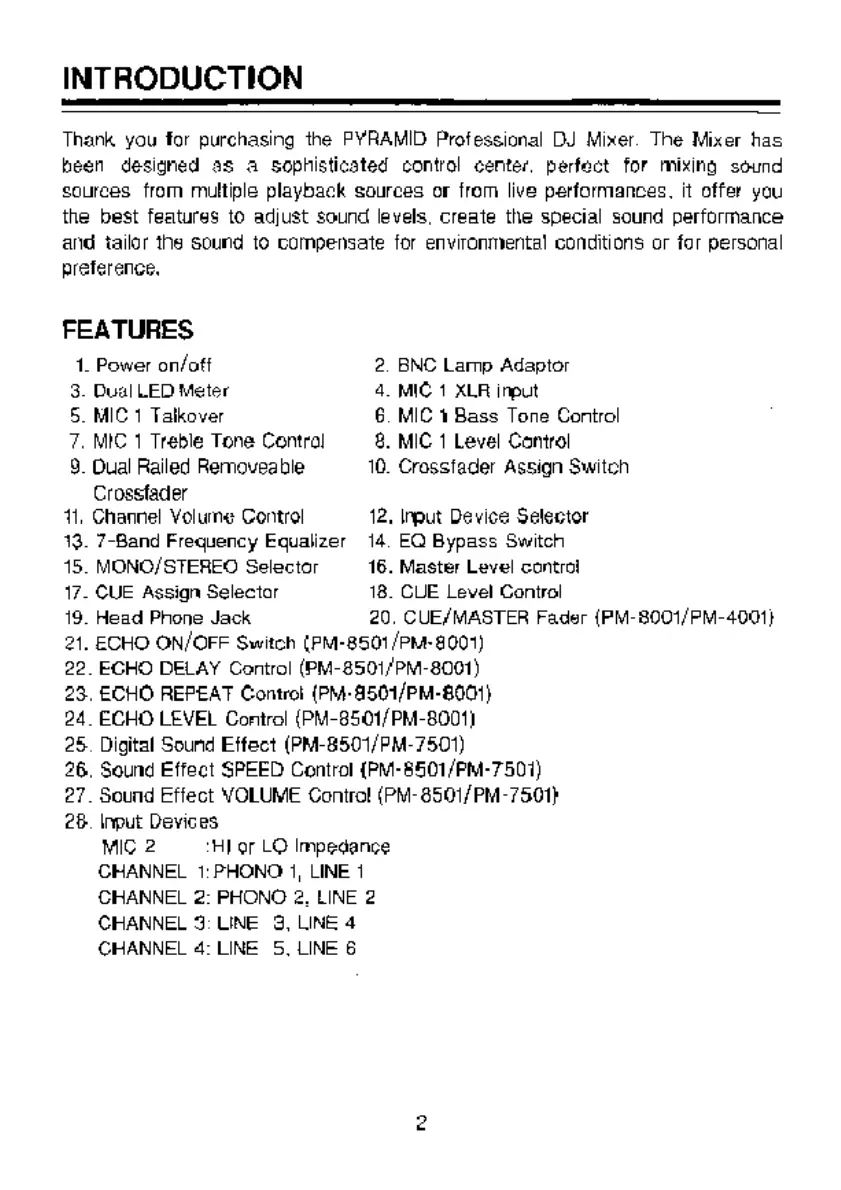

INTRODUCTION
Thank you for purchasing the PYRAMID Professional DJ Mixer. The Mixer has
been designed as a sophisticated control center, perfect for mixing sound
sources from multiple playback sources or from live performances, it offer you
the best features to adjust sound levels, create the special sound performance
and tailor the sound to compensate for environmental conditions or for personal
preference,
FEATURES
1. Power on/off 2. BNC Lamp Adaptor
3. Dual LED Meter 4. MIC 1 XLR input
5. МІС 1 Talkover 6. MIC 1 Bass Tone Control
7. MIC 1 Treble Tone Control — 8. MIC 1 Level Control
9. Dual Railed Removeable 10. Crosstader Assign Switch
Crossfader
11, Channel Volume Control 12. Input Device Selector
13. 7-Band Frequency Equalizer 14. EQ Bypass Switch
15. MONO/STEREO Selector 16. Master Level control
17. CUE Assign Selector 18. CUE Level Control
19. Head Phone Jack 20. CUE/MASTER Fader (PM-8001/PM-4001)
21. ECHO ON/OFF Switch (PM-8501 /PM-8001)
22. ECHO DELAY Control (PM-8501/PM-8001)
23. ECHO REPEAT Control (РМ-850Ч/РМ-8001)
24. ECHO LEVEL Control (PM-8501/PM-8001)
25. Digital Sound Effect (PM-8501/PM-7501)
26. Sound Effect SPEED Control (PM-8501/PM-7501)
27. Sound Effect VOLUME Control (PM-8501/PM-7501)
28. Input Devices
МС? :HIorLO Impedance
CHANNEL 1:PHONO 1, LINE 1
CHANNEL 2: PHONO 2, LINE 2
CHANNEL 3: LINE 3, LINE 4
CHANNEL 4: LINE 5. LINE 6
