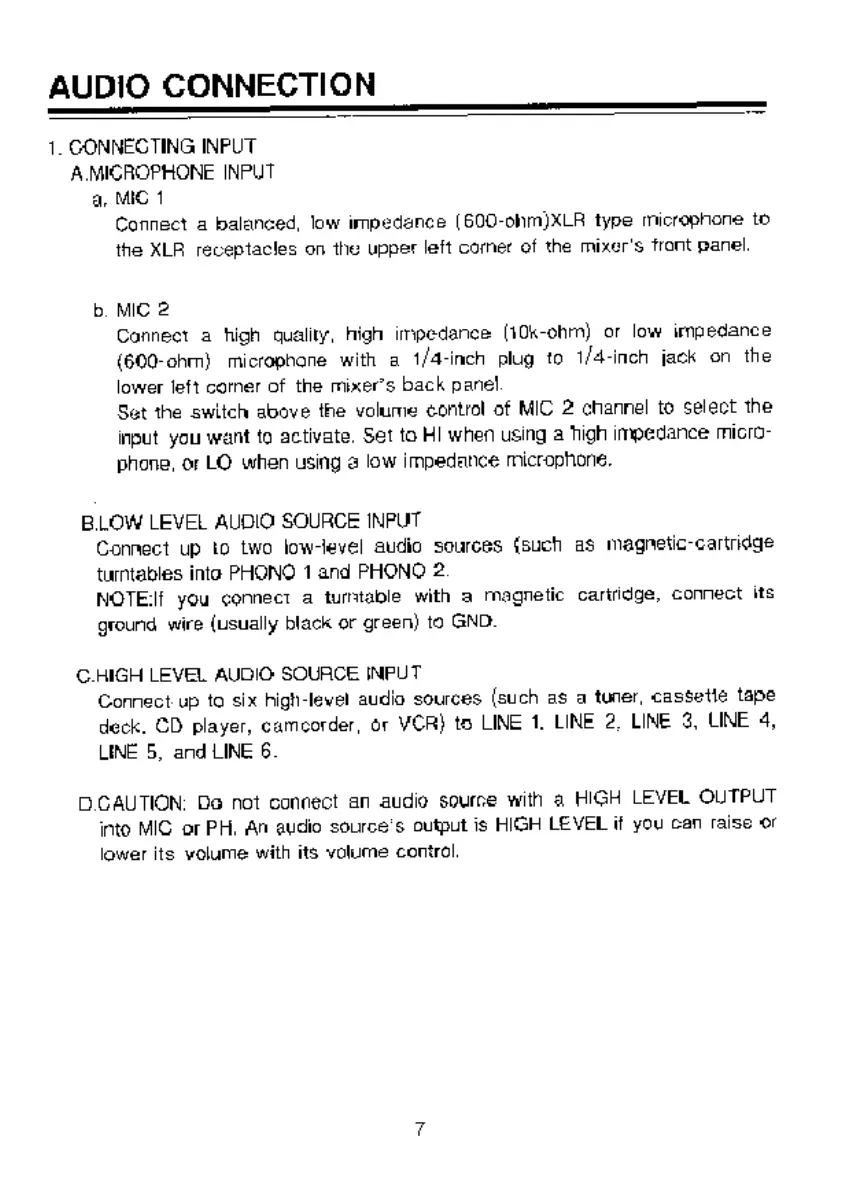

AUDIO CONNECTION
1. CONNECTING INPUT
A MICROPHONE INPUT
a. MIG 1
Connect
a
balanced,
low
impedance
(600-ohm)XLR
type
microphone
to
the
XLR
receptacles
on
the
upper
left
comer
of
the
mixer's
front
panel
b. MIC 2
Cannect
a
high
quality,
high
impedance
[iOk-ohrm)
or
low
impedance
(600-ohm)
microphone
with
a
1/4-inch
plug
to
1/4-inch
jack
on
the
lower teft comer of the mixer’s back panel.
Set
the
switch
above
the
volume
control
of
MIC
2
channel
to
select
the
input
you
want
to
activate,
Set
to
НІ
when
using
a
high
impedance
micro-
phone, or LO when using a low impedance microphone.
BLOW LEVEL AUDIO SOURCE INPUT
Connect
up
10
two
low-level
audio
sources
(such
as
magnetic-cartridge
turntables
into
PHONO
1
and
PHONO
2.
NOTE:IF
you
connect
a
tumtable
with
a
magnetic
cartridge,
connect
its
ground wire (usually black or green) to GND.
C.HIGH LEVEL AUDIO SOURCE INPUT
Connect
up
to
six
high-level
audio
sources
(such
as
a
tuner,
cassetle
tape
deck.
CD
player,
camcorder,
or
VER}
to
LINE
1.
LINE
2,
LINE
3,
LINE
4,
LINE 5, and LINE 6
D.GAUTION:
Da
not
connect
an
audio
source
with
а
HIGH
LEVEL
OUTPUT
into
MIG
or
PH,
An
audio
source's
output
is
HIGH
LEVEL
if
you
can
raise
or
lower
its
wolume
with
its
volume
control
