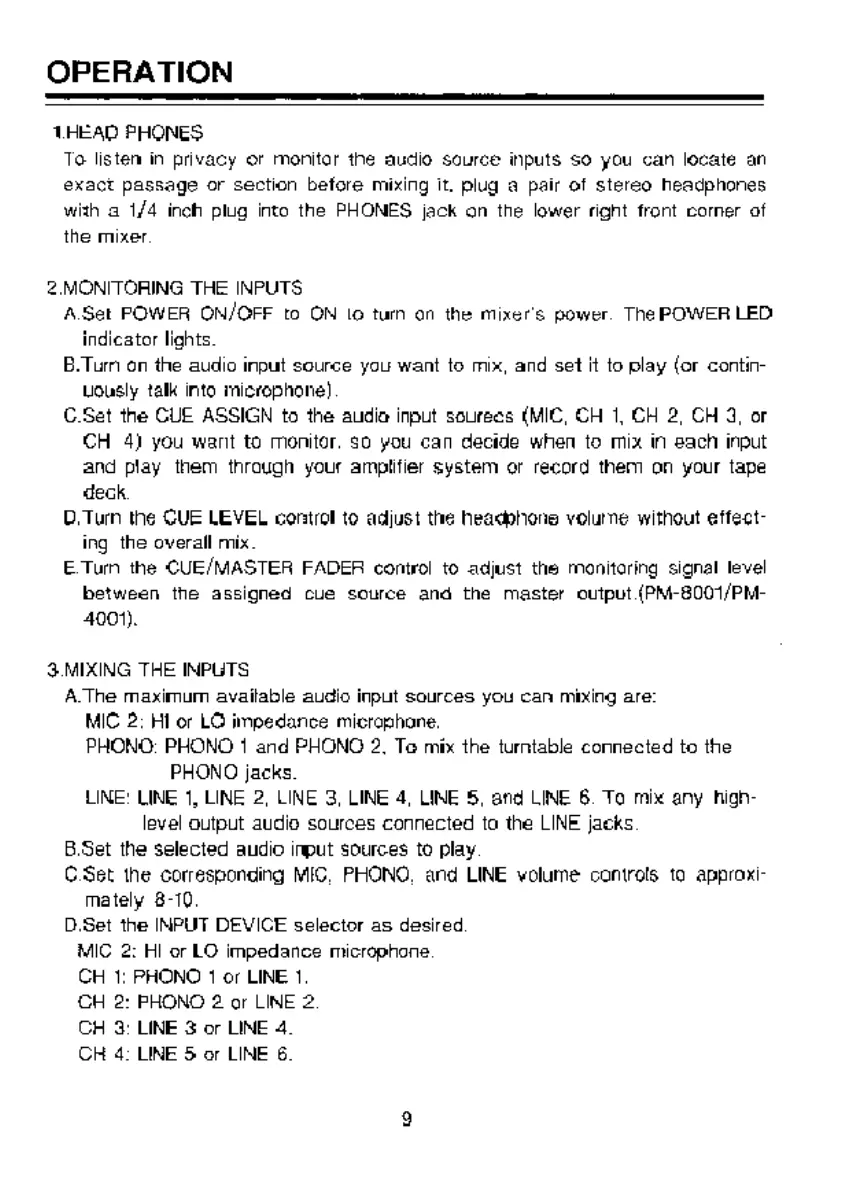

OPERATION
AHEAD PHONES
To listen in privacy or monitor the audio source inputs so you can locate an
exact passage or section before mixing it. plug a pair of stereo headphones
with a 1/4 inch plug into the PHONES jack on the lower right front corner of
the mixer
2.MONITORING THE INPUTS
A.Set POWER ON/OFF to ON lo tum on the mixer's power. The POWER LED
indicator lights.
B.Turn on the audio input source you want to mix, and set it to play (or contin-
ously talk into microphone)
C.Set the CUE ASSIGN to the audio input sourees (MIC, CH 1, СН 2, CH 3, or
СН 4) you want to monitor. so you can decide when to mix in each input
and play them through your amplifier system or record them on your tape
deck.
Отит the GUE LEVEL control to adjust the headphone volume without effect:
ing the overall mix.
Е.Тит the CUE/MASTER FADER control to adjust the monitoring signal level
between the assigned cue source and the master output (PM-8001/PM-
4001).
3.MIXING THE INPUTS
A.The maximum available audio input sources you can mixing are:
MIC 2: HI or LO impedance microphone.
PHONO: PHONO 1 and PHONO 2. Ta mix the turntable connected to the
PHONO jacks.
LINE: LINE 1, LINE 2, LINE 3, LINE 4, LINE 6, and LINE 6. To mix any high-
level output audio sources connected to the LINE jacks
B.Set the selected audio input sources to play.
C.Set the corresponding MIC, PHONO, and LINE volume controls 10 approxi-
mately 8-10.
D.Set the INPUT DEVICE selector as desired
MIC 2: HI or LO impedance microphone.
СН 1: PHONO 1 or LINE 1
СН 2: PHONO 2 or LINE 2
CH 3: LINE 3 or LINE 4.
СН 4: LINE 5 or LINE 6.
