4 ZONES
4.1 Engineer Programmable Zones
Entry / Exit This is a zone which allows limited-time access to the
premises in order to set or unset the system.
Access This is a zone which, on setting the panel, allows access
to the Entry / Exit zone. However, if the panel is set and
an Access zone is triggered before an Entry / Exit zone
then an alarm will be generated immediately.
Immediate This is a zone which will, when entered create an alarm
when the panel is set.
Omitted If a zone is programmed as an Omitted zone by the
Engineer, then it is ignored by the panel. Primarily used
for Part set options. It also allows the user to continue to
use the alarm system even if a fault has been discovered
on one or more zones.
4.2 24 hour zones
Personal Triggering of the Personal Attack (P.A) zone will always be cause a
Attack full alarm activation regardless of whether or not
the panel is set.
Tamper A tamper zone activation will only generate an internal
alarm, if the panel is in Day mode. If a tamper fault is
present and the panel is then set, the system will give a
second internal alarm. Triggering of a tamper zone when
the panel is set will always give an external as well as
internal alarm
Fire Triggering the fire zone will only operate the internal
sounder. A fire alarm is identified by a three note rising
sound which is easily distinguished from all other tones.
Zone 4 may be configured as a fire zone.
**The Fire Zone is intended as an extra feature to the Intruder Alarm system and must
not be regarded as a total fire protection system**
1. Panel set / on
2. Panel unset / off.

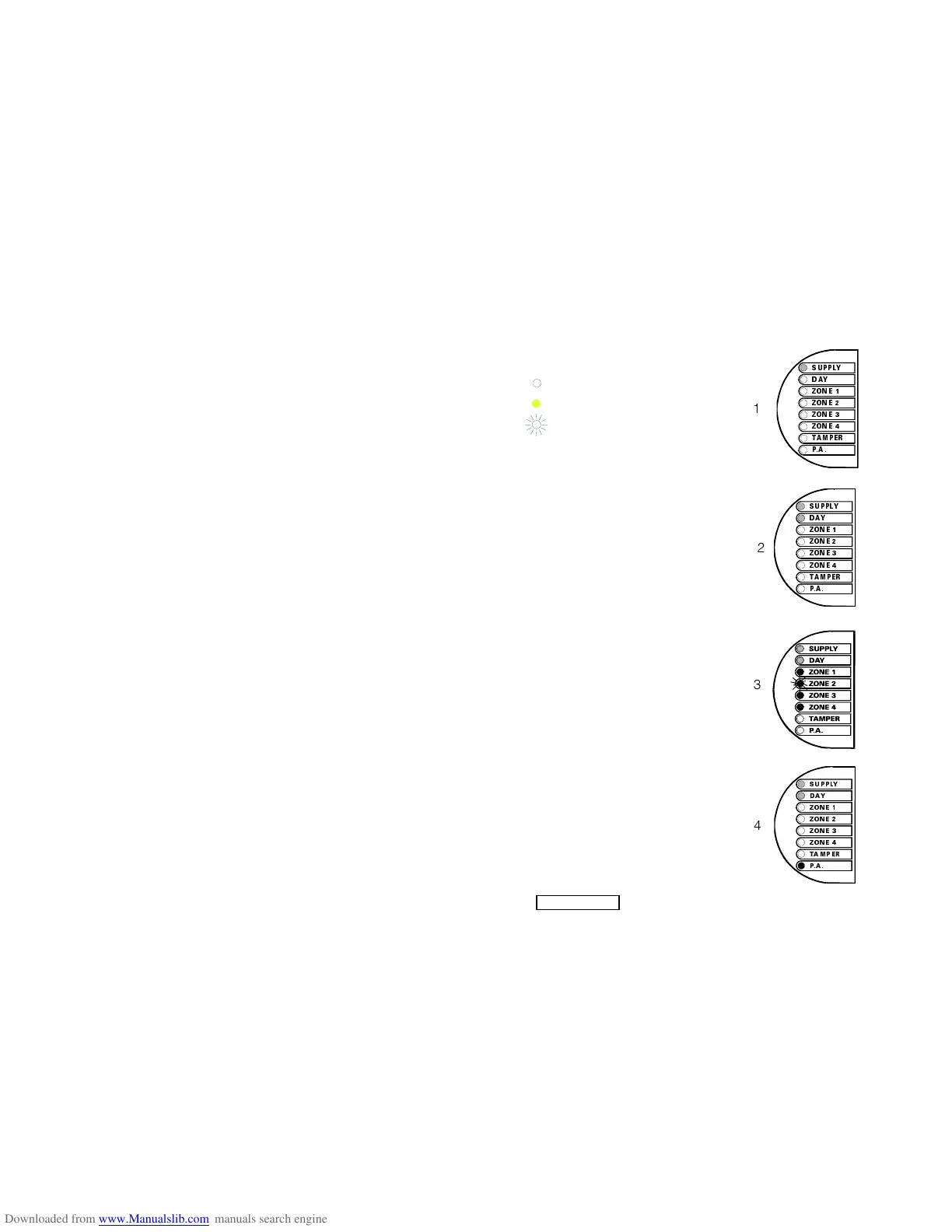

8 TROUBLESHOOTING
3. Panel unset . Zone1, Zone 2, Zone 3 ,
Zone 4 LEDs on.
This shows an alarm has occured
on Zones 1 to 4. Zone 2 was
activated first. To clear alarm lights
enter User code. If the LEDs do not
clear call engineer.
If the LED does not clear call the engineer.
4. Personal attack activated.
Enter User code to clear P.A light.
Reset Personal Attack buttons if necessary.
KEY:
= LED OFF
=LED ON
=LED FLASHING
CE@@<I
41I
J?>5 !
J?>5 "
J?>5 #
J?>5 $
D1=@5B
@1 
CE@@<I
41I
J?>5 !
J?>5 "
J?>5 #
J?>5 $
D 1=@5B
@1
CE@@<I
41I
J?>5 !
J?>5 "
J?>5 #
J?>5 $
D1=@5B
@1
1
2
4
3
