Pyronix Enforcer 32-WE Wireless Setup Guide

Enforcer 32-WE Wireless Setup Manual
Page: 17

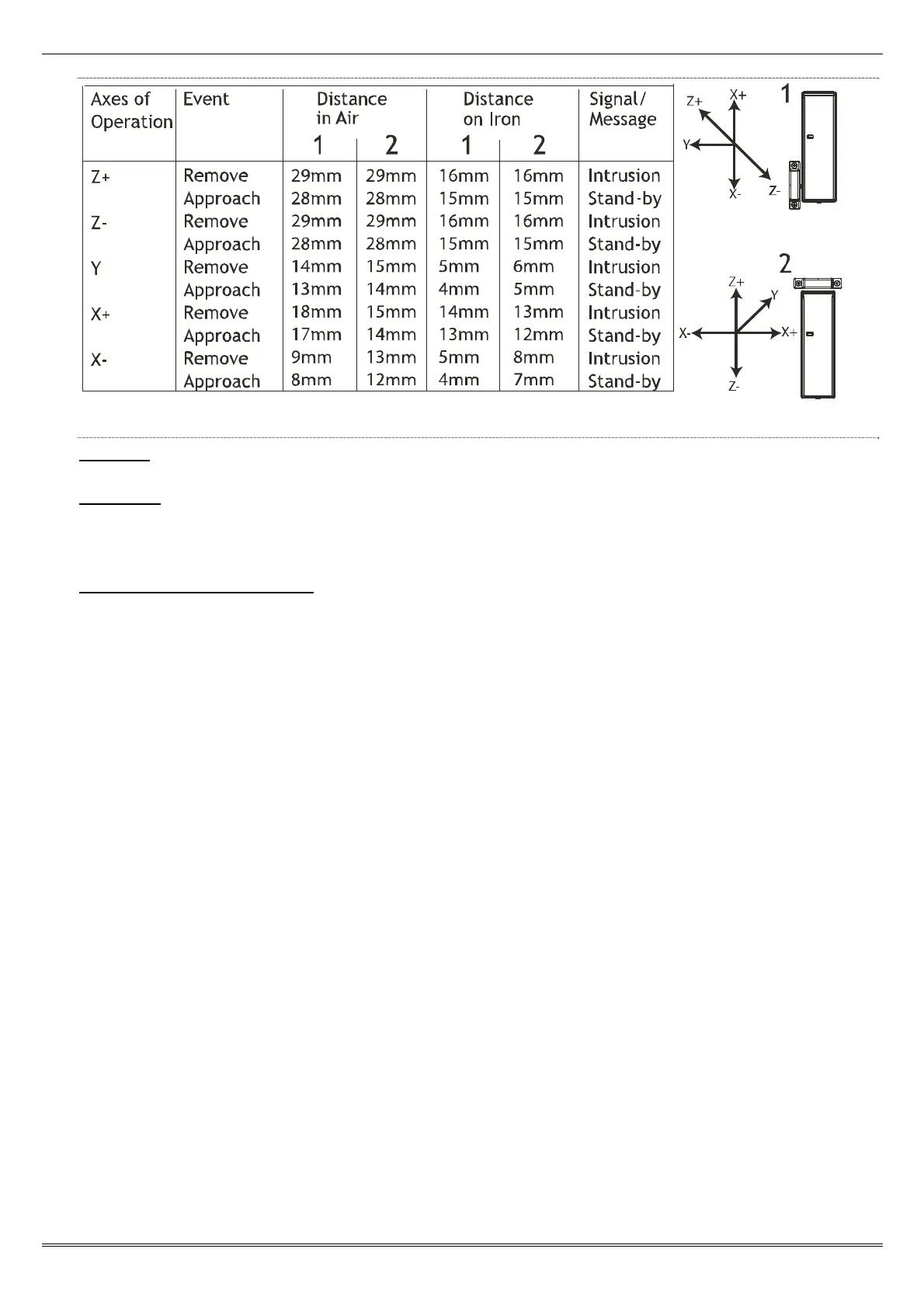

9.2.4 Magnet Detection Performance
9.2.5 Technical Specification
Battery:
Type: 3.0V CR2 Lithium Battery. Threshold: 2.5V +/- 5% at 25°C. Life: Up to 2 Years
Wireless:
Transmission Frequency: 868MHz, FM Transceiver Narrow Band
Transmission Method: Fully encrypted rolling code
Transmission Range: 1.6km free space
Materials and Environment
Colour and Casing: White (or Brown: MC2BROWN-WE). 2mm ABS
Indication: LEDs (Signal, Alarm, Tamper)
Temperature: Storage:-20°C to 50°C. Certified:-10°C to 40°C. Nominal:-10°C to 50°C
Dimensions (H x W x D): 115 x 36 x 30mm. Magnet: 56 x 13 x 17mm
Front and rear tamper.
2 reed switches, 1 external input and 1 external tamper input.
NOTE: The use of external inputs will make the system unable to comply with EN50131-1.

Pyronix Enforcer 32-WE Specifications

General

Brand	Pyronix
Model	Enforcer 32-WE
Category	Security System
Language	English
