Matrix User Guide
RINS915-2 Page: 51
CHAPTER 8: THE KEYFOB
8.1 Introduction
The KF4DW is a keyfob designed to work with the Matrix 832+ alarm panel. By pressing the desired button you
are able to arm or disarm the system without using a keypad.
Before any action is performed, you must allocate the keyfob to a specific user. See page 43.
8.2 How to use the keyfob
You can arm/disarm the panel using the key fob by pressing and holding the appropriate button on the key fob
until the LED flashes GREEN – this indicates that the button press was accepted. The engineer will have
programmed the actions of the each button.
The LED will then flash ORANGE once indicating that the wireless expander has received the button press.
If the ORANGE LED flashes multiple times then the key fob is unable to communicate with the wireless
expander and may be out of range.
8.3 Status LED
The status LED on the key fob shows the status of the panel when any arm or disarm button is pressed. The
indications are shown below:
Panel Status LED Indication
Disarmed
Green for 3 seconds
Arming
Toggles Green/Red in 3 second bursts until armed
Armed
Red for 3 seconds
In Alarm
Flashing Green for 3 seconds
In FTA
Flashing Green for 3 seconds
8.4 Locking a Key Fob
The key fob has a key fob locking feature. When the key fob is locked button presses will not result in any key
fob action. The button will be ignored.
To lock the key fob, simultaneously press and hold any 2 diagonal buttons on the key fob until the red LED fast
flashes. To unlock the key fob press and hold any 2 diagonal buttons until the key fob green LED fast flashes.
If you press a key fob button when the key fob is locked, the key fob LED will fast flash red to indicate that the
key fob is locked and that the key press was ignored.

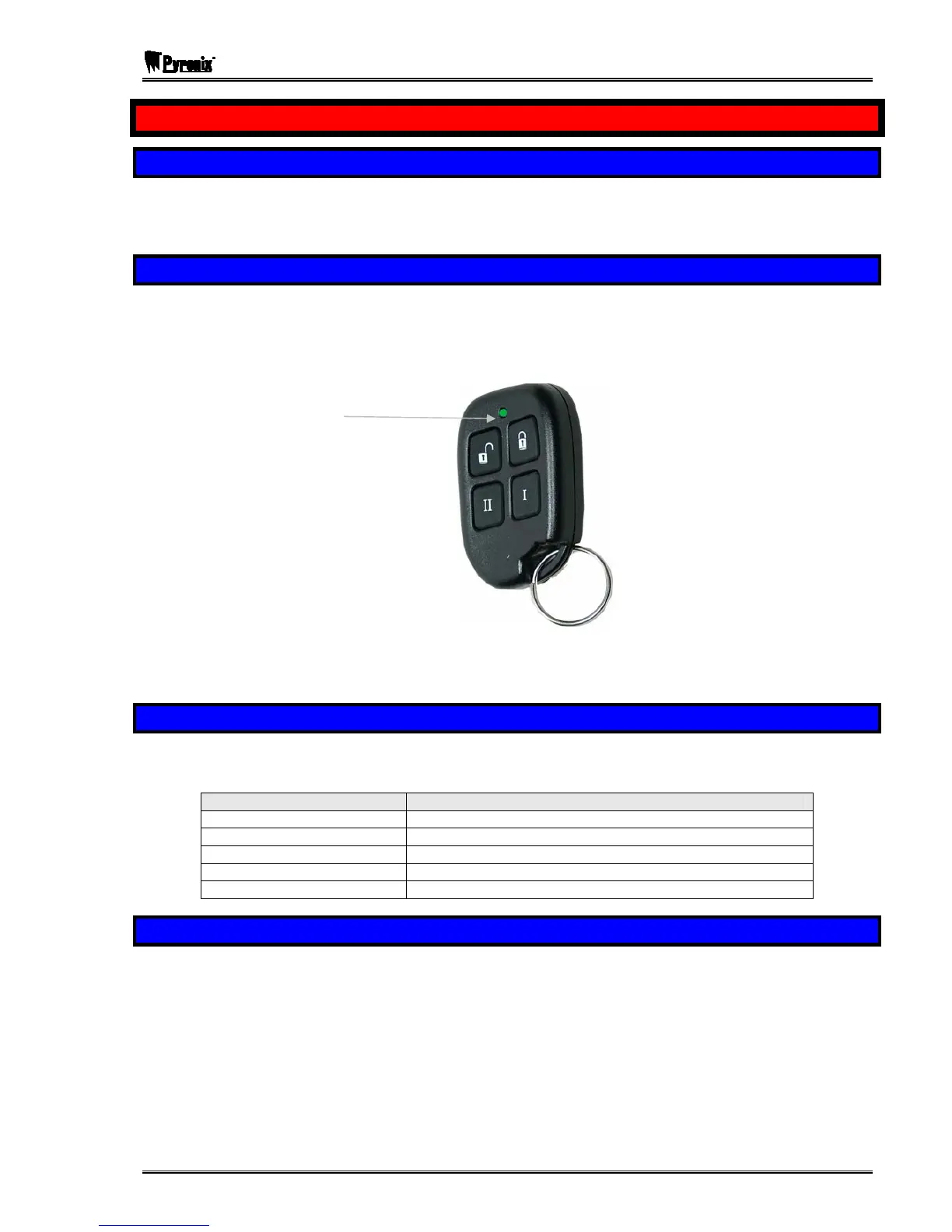

STATUS
