Pyrotector 30-3013 - Page 12

95-8746
10
3.1
POWER
2 WIRE
CLASS B
RECEIVING ZONE
CHASSIS
GROUND
–
+
–
+
GROUND LUG
B2684
Control Panel
600 Ω MAX
AT 24 VDC
mA
RELAY
OUTPUTS
– mA
– Vin
+ Vin
– Vin
+ Vin
5
4
3
2
1
POWER
SUPPLY &
0-20 mA OUTPUT
P11
P5
NO AUX
COM AUX
NC AUX
NO ALARM
COM ALARM
NC ALARM
COM FAULT
NO FAULT
1
2
3
4
5
6
7
8

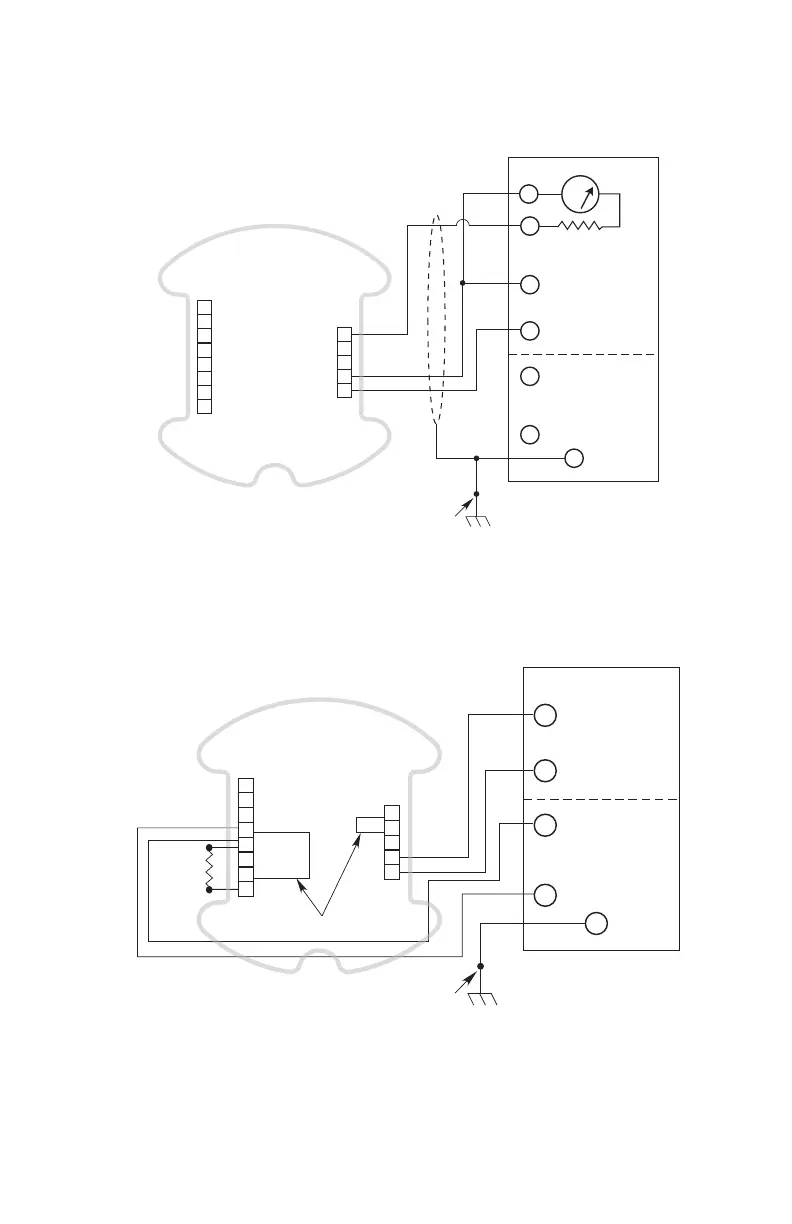

Figure12—Single Detector Wiring (0-20 mA used, Relays not used)
POWER
2 WIRE
CLASS B
RECEIVING ZONE
CHASSIS
GROUND
–
+
GROUND LUG
B2685
Control Panel
JUMPERS
EOL
RESISTOR
RELAY
OUTPUTS
– mA
– Vin
+ Vin
– Vin
+ Vin
5
4
3
2
1
POWER
SUPPLY &
0-20 mA OUTPUT
P11
P5
NO AUX
COM AUX
NC AUX
NO ALARM
COM ALARM
NC ALARM
COM FAULT
NO FAULT
1
2
3
4
5
6
7
8
Figure13—Single Detector Wiring (0-20 mA not used, Relays used)
