OVERVIEW
The 30-3013 Explosion Proof Smoke Detector has
Division and Zone explosion-proof ratings and is
suitable for industrial and commercial applications.
The detector is designed to operate effectively with
smoldering and rapidly growing fires and contains
the ability to annunciate faults ensuring no
undisclosed failures. The 30-3013 Smoke Detector
outputs include 0-20 mA, a localized LED, and
relays.
Typical applications that use the 30-3013 include:
– Combustible storage facilities
– Munitions manufacturing
– Volatile chemical storage
– Chemical processing plants
– Petroleum refineries
– Turbine enclosures
– Battery rooms
– HVAC applications
The hot-swappable sensor module is intrinsically
safe and allows live maintenance while under
power, without de-classifying the hazardous area.
The integrated junction box is available in a
variety of port configurations for simplified wiring

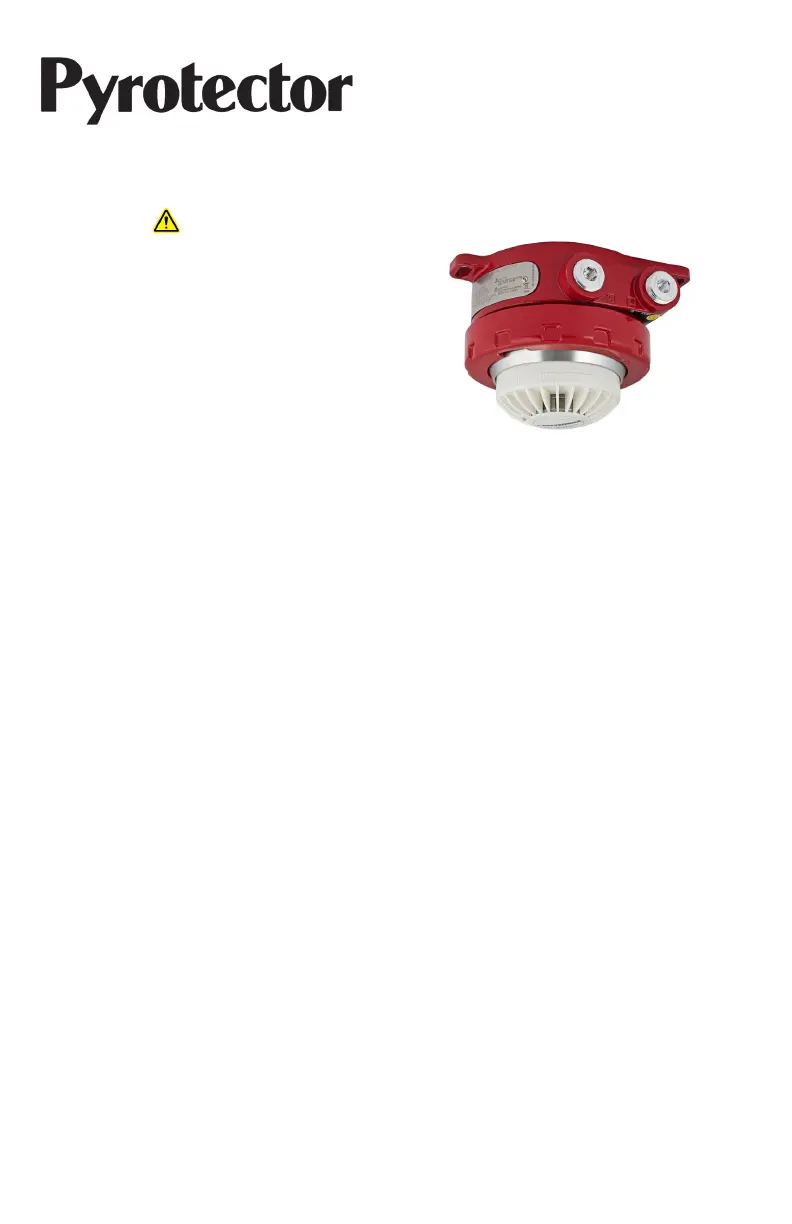

and installation. See Figure 1 for all the 30-3013
Smoke Detector components.
FEATURES
• FM Approved for use in Class I, Division 1
hazardous locations
• FM Approved for smoke detection performance
• IECEx Zone approved
• Trouble-free photoelectric operation
• 0-20 mA output for DCS integration
• Self-checking circuitry ensures reliable smoke
detection
• Alarm, Auxiliary, and Fault relays for controlling
annunciating devices or fire panel interface
• LED provides a visual indication that an alarm
has occurred
• IP44 ingress protection level suitable for
onshore or offshore requirements
BENEFITS
• Ideally suited for classified areas in the
petrochemical, oil, and gas industry
• DCS, PLC, integration with milliamp or relay
outputs
• Rugged design for environmental extremes
• Visual confirmation of detector alarm
• Detects smoldering fires
• No undisclosed failures
INSTRUCTIONS
Explosion Proof Smoke Detector
30-3013
©2020 Detector Electronics Corporation Rev: 11/2020
