Pyrotector 30-3013 - Maintenance; Routine Inspection

9
95-8746
3.1
GROUND LUGS
ALIGNMENT GUIDE
MAINTENANCE
WARNING
To avoid a potential electrostatic discharge
(ESD), do not wipe or rub the surface of the
30-3013 sensor module.
NOTE
The 30-3013 Smoke Detector contains no
user serviceable components and should
never be opened. The 30-3013 wiring
compartment is the only part of the smoke
detector that should be opened by the user
in the eld.
ROUTINE INSPECTION
Regularly scheduled maintenance is not
required, however, the 30-3013 cover and smoke
chamber should be inspected periodically when
detectors are located in abnormally dirty or dusty
environments, to ensure the smoke chamber is
not blocked by dirt or debris.
The smoke detector can be tested using the
same methods employed for any photo-electric
detector. Det-Tronics recommends using a
test aerosol smoke dispenser for periodic
maintenance of the detector.

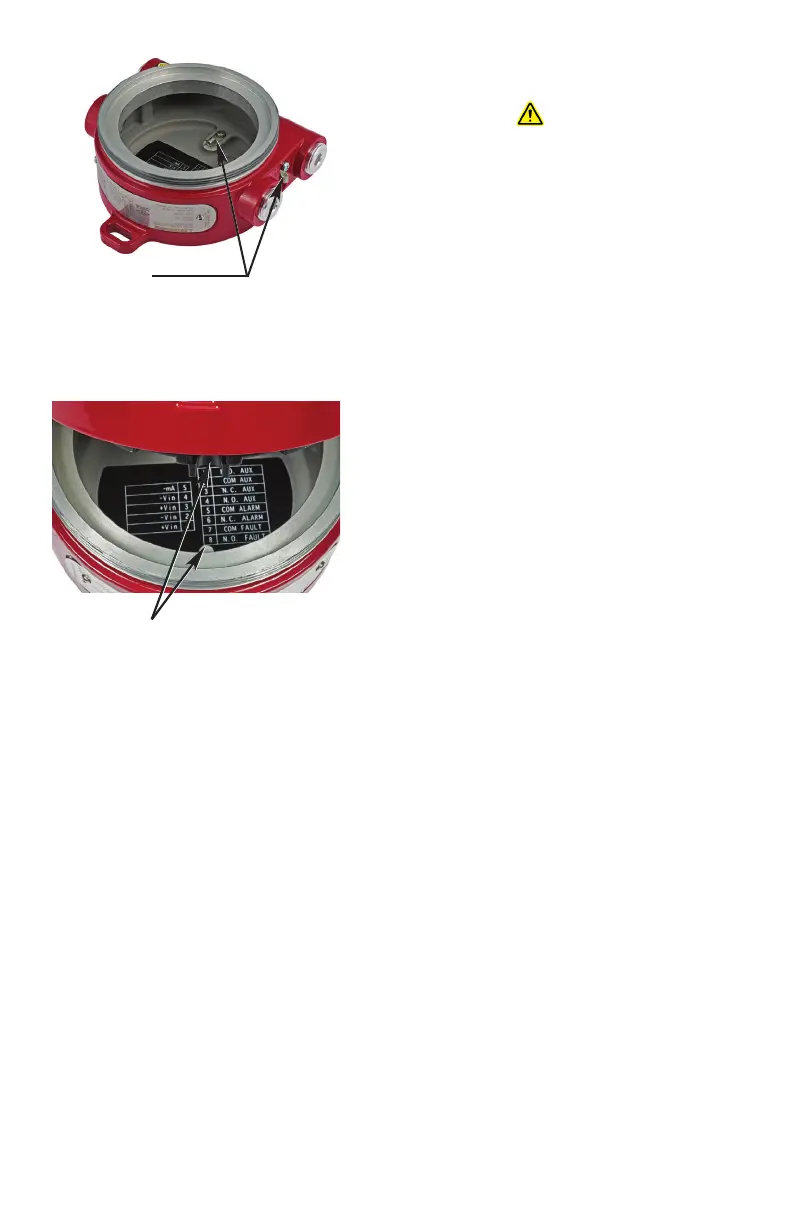

Figure10—Ground Lug Locations
Figure11—Alignment Guide Location
