1.2 BMS function
Protection and Alarm
Management and Monitor
Charge/Discharge End
Cell Balance
Charging over Voltage
Intelligent Charge Model
Charge/Discharge Over Current
Charge/Discharge current Limit
High/Low Temperature
Capacity Retention Calculation
Short Circuit
Administrator Monitor
Power Cable Reverse
Record
2 Interface and protection functions

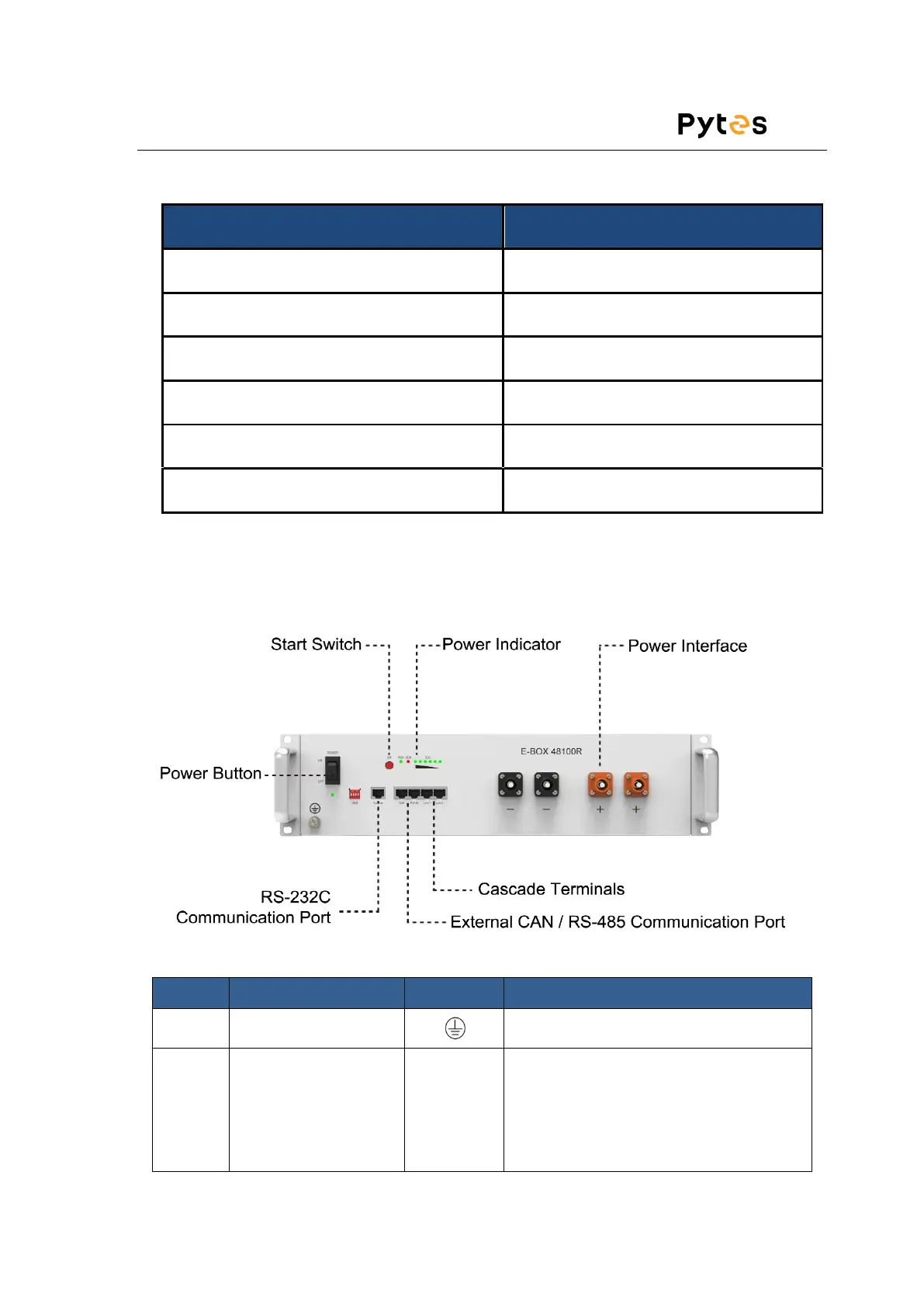

2.1 Battery front panel schematic
2.2 Components
No.
Name
Label
Functions description
1
Ground
Grounding
2
Power button
POWER
When switched to "ON", the system
can be activated by the "SW" key or
external power supply; when switched
to "OFF", the system is off.
