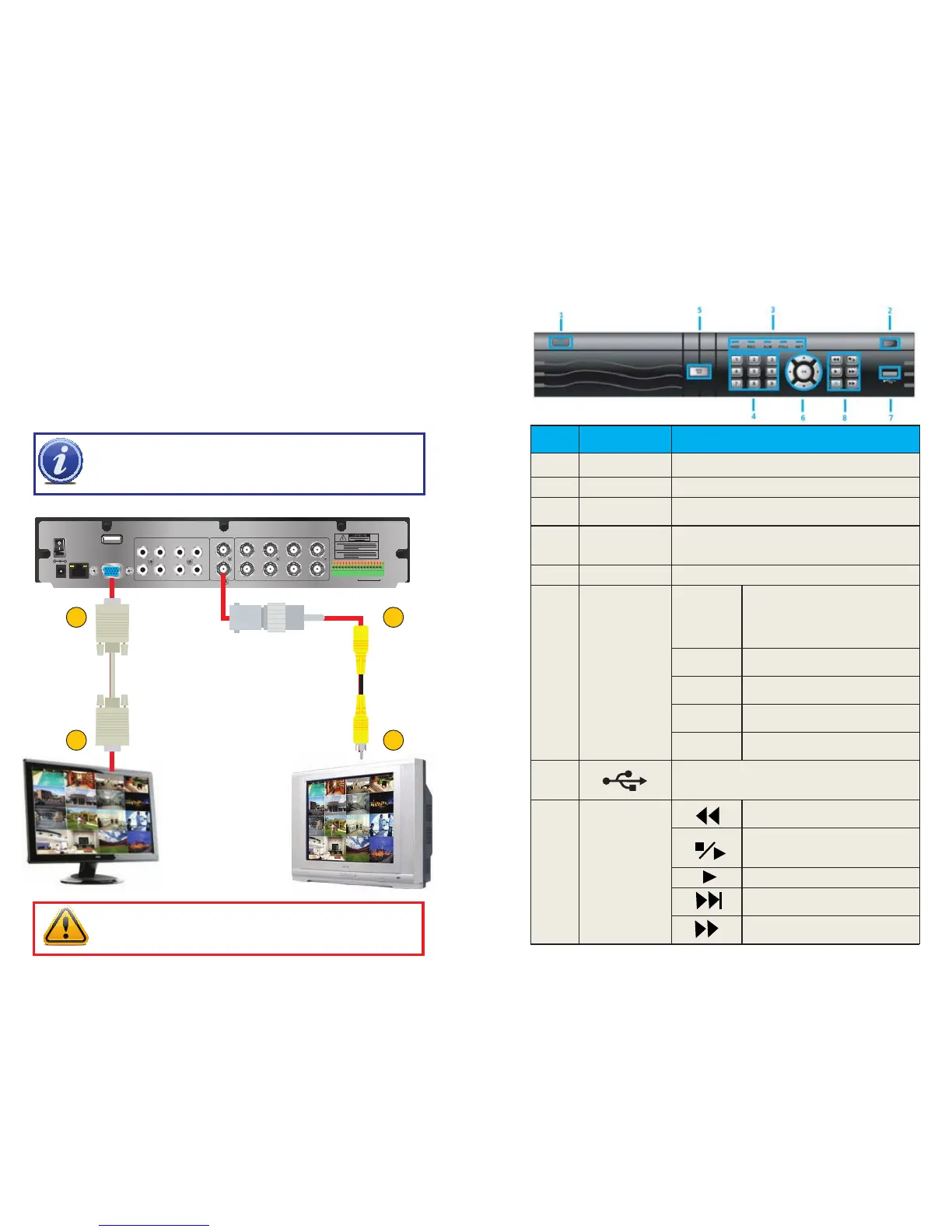

PART 3 - CONNECTING THE DVR TO YOUR DISPLAY PART 4 - DVR CONTROLS: FRONT PANEL
1
2
3
4
5
6
7
8
VGA
USB
AUDIO IN AUDIO VIDEO IN
VIDEO
OUT
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
GND
+12V
485B
485A
GND
NO
COM
GND
ALARM IN
RJ45
ON/OFF
DC +12V
IN
-
+
1
2
3
4
NOTE! To switch back and forth between VGA and TV, use the
Mouse Scroll-Wheel: Forward-switch to VGA
Backward-switch to CVBS (TV).
IMPORTANT! The default resolution of this DVR is 1024x768 pixels. Some
monitors smaller than 19” may have problems displaying this resolution.
Item
Number
Name/Symbol Description
1 STANDBY Press to set the system in standby mode.
2 IR SENSOR IR Receiver for remote control.
3 LED INDICATORS
Shows status of hard drive, recording, alarm, HDD full
and network.
4
CHANNEL/
NUMBERS/
PLAYBACK
Press buttons 1-8 to view the selected channel full-
screen; press buttons 1-0 to input passwords and
user IDs.
5 MENU/EXIT Press to open/close the main menu.
6
NAVIGATION/
OK
OK
In menus, press to confirm
selections; in PTZ mode, press to
change the navigation buttons to
control a connected PTZ camera
(not included)
UP
ARROW
Press to move cursor up; in PTZ
mode, press to pan camera up.
DOWN
ARROW
Press to move cursor down; in PTZ
mode, press to pan camera down.
LEFT
ARROW
Press to move cursor left; in PTZ
mode, press to pan camera left.
RIGHT
ARROW
Press to move cursor right; in PTZ
mode, press to pan camera right.
7
Connect a USB flash drive to the top port for data
backup and firmware upgrades connect a USB
mouse to the bottom port.
8
DURING
PLAYBACK
PRESS:
Increase reverse playback speed
1X, 2X, 4X.
Press to freeze playback to one
frame, then press again to advance
frame-by-frame.
Press to start playback
Press to slow playback speed by
1/2, 1/4, 1/8.
Press to increase forward playback
speed 1X, 2X, 4X, 8X.
