QASAIR Installation Instructions
8

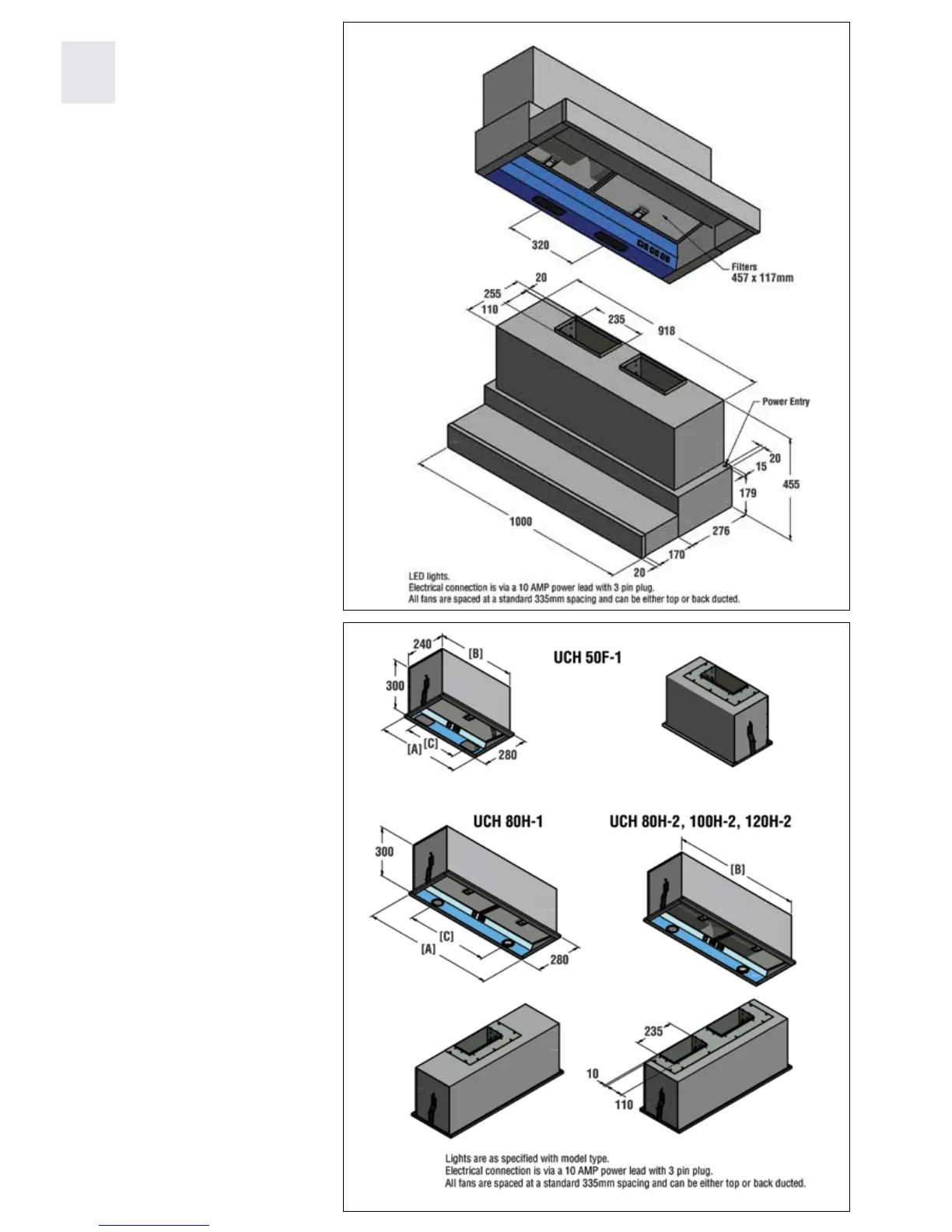

Executive Range - MARCEL
MC 10L-2 Top / Back ducted
Executive Range - UNDERCUPBOARD
UCH 50F-1 Top / Back ducted
UCH 80H-1 Top / Back ducted
UCH 80H-2 Top / Back ducted
UCH 100H-2 Top / Back ducted
UCH 120H-2 Top / Back ducted
A WORD OF WARNING FOR THE UCH
MODELS OVER INDUCTION COOKTOPS.
If using this hood and boiling for long
periods of time (15 minutes plus)
condensation will form on the filters.
Using high speed will cause water to
drop back on to the hot plate. In all cases
use low speed and only one motor even if
the hood has two.
It is better to use a Universal rangehood,
as it has a larger filter area.
