18
Federation Range – 3 FLARE

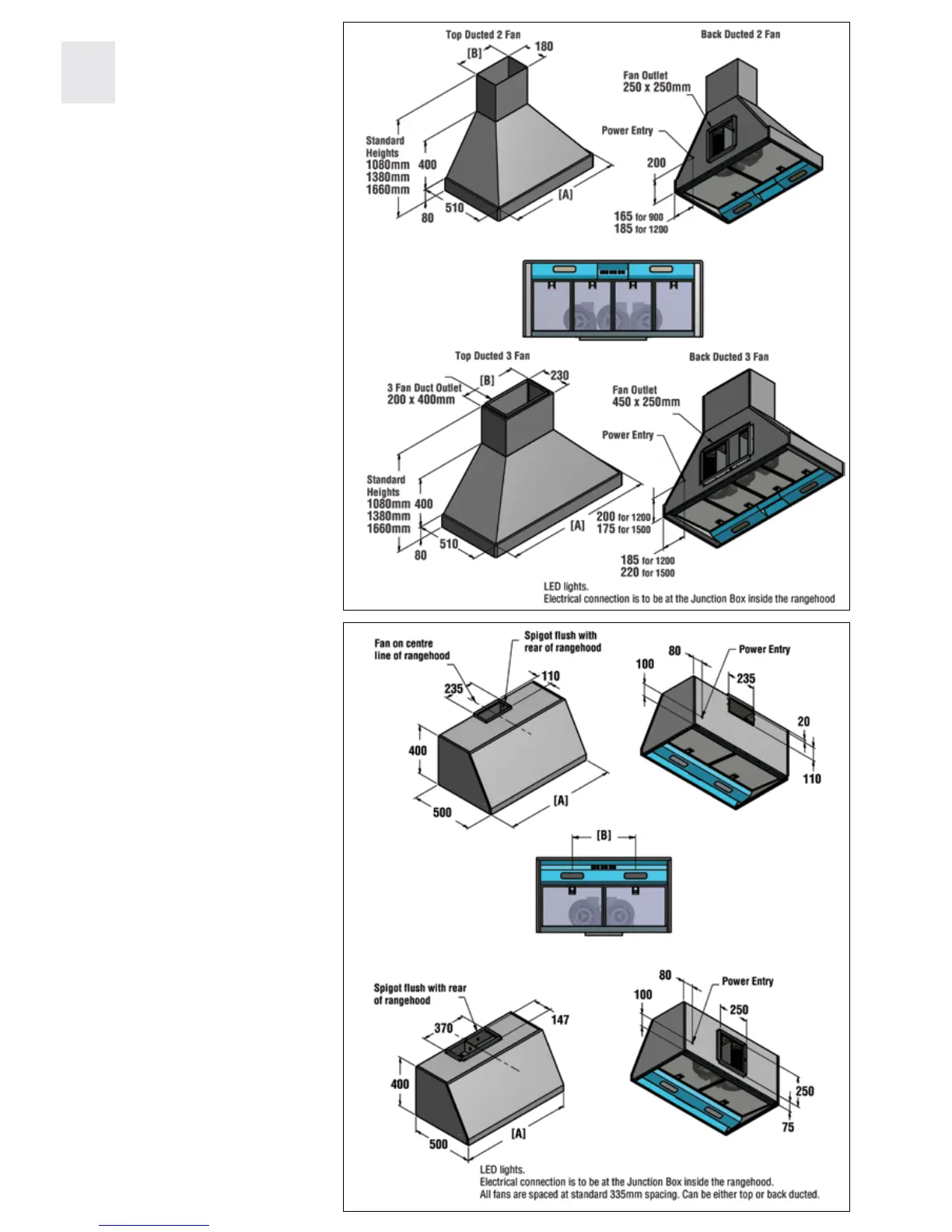

3F 900L-2 Top / Back ducted
3F 1200L-2 Top / Back ducted
• Duct outlet dimensions:
top ducted 300 x 180 and 400 x 180
back duct 250 x 250
• Standard 2 motor ducting will fit
• A transition piece is supplied to fit to the
top of flue to suit 2 motor ducting
3F 1200L-3 Top / Back ducted
3F 1500L-3 Top / Back ducted
• Duct outlet dimensions:
top ducted 400 x 200
back duct 110 x 235 and 250 x 250
• Standard 1 motor and 2 motor ducting
will fit
Federation Range – SINGLE FLARE
SF 900L-1 Top / Back Ducted
• Duct outlet dimension 240 x 110
• Standard single motor ducting will fit
• Top ducted model is supplied with a DLE
S/S Flue
SF 900L-2 Top / Back Ducted
SF 1200L-2 Top / Back Ducted
• Duct outlet dimensions:
top ducted 370 x 150
back ducted 250 x 250
• Standard 2 motor ducting will fit
• Top model is supplied with a DLE-2 S/S
Flue
