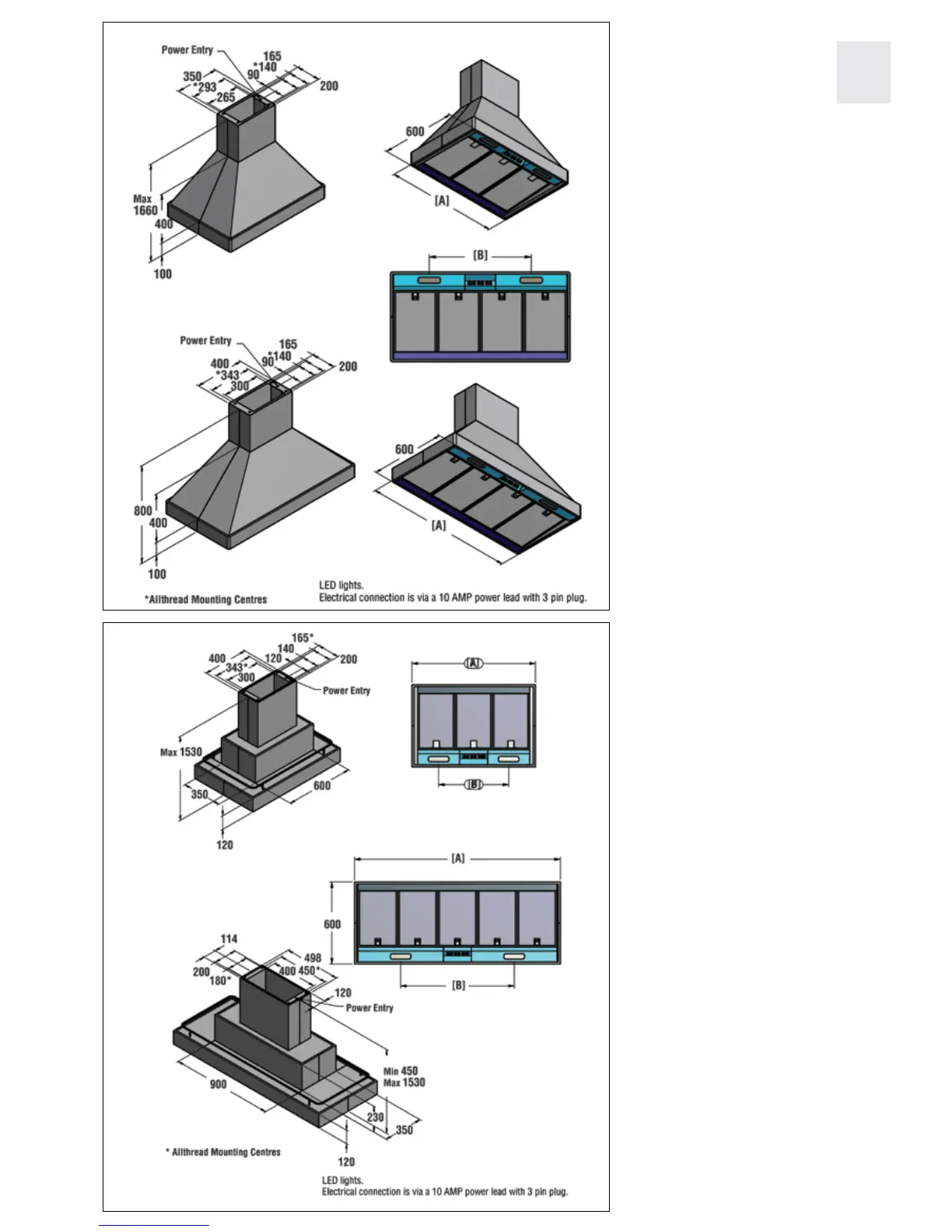

QASAIR Installation Instructions

Imperial Range – VISCOUNT

VIS 900L-2 Island Hood

VIS 1200L-2 Island Hood

VIS 1200L-3 Island Hood

VIS 1500L-3 Island Hood

• Duct outlet dimensions:

twin – duct 300 x 165mm

triple – duct 400 x 200mm

• Standard 3 motor ducting will fit

• Transition piece supplied with Hood to

DL-2 ducting

Federation Range – 4 FLARE

4F 900L-2 Island Hood

4F 1200L-2 Island Hood

• Duct outlet dimension 265 x 90mm and

300 x 90mm

• Standard 3 motor ducting will fit
