QASAIR Installation Instructions
26

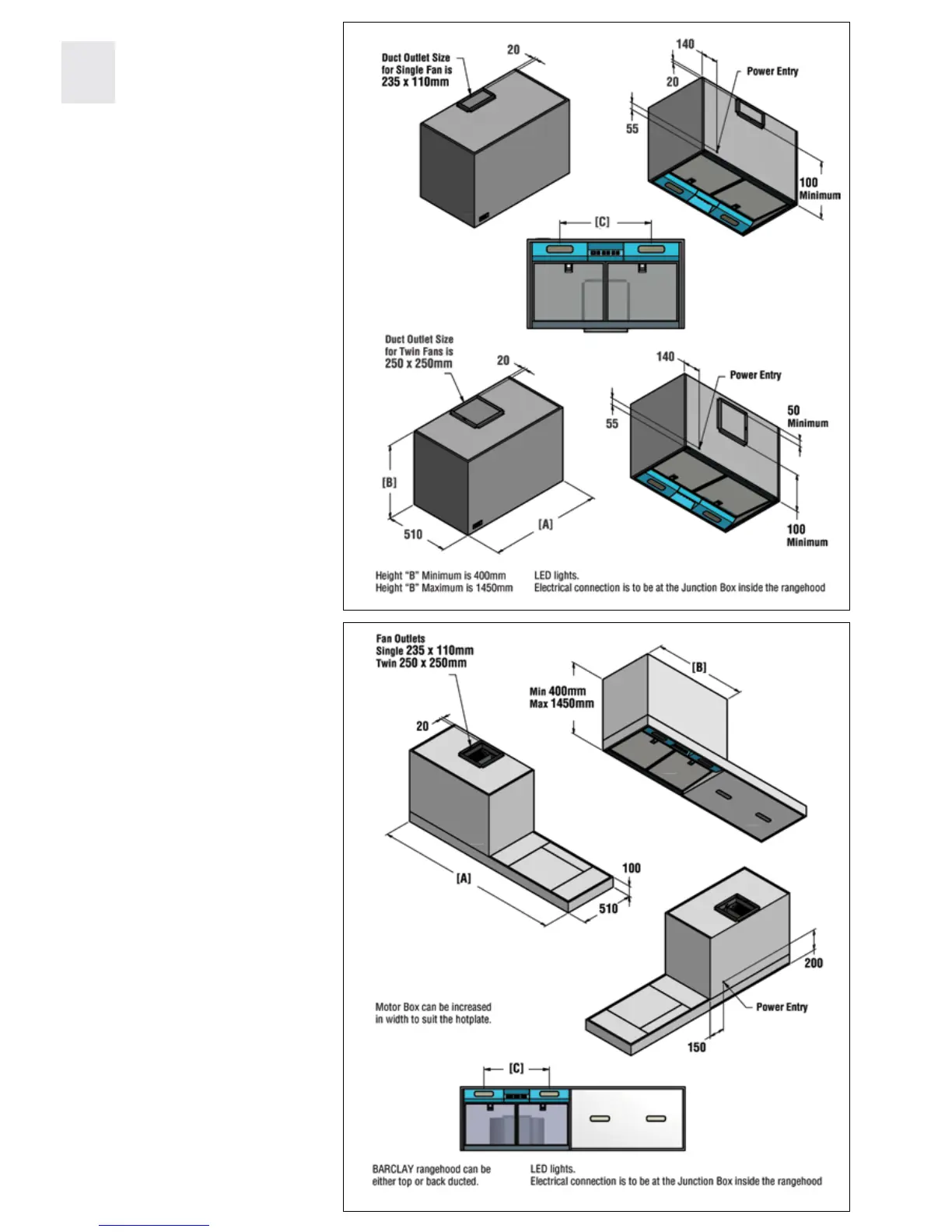

Argyle Range – BENTON
BRH 600L-1 Top / Back Ducted
BRH 900L-1 Top / Back Ducted
BRH 900L-2 Top / Back Ducted
BRH 1000L-2 Top / Back Ducted
BRH 1200L-2 Top / Back Ducted
• Duct outlets dimensions:
single – duct 235 x 110mm
twin – duct 250 square
• Standard single motor ducting will fit or
250sq for twin motor
Gallery Range – BARCLAY
BAR 1800/9L-2 Top / Back Ducted
BAR 2400/9L-2 Top / Back Ducted
BAR 2400/10L-2 Top / Back Ducted
BAR 2400/12L-2 Top / Back Ducted
• Duct outlets dimensions:
single – duct 235 x 110mm
twin – duct 250 square
• Standard single motor ducting will fit or
250sq for twin motor
