Manual for Advance 6T series

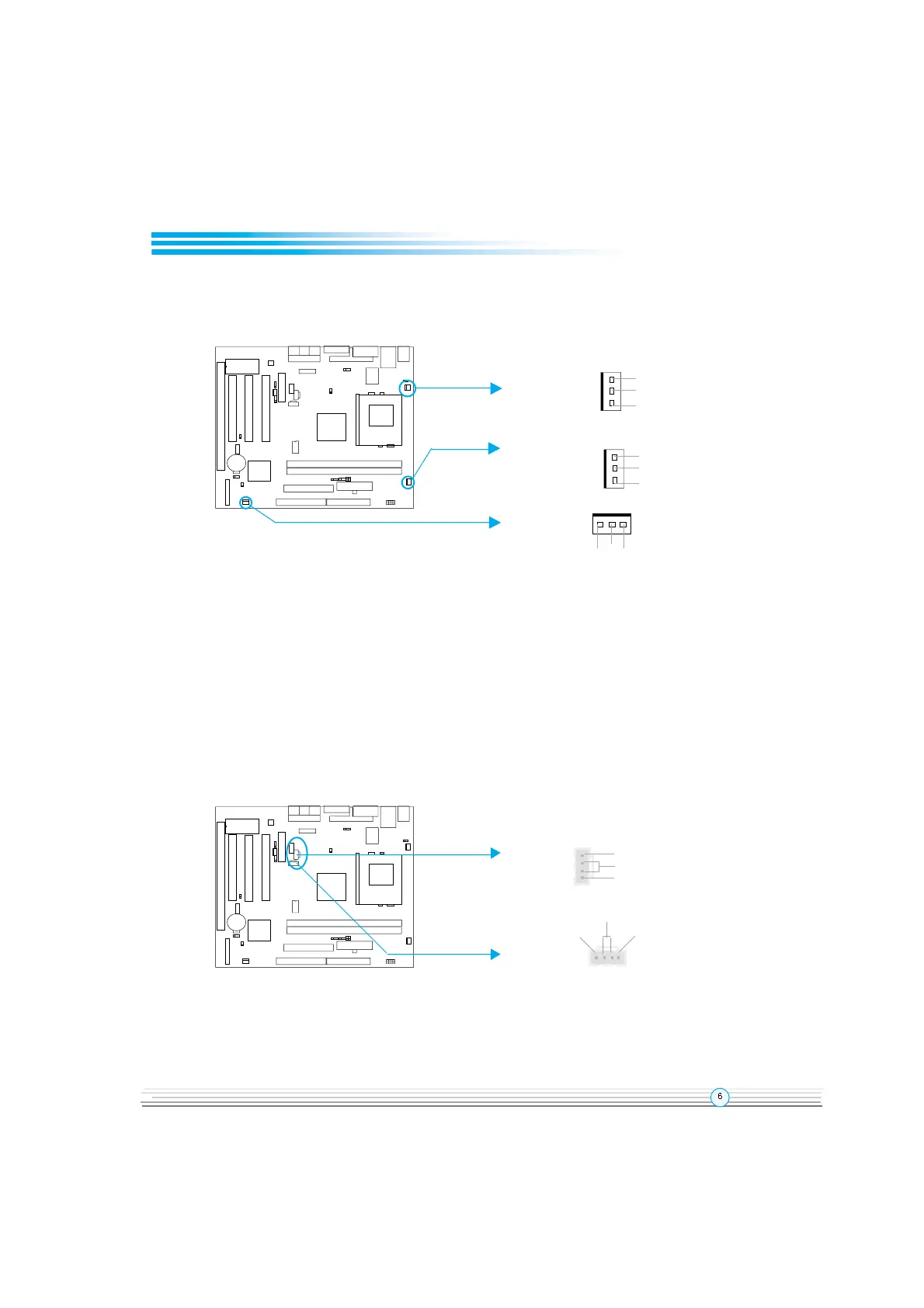

Fan Connectors (CPUFAN, CHSFAN, BAKFAN)
The fan speeds of CPUFAN and CHSFAN can be detected and viewed in PC HEALTH
section of the BIOS. These fans will be automatically turned off after the system enters
suspend mode.
Internal Audio Connectors (CD_IN, MODEM)
CD_IN connector allows you to receive audio input from such sound sources as a CD-ROM,
TV tuner, or MPEG card. The MODEM connector allows the onboard audio to interface with
a voice modem card with a similar connector. It also allows the sharing of mono_in (such as
a phone) and mono_out (such as a speaker) between the onboard audio and the voice
modem card.
Chapter 2
SENSE
GND
+12V
SENSE
CPUFAN
+12V
NC
BAKFAN
GND
+12V
CHSFAN
GND
1
1
1
CD_IN
Common
Right Channel Left Channel
Mono-Out (to Modem)
GND
MODEM
Phone-In (from Modem)
1
1
