- 9-
ELECTRICAL AND MOTOR SPECIFICATIONS
C
ONNECT TILE SAW AS CLOSE AS POSSIBLE TO POWER SOURCE.

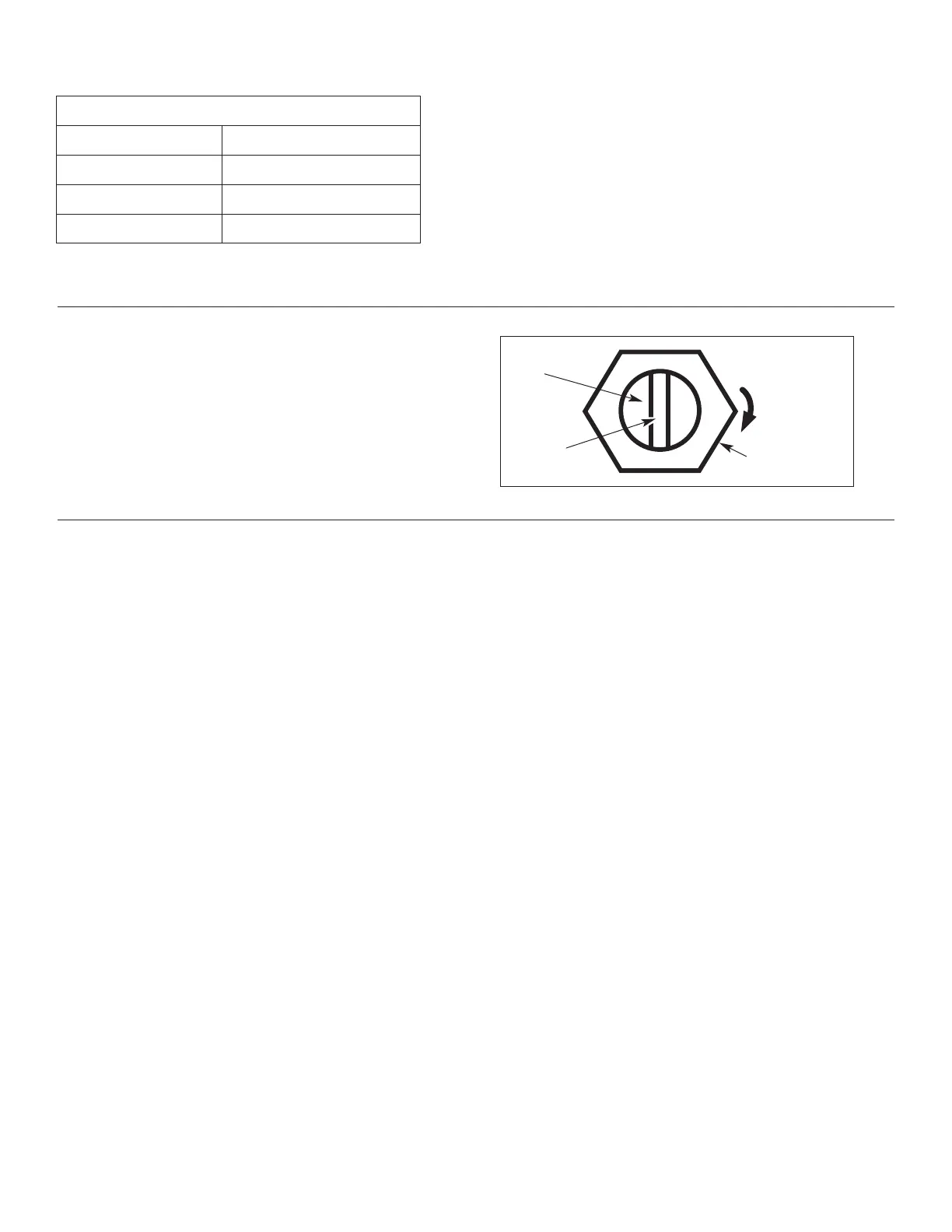

BLADE REMOVAL INSTRUCTIONS
TO REMOVE BLADE
1. Use flat blade screwdriver in slot to hold arbor shaft.
2. Use Hex Wrench (furnished) to remove hex nut
blade retainer
NOTE: Turn hex nut CLOCKWISE to loosen nut.
TROUBLESHOOTING
OVERHEATING OF SAW:
A. Turn saw off and let it rest until motor is cool to the touch.
B. Check and clean the ventilation slots, removing blockage and dirt.
THE SAW DOES NOT START:
A. Check that power cord is properly plugged in.
B. No power from outlet.
C. Switch is damaged.
1
20 VOLT MOTOR SPECIFICATIONS
Volts 120 V
Cycle 60 CYCLES
RPM n
0
3600 RPM
Amps 4 Amps
Slot for
screwdriver
Turn this
direction
to remove
blade
Blade retainer
hex nut
Arbor Shaft
60087_Manual.qxd:60087_Manual 4/23/09 4:04 PM Page 9
