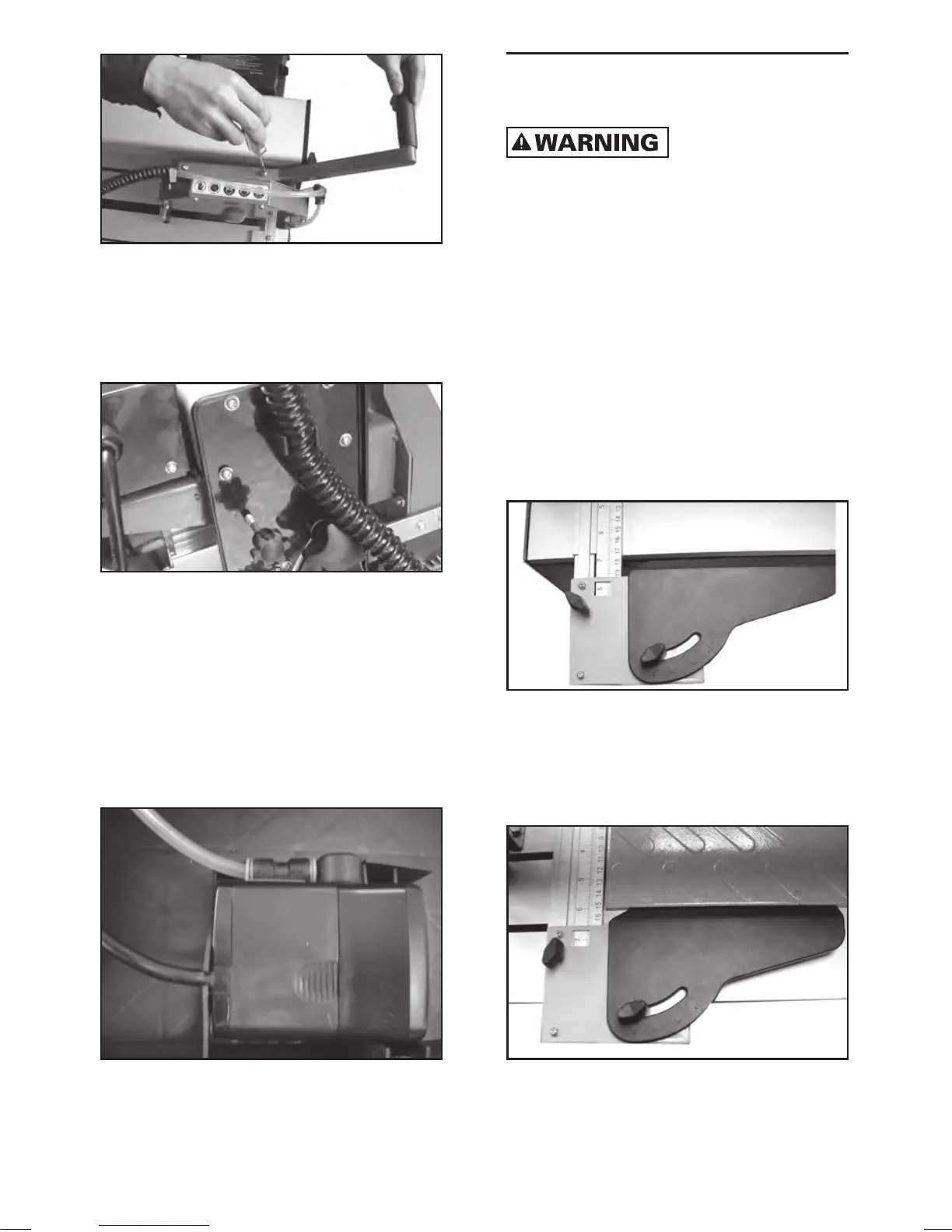

– 7 –
FIGURE 7
8. The motor trolley is secured during
shipment, please loosen knob before using
(Fig 8).
FIGURE 8
FILLING THE WATER TRAY
AND DRAINING
1. Fill the tray with water. Do not add
chemicals or detergents to the water.
2. Remove the plug from the bottom of the tray,
the water will flow out or you can remove
the tray and pour the water out (Fig 9).
FIGURE 9
OPERATION
USE ONLY
CONTINUOUS RIM BLADES WITH THIS SAW.
DO NOT USE SEGMENTED, “TURBO” BLADES,
WOOD SAWING BLADES, BLADES WITH
OPENINGS, OR ANY OTHER CUTTING DEVICES
WITH THIS TILE SAW. USING THESE BLADES
COULD RESULT IN SERIOUS PERSONAL
INJURY AND DAMAGE TO THE SAW.
MAKING A STRAIGHT CUT
1. Push the motor trolley away from the
operator until it reaches the stroke limit.
2. Position the tile on the cutting table.
3. Properly set the measuring guide and
squaring tool (Fig 10).
FIGURE 10
4. Adjust the guides as needed so that the tile
rests against the measuring guide and
squaring tool (Fig 11).
FIGURE 11
