Qlogic QConvergeConsole 2400 Series User Manual

3–Getting Started
Connecting to a Host Server
SN0054669-00 C 3-3
Figure 3-2 shows an example of entering the Web address of the
QConvergeConsole server.

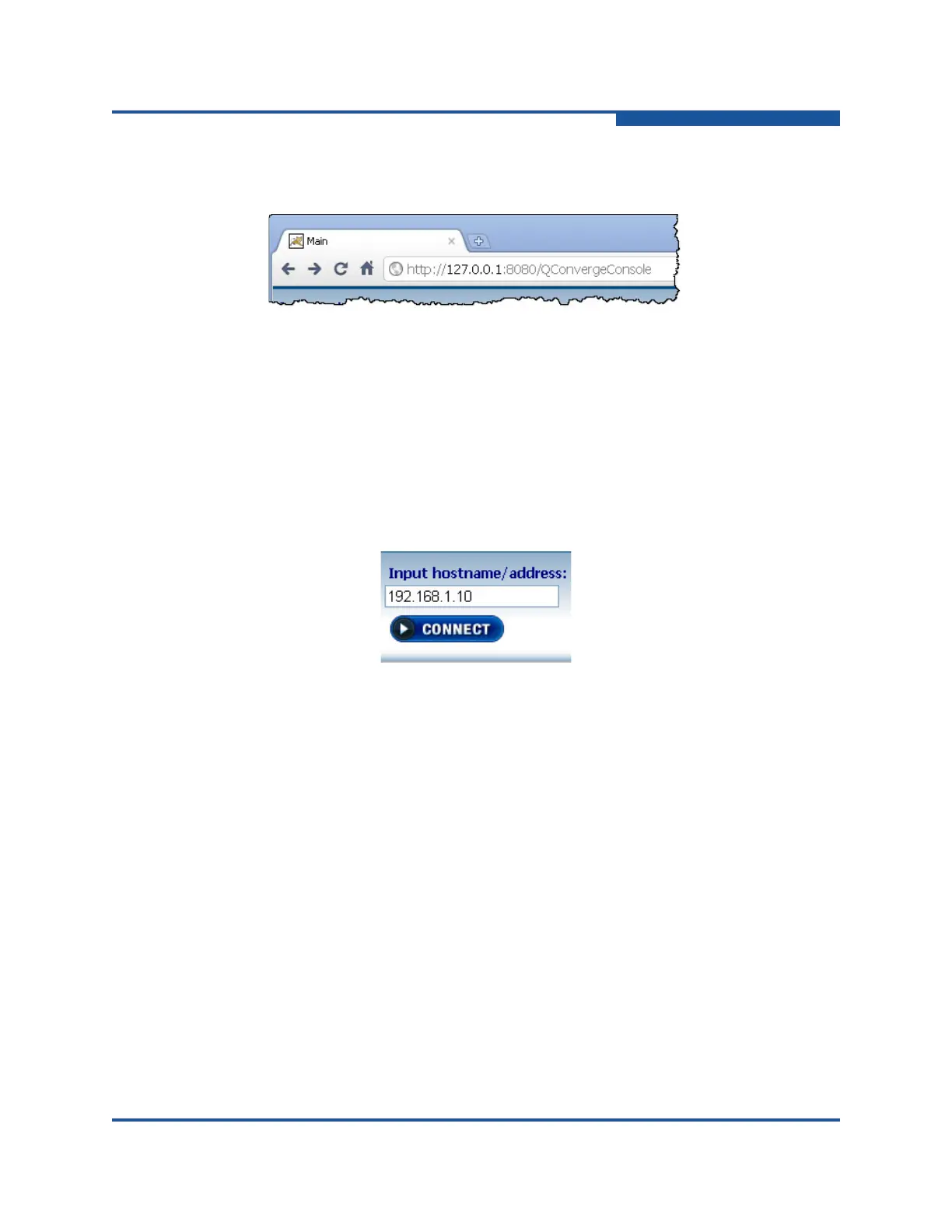

Figure 3-2. Entering QConvergeConsole Web Address (Example)
The initial window of QConvergeConsole opens, as shown in Figure 3-1.
Connecting to a Host Server
To connect to a host server from the QConvergeConsole main window:
1. Locate the Input hostname/address box in the upper-left corner of the
QConvergeConsole window.
2. Type the host name or its IP address; Figure 3-3 shows an example.
Figure 3-3. Hostname or IP Address Input (Example)
3. To initiate the connection, click Connect.
If successful, the host and its adapters appear in the system tree.
Exiting QConvergeConsole
To exit the utility, open the File menu on the QConvergeConsole main window,
and then click Exit.
Getting Help
This section provides the following information:
 “Browsing Help Contents” on page 3-4
 “Viewing QConvergeConsole Version Details” on page 3-5
