Atmospheric Oil Mist Detection System
MULTIPLEX
AM8/JANUARY 2015
EMAIL qmi@oilmist.com WEBSITE www.oilmist.com 4 East Barnet Road, London, England, EN4 8RW TEL +44 (0)20 7328 3121
Installation Part2-7
SCHEMATIC OF POSITIONING OF SENSORS AND BEST
PRACTICE

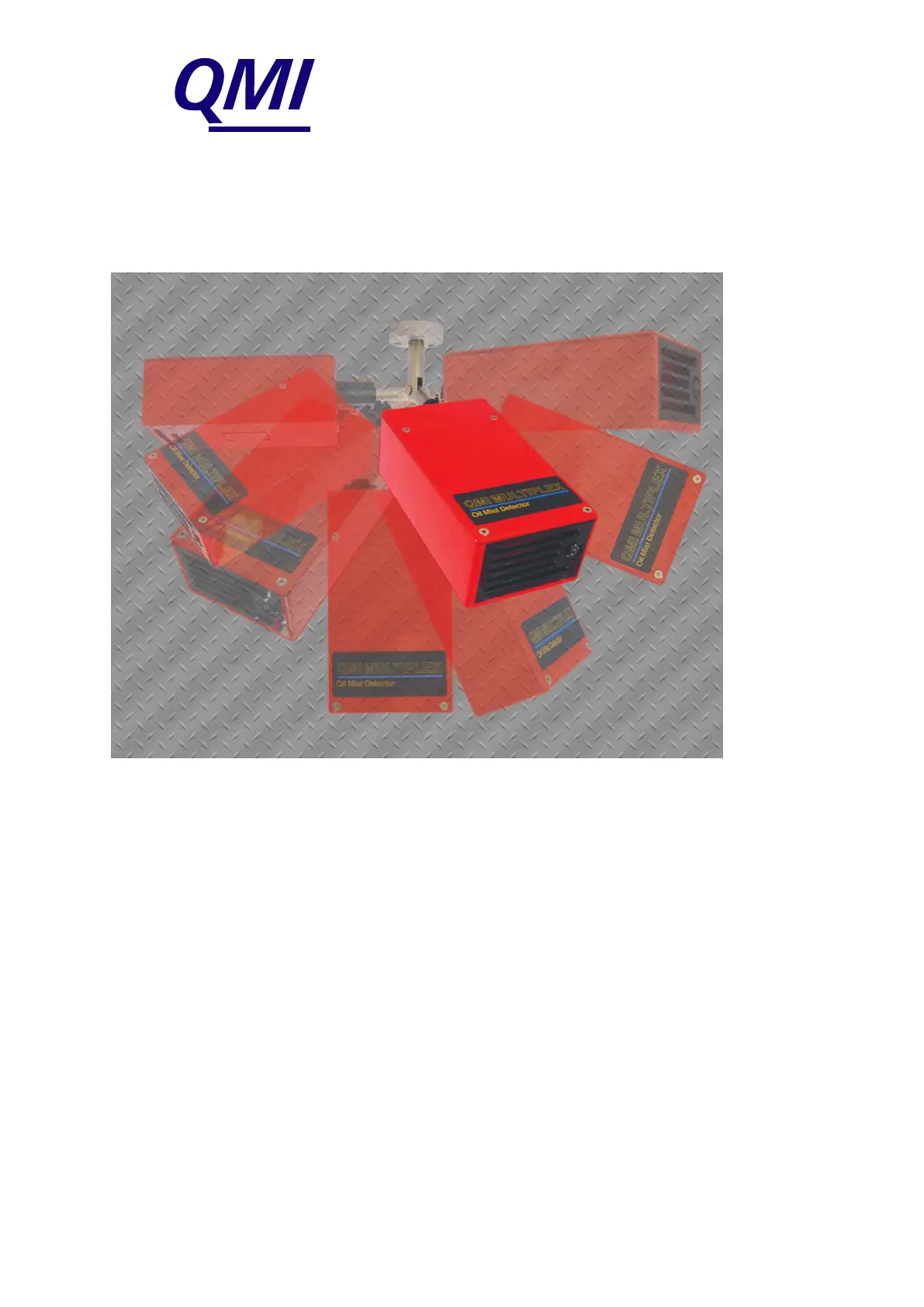

The Articulated Joint allows the Sensor to be positioned mid airflow.
See Part 1-9 for the drawing of the Sensor and Articulated Joint.
BEST PRACTICE
Until the ship is in operation, to avoid contamination of the lenses after installation,
cover Sensors with a plastic bag. This will prevent paint or other materials dirtying or
damaging the lenses, blocking the Sensor louvers and fan. This outcome permanently
damages the Sensors and may require Sensors to be returned to QMI for repair.
When oil mist detection system is in operation:
· Do not conduct painting in the space with the Sensors
· Never cover Sensors
When Sensors are installed but not in operation:
· Keep Sensors in sealed plastic bag
