it will have two screws. A 4-bay NAS will have four.

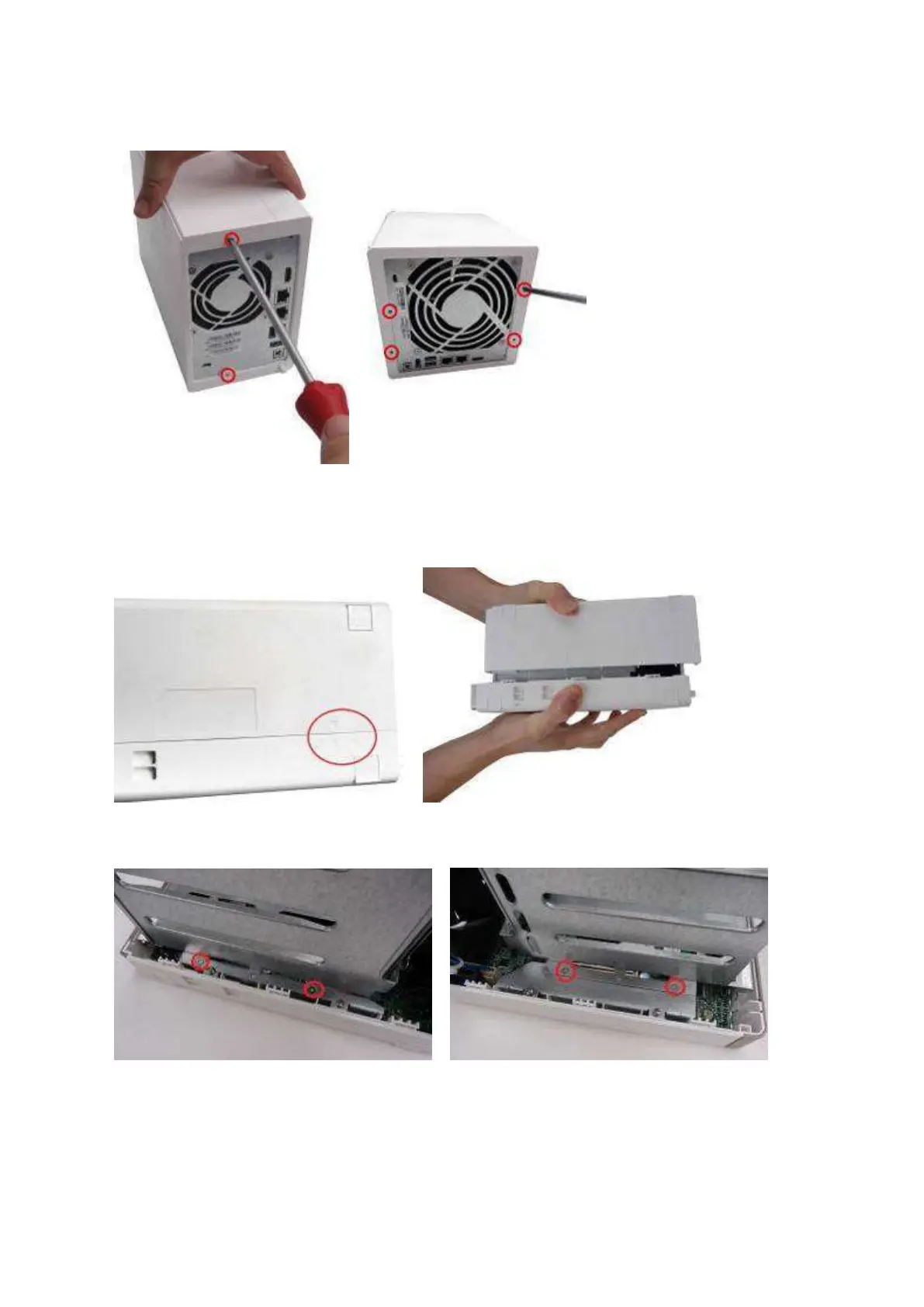

2. Gently remove the case cover of the NAS by sliding it apart (see the underside of the
NAS for visual indicators of the NAS case being locked/unlocked)
3. Remove the four inner screws (two on each side) of the hard drive cage.
4. If it is a 4-bay NAS, you will also need to remove two screws on the top of the hard drive
cage.
