QNAP TS-251+ - TS-453 Mini

59
7.1.2. TS-453Mini

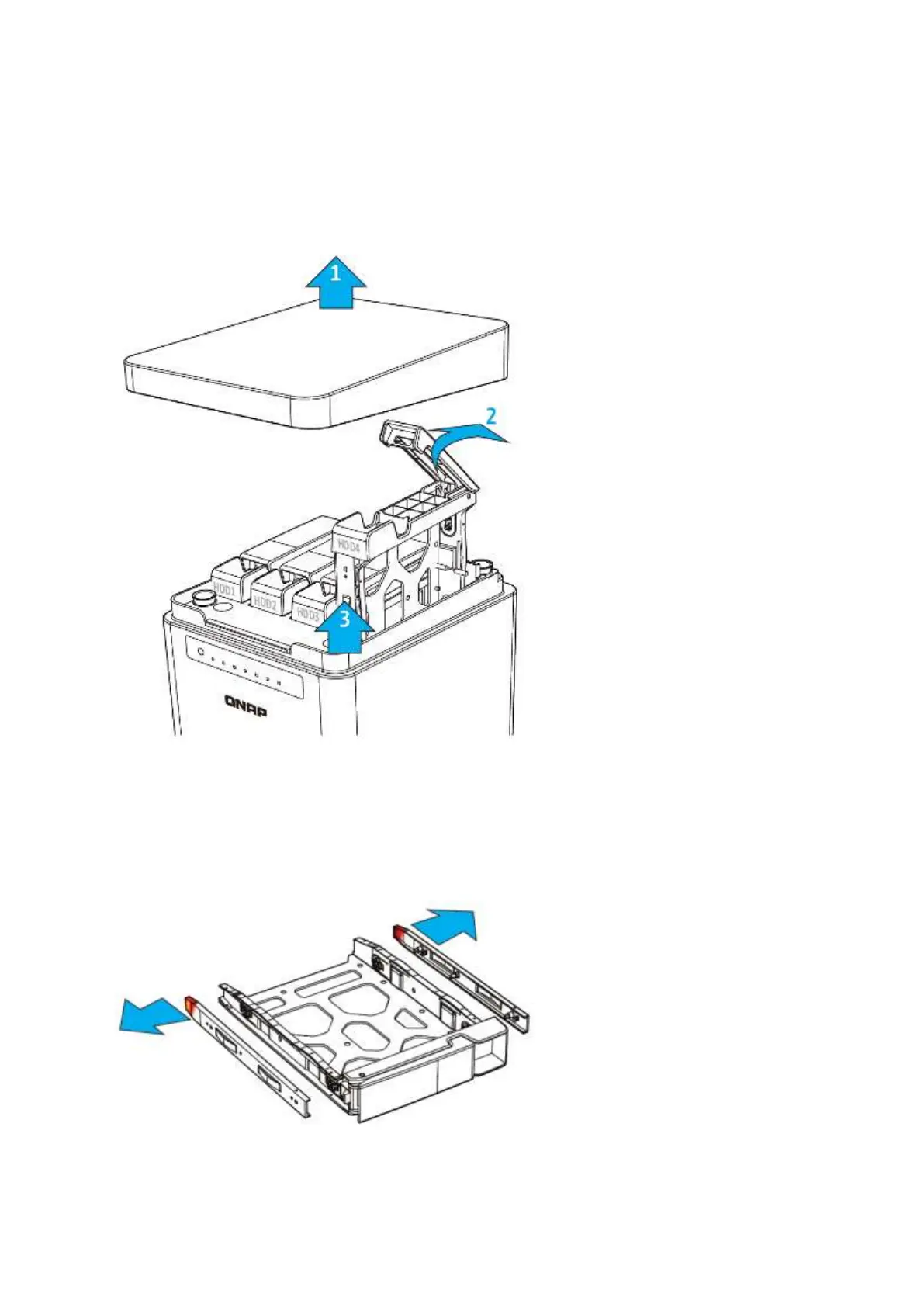

1. Remove the case cover. Open and remove the hard drive tray.
2. Install the HDD:
a. For 3.5” HDDs, remove both brackets (pinch the end marked “pull” to pull and
separate the bracket) from the tray. Place the hard drive on the tray and clip-in
both brackets.
