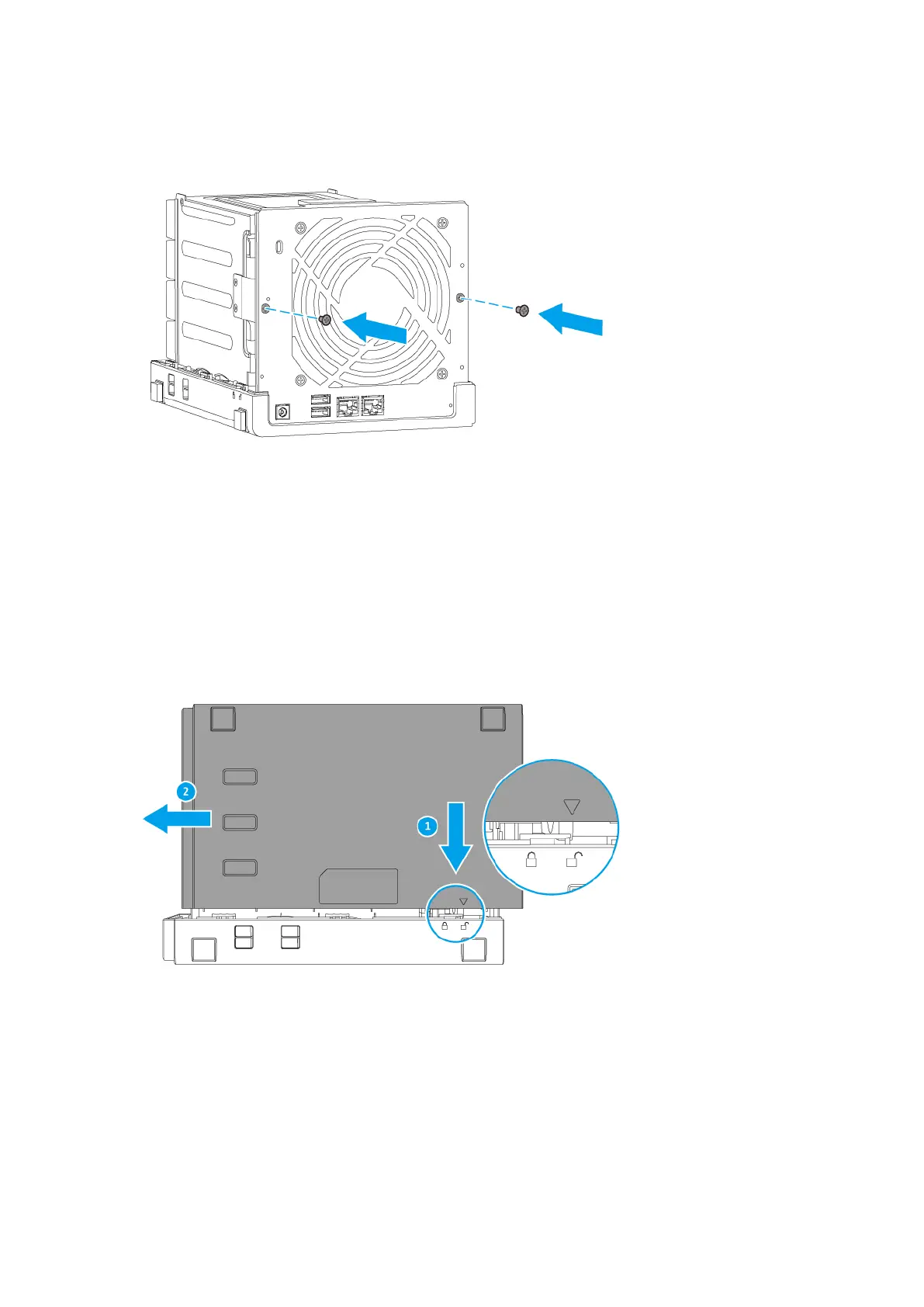

14. Attach the case cover.
a. Align the triangle icon on the case cover with the unlock icon on the chassis.
b. Slide the case cover onto the chassis.
c. Slide the case cover to the left so that the triangle icon is aligned with the lock icon.
d. Place the NAS on its bottom side.
e. Attach the screws that secure the case cover to the chassis.
TS-x31P2 User Guide
Installation and Configuration 22
