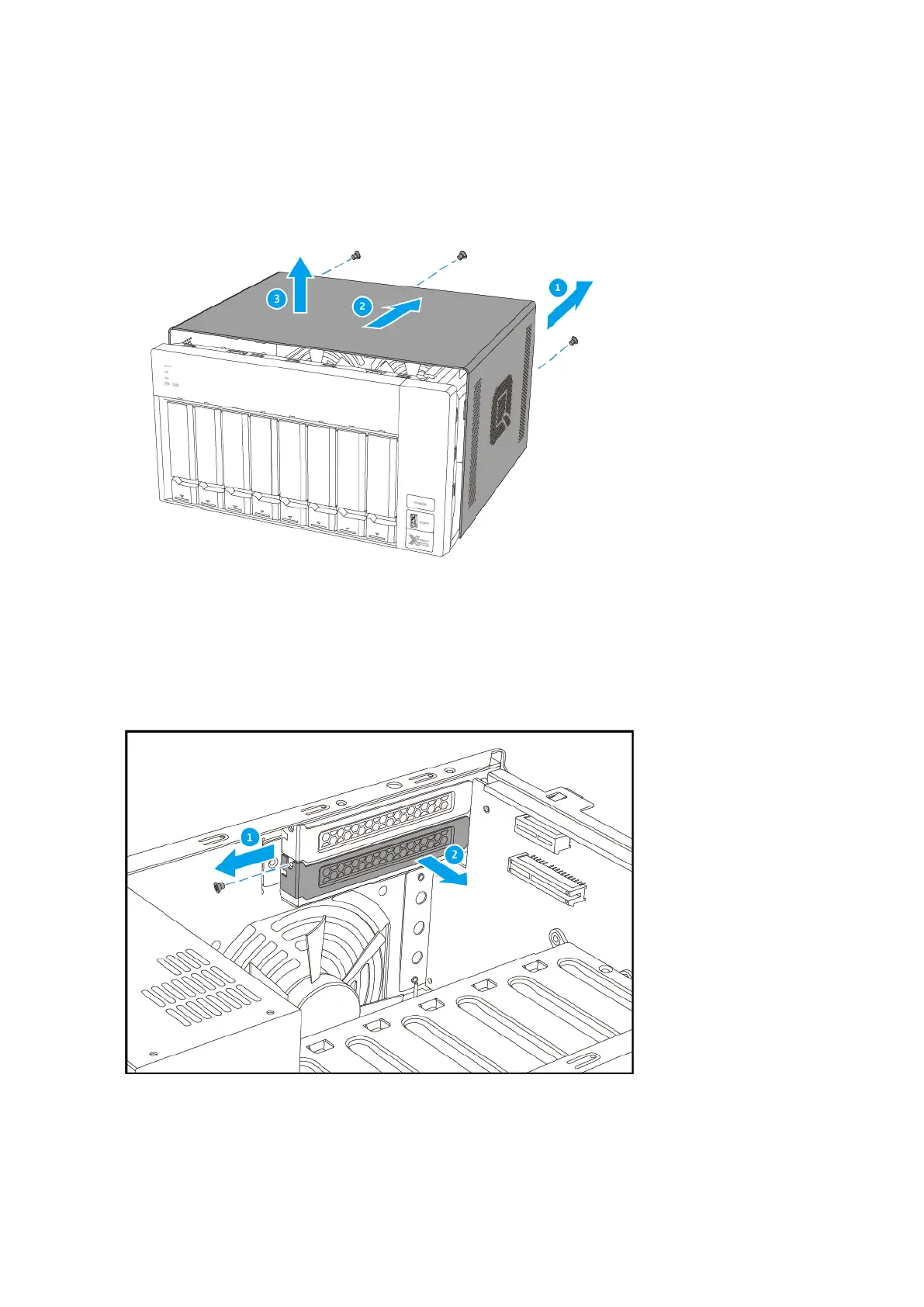

a. Remove the screws that secure the cover to the chassis.
b. Slide the cover back.
c. Pull the cover up until it completely detaches from the chassis.
6. Remove the PCIe cover.
a. Remove the screw that secures the cover to the chassis.
b. Pull the cover away from the slot.
7. Optional: Attach the QNAP bracket to the expansion card.
a. Remove all screws of the existing bracket.
TS-832X User Guide
Installation and Configuration 16
