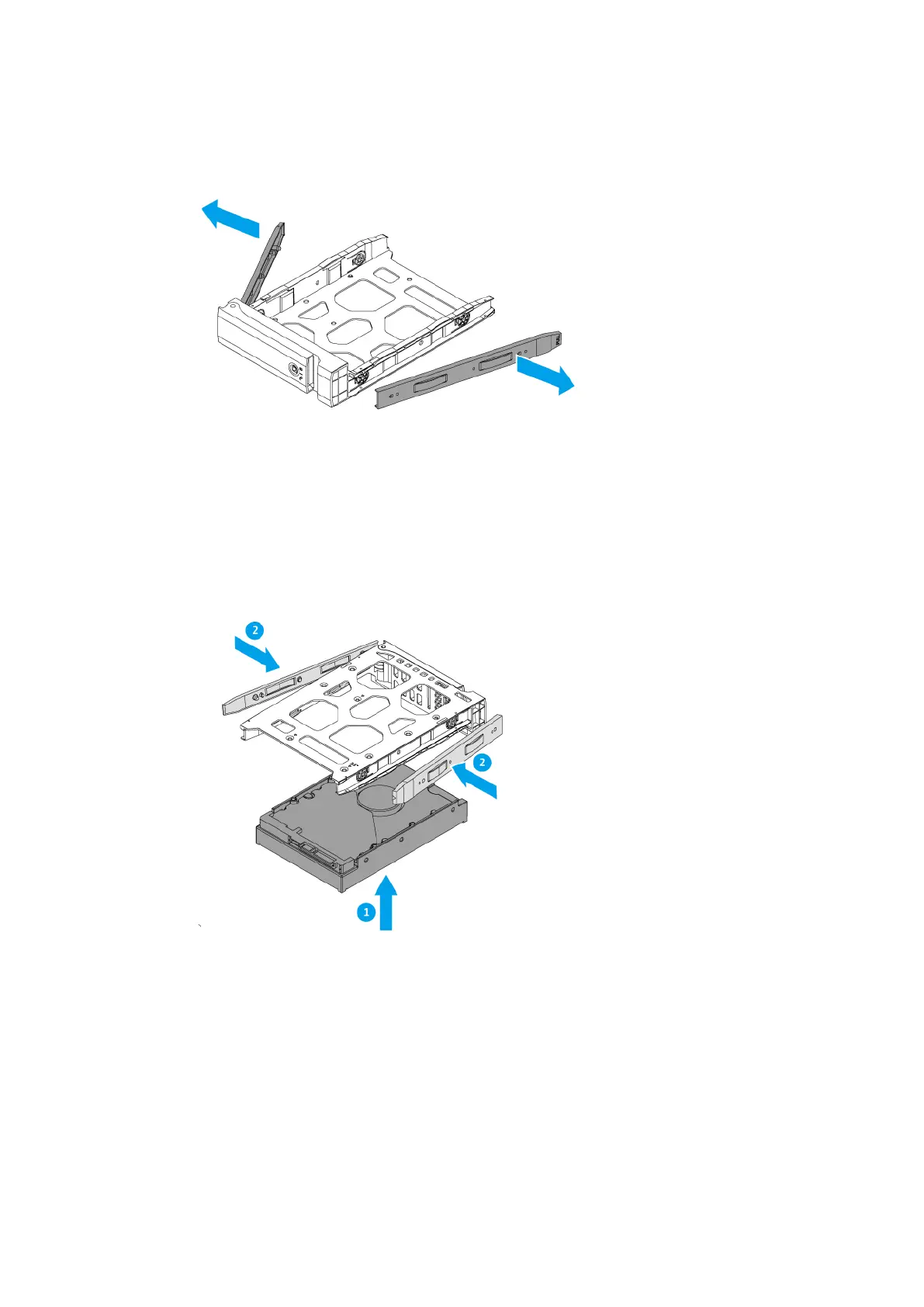

b. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on
the sides of the tray.
c. Attach the fastening panels to lock the drive to the tray.
d. Optional: Attach the screws to further secure the drive.
4. Load the tray into the bay.
a. Insert the tray into the bay.
TS-855X User Guide
Installation and Conguration 15
