Moving fan blades: Keep your hands and other body parts away from moving fan
blades.
•
Other moving components: Keep your hands and other body parts away from other
moving components.
1. Power o the device.
2. Disconnect the power cord from the electrical outlet.
3. Disconnect all cables and external attachments.

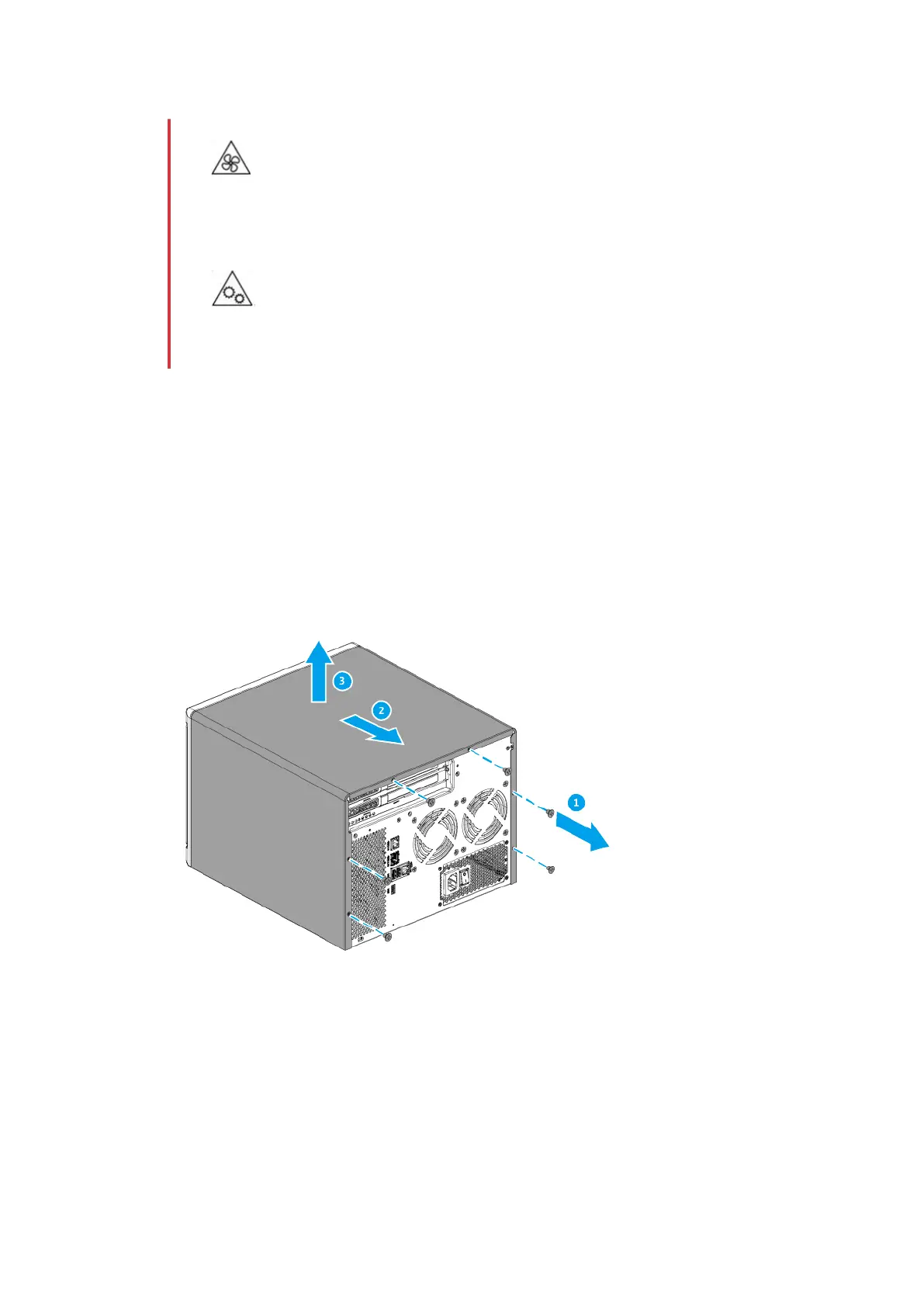

4. Remove the case cover.
a. Loosen the screws.
b. Slide the cover back.
c. Lift the cover o the device.
5. Remove the fan module.
a. Disconnect the fan cable from the system board.
b. Remove the screw that secures the module to the chassis.
c. Press the clip and then pull the module away from the system board.
