25
3. Insert the hard drive trays into the NAS all the way to the rear and push the lever back
until you hear a click then pull up the tray lock to ensure the tray is completely fixed in
the system.
6.2 Install M.2 SSDs
Follow the below steps to install M.2 SSDs in the NAS.

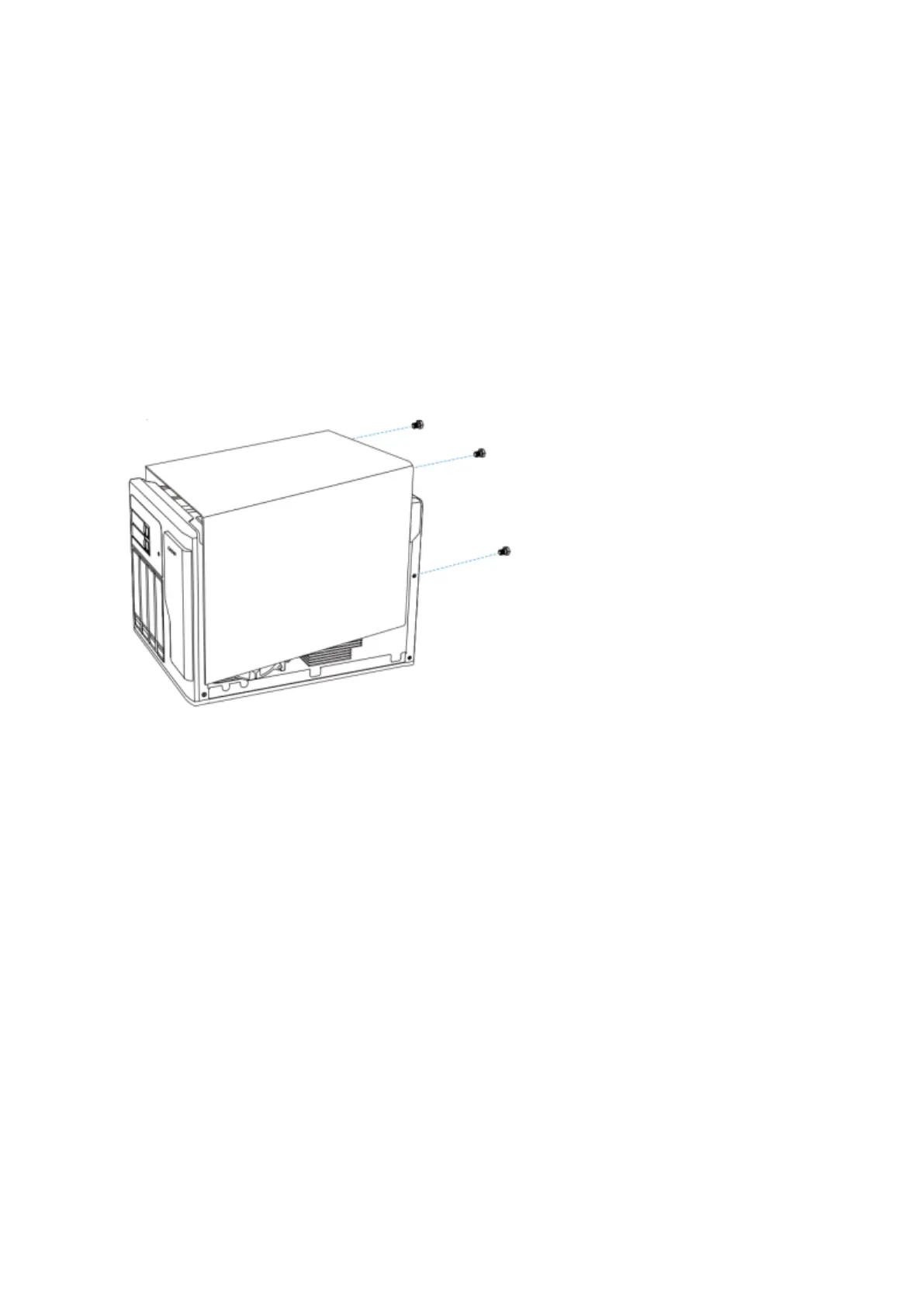

1. Loosen the screws from the rear to remove the cover (TVS-682 series: 3 screws;
TVS-882 series: 6 screws; TVS-1282 series: 7 screws.)
The above figure is shown as demonstration only.
2. Unplug the cable that is connected to the motherboard, loosen the screw on the fan
module, press down the hook and then pull out the module.
