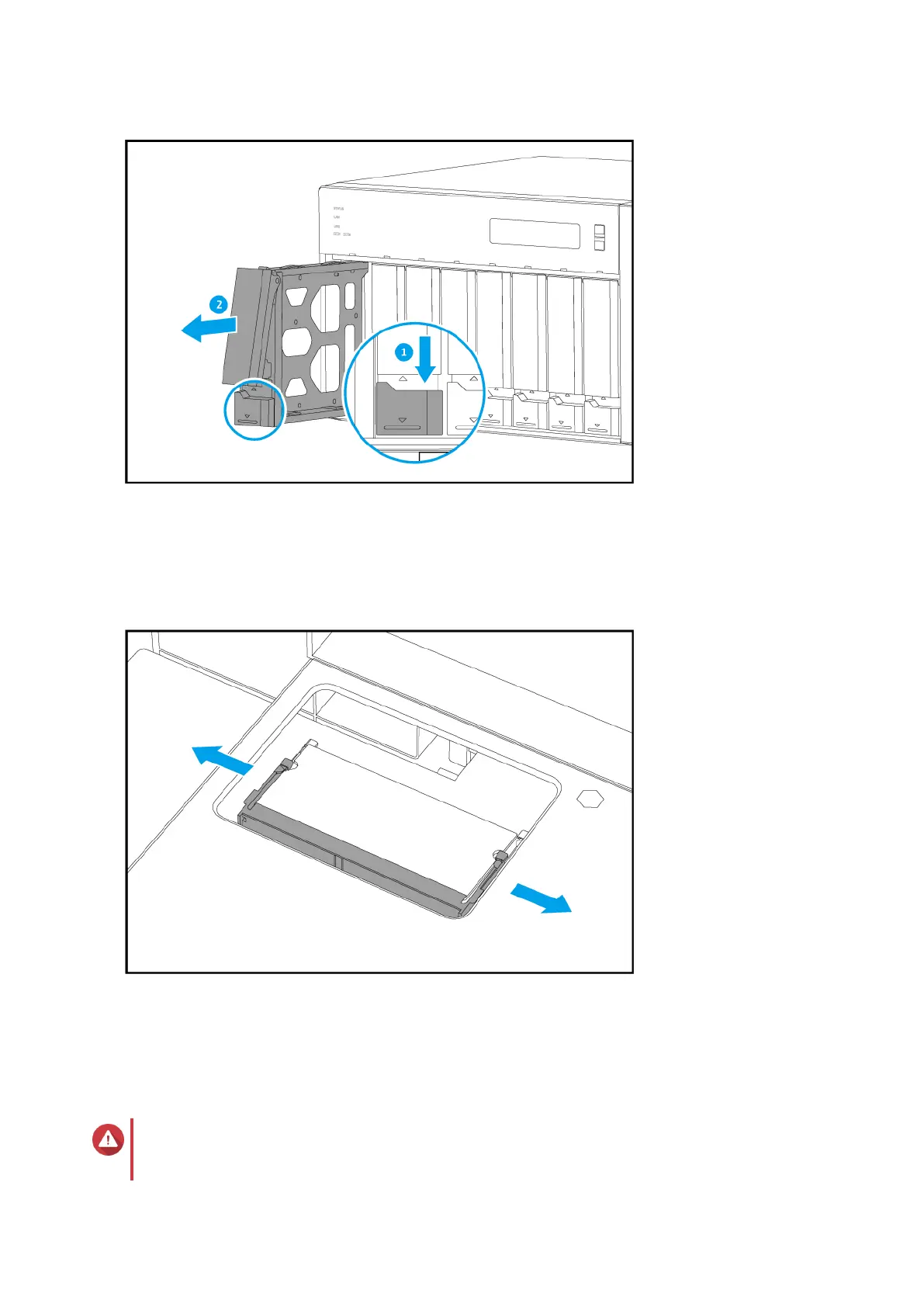

5. Position the NAS on its right side.
6. Remove an existing module.
a. Push the retention clips outward simultaneously to release the module.
b. Verify that the module has tilted upward and is completely released from the slot.
Attempting to remove a module that is not completely released may damage the module and the
motherboard.
c. Hold the edges of the module and carefully pull it out of the slot.
Warning
Attempting to remove a module that is not completely released may damage the module and
the motherboard.
TVS-x72XT User Guide
Installation and Configuration 36
