No. Component No. Component
1 Status LED 7 LCD select button
2 LAN LED 8 Drive LEDs
3 USB LED 9 Power button
4 M.2 SSD LEDs 10 USB One Touch Copy button
5 LCD panel 11 USB 3.2 Gen 2 Type-A port
6 LCD enter button - -

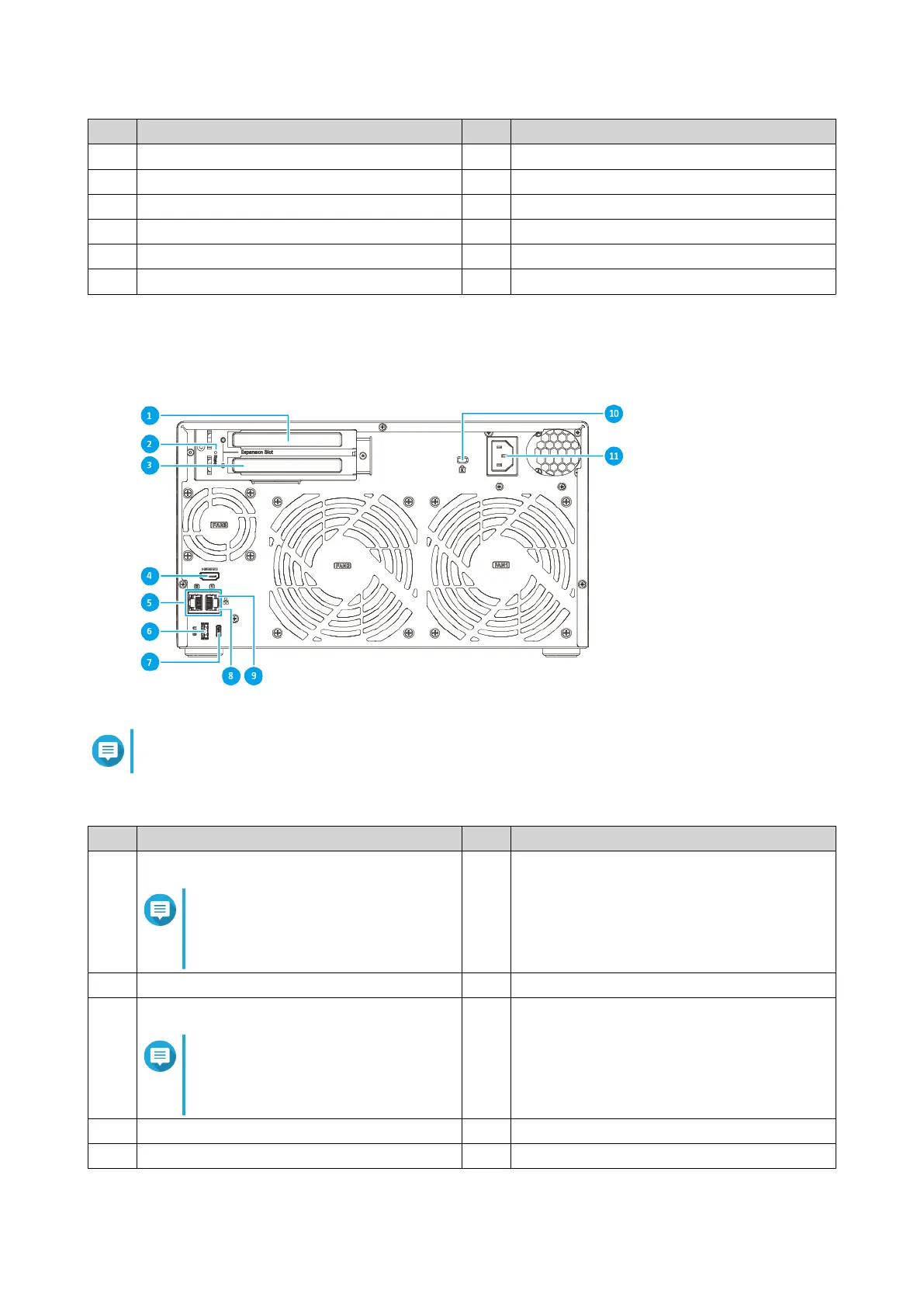

Rear Panel
Note
This image shows the TVS-h874.
No. Component No. Component
1 PCIe full-height cover
Note
This is a full-height cover on the
TVS-h674 and TVS-h874, and a
low-prole cover on the TVS-h474.
7 USB 3.2 Gen 2 Type-C port
2 Reset button 8 2.5 Gigabit Ethernet speed LED
3 PCIe full-height cover
Note
This is a full-height cover on the
TVS-h674 and TVS-h874, and a
low-prole cover on the TVS-h474.
9 2.5 Gigabit Ethernet activity LED
4 HDMI port 10 Kensington security slot
5 2.5 Gigabit Ethernet ports (RJ45) 11 Power input
