TD-000350-00-E

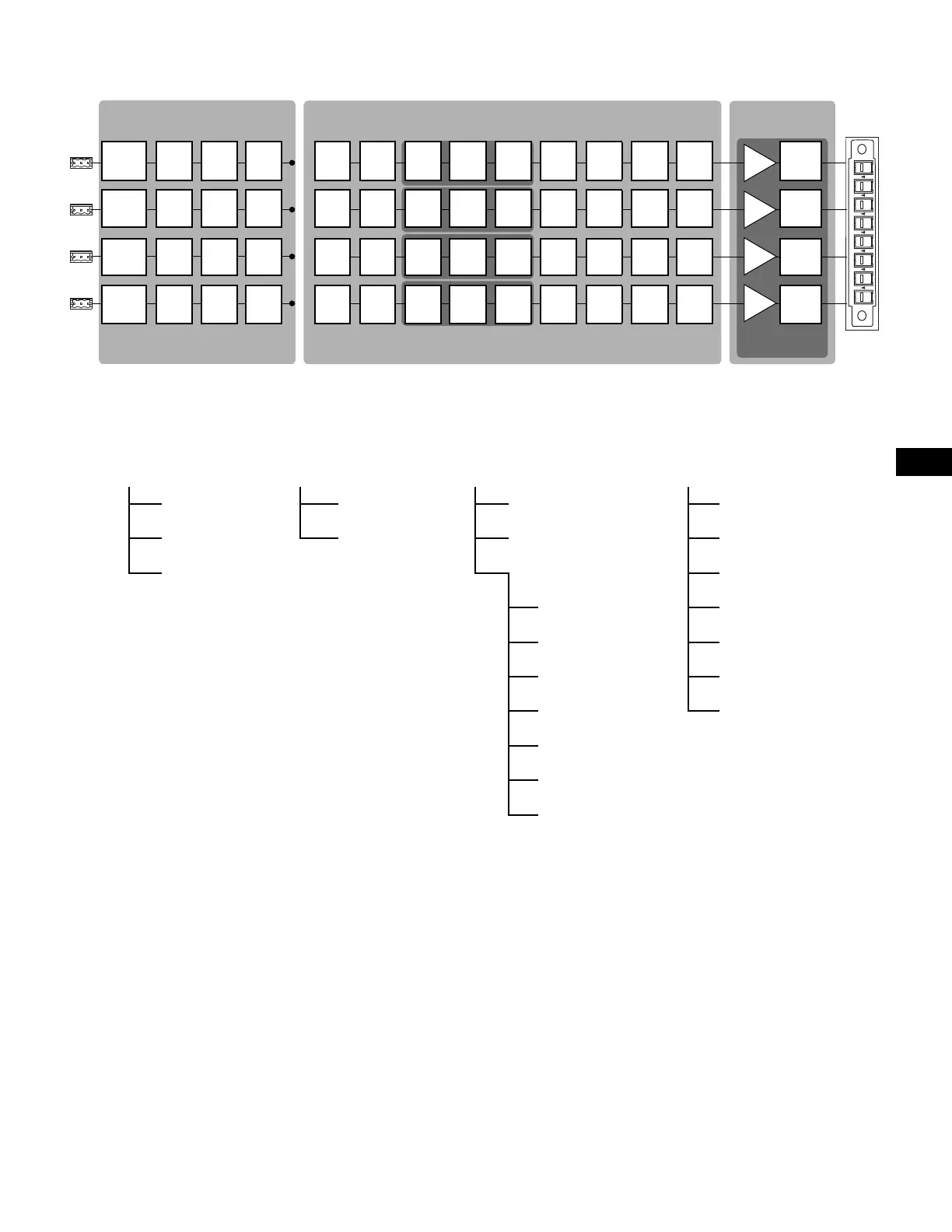

CXD Amplifier Signal Flow
— Figure 11 —
Input Settings Output Processing Amp Config.
Sensitivity
Switch
A/D Meter Gain Mixer Mute
High-pass
Filter
Gain /
Polarity
Low-pass
Filter
5-Band
PEQ
Delay
RMS /
Peak
Limiter
D / A
A
Meter
Sensitivity
Switch
A/D Meter Gain Mixer Mute
High-pass
Filter
Gain /
Polarity
Low-pass
Filter
5-Band
PEQ
Delay
RMS /
Peak
Limiter
D / A
B
Meter
Sensitivity
Switch
A/D Meter Gain Mixer Mute
High-pass
Filter
Gain /
Polarity
Low-pass
Filter
5-Band
PEQ
Delay
RMS /
Peak
Limiter
D / A
D
Meter
Sensitivity
Switch
A/D Meter Gain Mixer Mute
High-pass
Filter
Gain /
Polarity
Low-pass
Filter
5-Band
PEQ
Delay
RMS /
Peak
Limiter
D / A
E
Meter
Button
Activated
Crossover
Set by Preset or Wizard
Menu Tree
Presets Inputs Outputs Utilities
Preset Recall Input Sensitivity Mixer w/Noise & Tone Status
Preset Save Input Gain Mode (Lo-Z, 70V, 100V) Amp ID
Preset Wizard Spkr Processing Display
Crossover Lockout
PEQ Password
Delay GPI
Limiter GPO
Array Correction*
Load Speaker
*For QSC Line Arrays only.
Save Speaker
AC Power On
After connecting the outputs to the loudspeakers, you may turn the amplifier on.
1. Make sure all the audio source devices (CD players, mixers, instruments, etc.) are turned down fully.
2. Turn on the audio sources.
3. Turn on the AC mains power switch on the back of the amplifier. The amplifier starts up in the state it was in when power was removed. If the
amplifier is in Standby or Mute All mode (indicated by the power button LED solid or blinking red), press the power button to change the amplifier
to Run mode.
4. You can now turn up the audio sources.
