QSC K8.2 - Menu Map and Input Settings

EN
14 (DRAFT 2017/05/02)
TD-000523-00-01-C
Menu Map
Menu Listing
INPUT A: Select the sensitivity of input A
LINE
LINE
MIC
INPUT A
Use with mixers and other sources that have high-level outputs.
MIC
YES
NO
SWITCH TO MIC
ARE YOU SURE?
INPUT A
Use with directly connected microphones and sources with low-level output.
INPUT B: Select the sensitivity and impedance of input B
LINE
LINE
INST
INPUT B
Use with mixers and other sources that have high-level outputs.
INST
YES
NO
SWITCH TO INST
ARE YOU SURE?
INPUT B
Use when connecting musical instruments with passive pick-up systems.

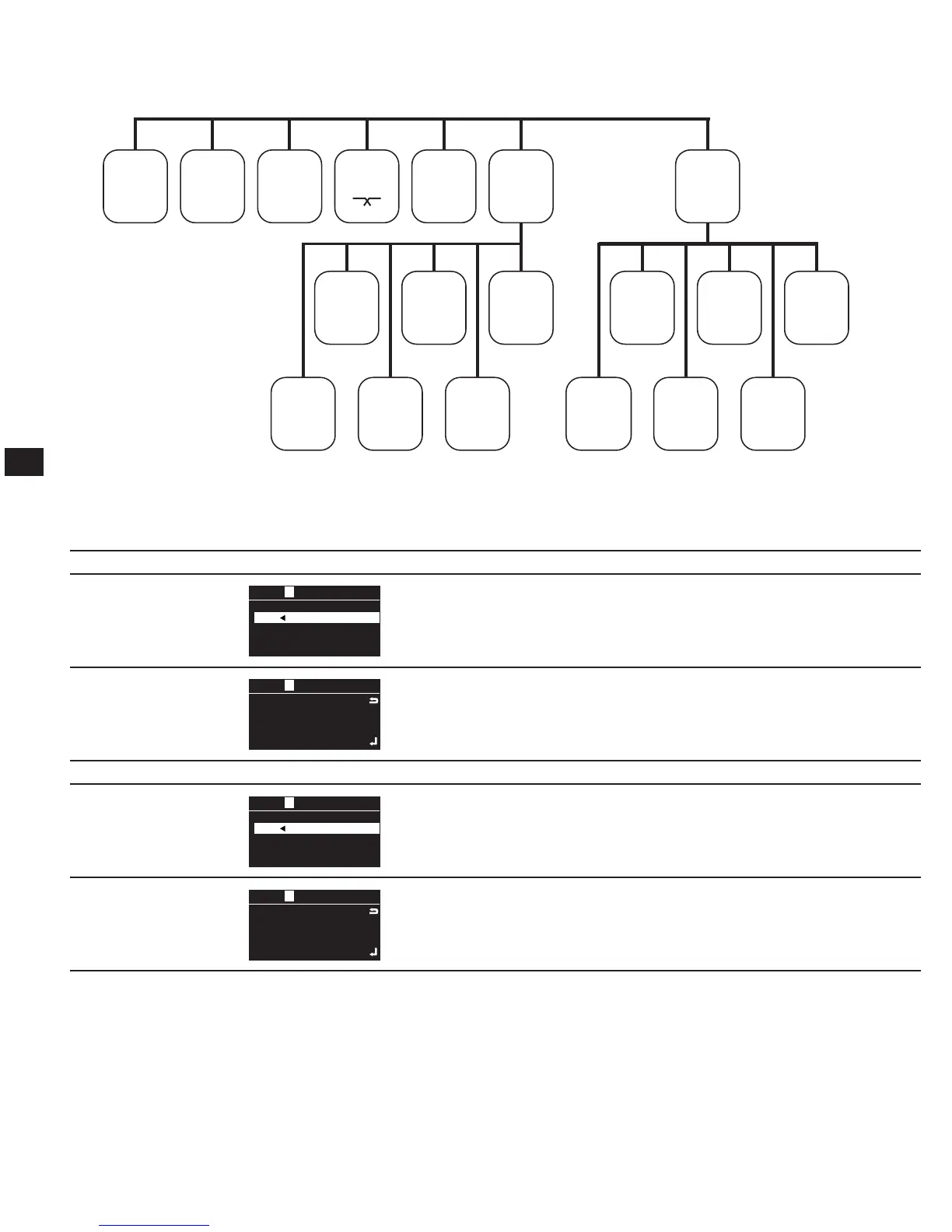

— Figure 19 —
SETTINGS
PRESET
SUB
MENU
EQDELAY
PEQ
BAND
1
PEQ
LOW
SHELF
EQ
RESET
RECALL
SCENES
PEQ
HIGH
SHELF
PEQ
BAND
2
LED
EQ
IN/OUT
SAVE
SCENES
INPUT A
LINE
MIC*
INPUT B
HI-Z
LINE
FACTORY
RESET
CONTRAST
FIRMWARE
VERSION
