QSC TouchMix-16 User Manual

116
1001108-01-F
TM- P P  M

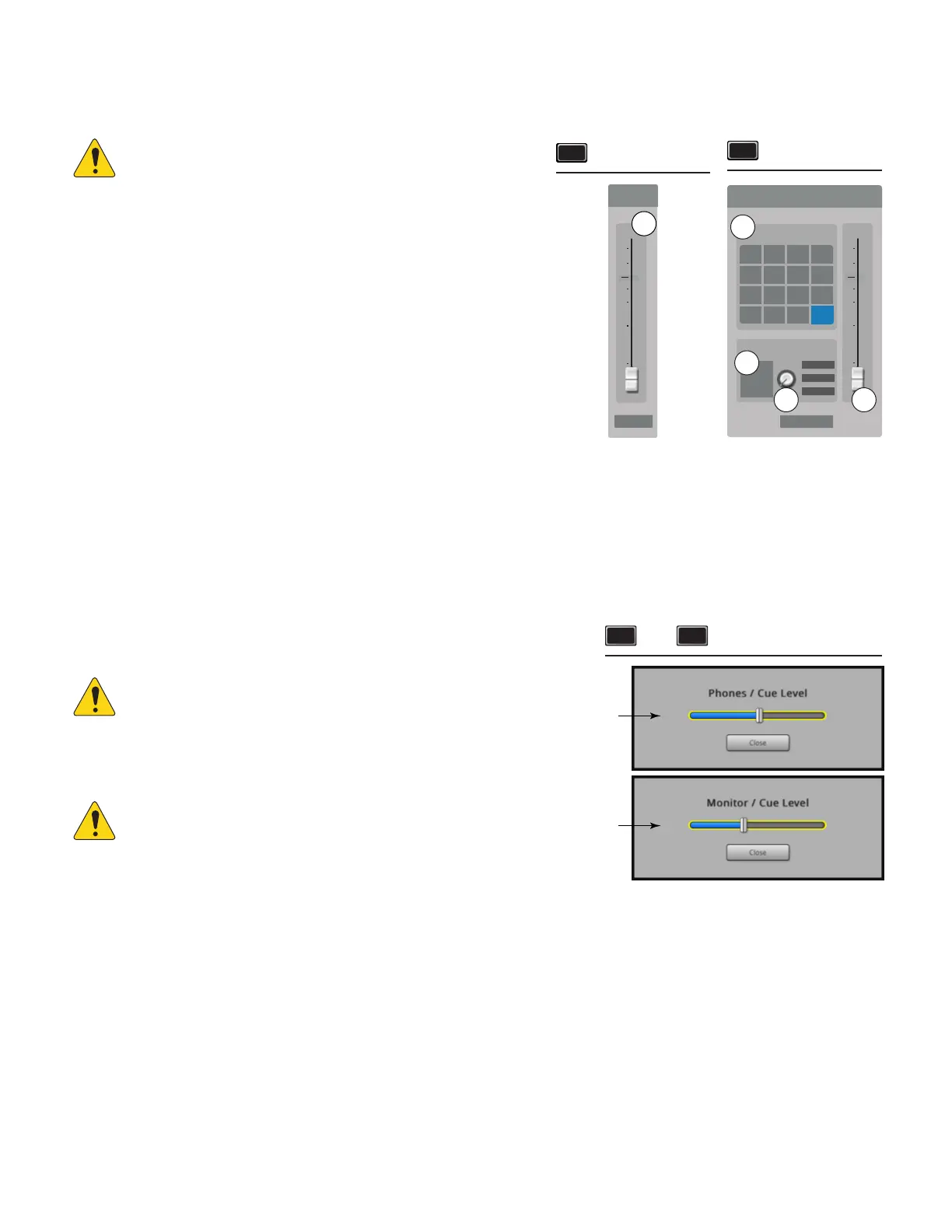

Phones and Monitor Level Control and Monitor settings.
NOTE: By default, no audio signal is
sent to the Phones / Monitor Outputs. To send audio channel signals
(including Main L/R) to the Phones / Monitor Outputs. Enable the Cue
button for the channels you want to listen to.
Phones Level
1. Phones / Cue Level – Controls the level of the signal on the Phones
outputs.
Monitor Level and Settings
1. Source (Monitor) – Select the source you want to send to the Monitor output.
2. In – Engages / bypasses the delay.
3. Delay – The delay is used to align the audio coming from a distant stage with
the near-field monitor signal heard at the mixer position. Digital readouts are in
feet, milliseconds, and meters.
4. Adjust the output level for the Monitor.
TM-  TM- P
 TM- M
Controls the output level for the Phones Cue and Monitor Cue
Phones Monitor
NOTE: The Monitor Level control is available only on theTouchMix-16.
Phones (1) and Monitor (2) Level – Controls the level of the Cue signal on the
Phones and Monitor outputs.
NOTE: By default, no audio signal is sent to the Phones / Monitor Outputs. To
send audio channel signals (including Main LR) to the Phones / Monitor Outputs.
Enable the Cue button for the channels you want to listen to.
Press Phones OR Press Monitor
Phones
-40
-20
-10
-5
U
5
10
Phones
Close
1
Press Phones OR Press Monitor
-40
-20
-10
-5
U
5
10
Aux 1
Aux 5
Aux 9
Aux 13
Aux 2
Aux 6
Aux 10
Aux 14
Aux 3
Aux 7
Aux 11
Main LR
Aux 4
Aux 8
Aux 12
Cue
Monitor
Source
Delay
In
0.00 feet
0.00 ms
0.00 m
Close
4
1
2
3
Monitor
Press Phones OR Press Monitor
1
2

QSC TouchMix-16 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
XLR out	8
DJ mixer	-
Audio input	4x XLR/TRS combo, 12x XLR, 2x TRS
Product color	Silver

Weight and Dimensions

Depth	291 mm
Width	360 mm
Height	58 mm
Weight	2980 g
