81
1001108-01-F
Wizards
FX W

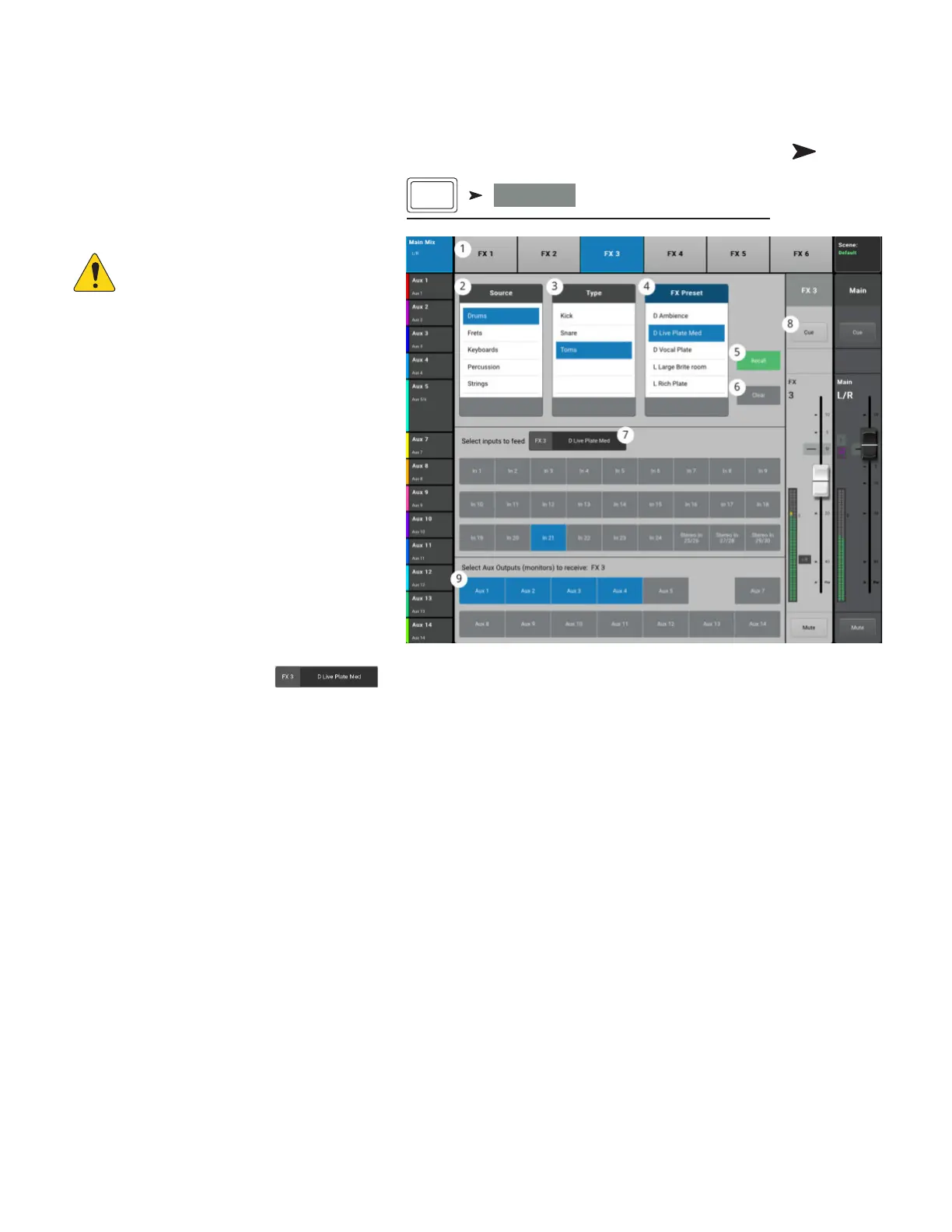

The FX Wizard aids in selecting and routing effects.
1.
FX1 - 6 tabs
– Selects one of six
FX processors. (Four on TouchMix-8 and
TouchMix-16)
NOTE: The Source, Type, and FX
Preset windows provide a means of
selecting an Effect based on what the
source is. If any of the lists fill the window,
flick up on the list to show moreselections.
2.
Source list
– Use the Source window to
select the source instrumentcategory.
3.
Type list
– Use the Type windows to select
the specific type of instrument. This narrows
the selection to a list of recommended presets
appropriate for the application.
4.
FX Preset list
– Use the FX Preset window
to select the Effect andvariation. For example,
in the FX Preset window the letter “D” refers to
the Dense Reverb Effect, and the text following
the letter indicates the Preset (variation) of the
DenseReverb.
5.
Recall button
– Loads selected effect.
6.
Clear button
– Unassigns all the inputs
andoutputs.
7.
Select inputs to feed Label
– Each input channel is represented by a button. Touch one or more of these
buttons to apply the effect to an input.
8.
Cue button
Touch Cue above the FX fader to hear the output of the selected effect on the Cue system.
9.
Select Aux Output buttons
– Each Aux Output is represented by a button. Touch one or more of these buttons to send the
effect to the associated Aux Output.
Press Wizard
Touch
FX Wizard
Wizard
FX Wizard
