The Gain Wizard monitors input clipping and provides an
indication of how much input gain reduction is needed.
NOTE: The Gain Wizard provides an
indication of the frequency and intensity of
clipping to aid in proper adjustment of
input sensitivity.

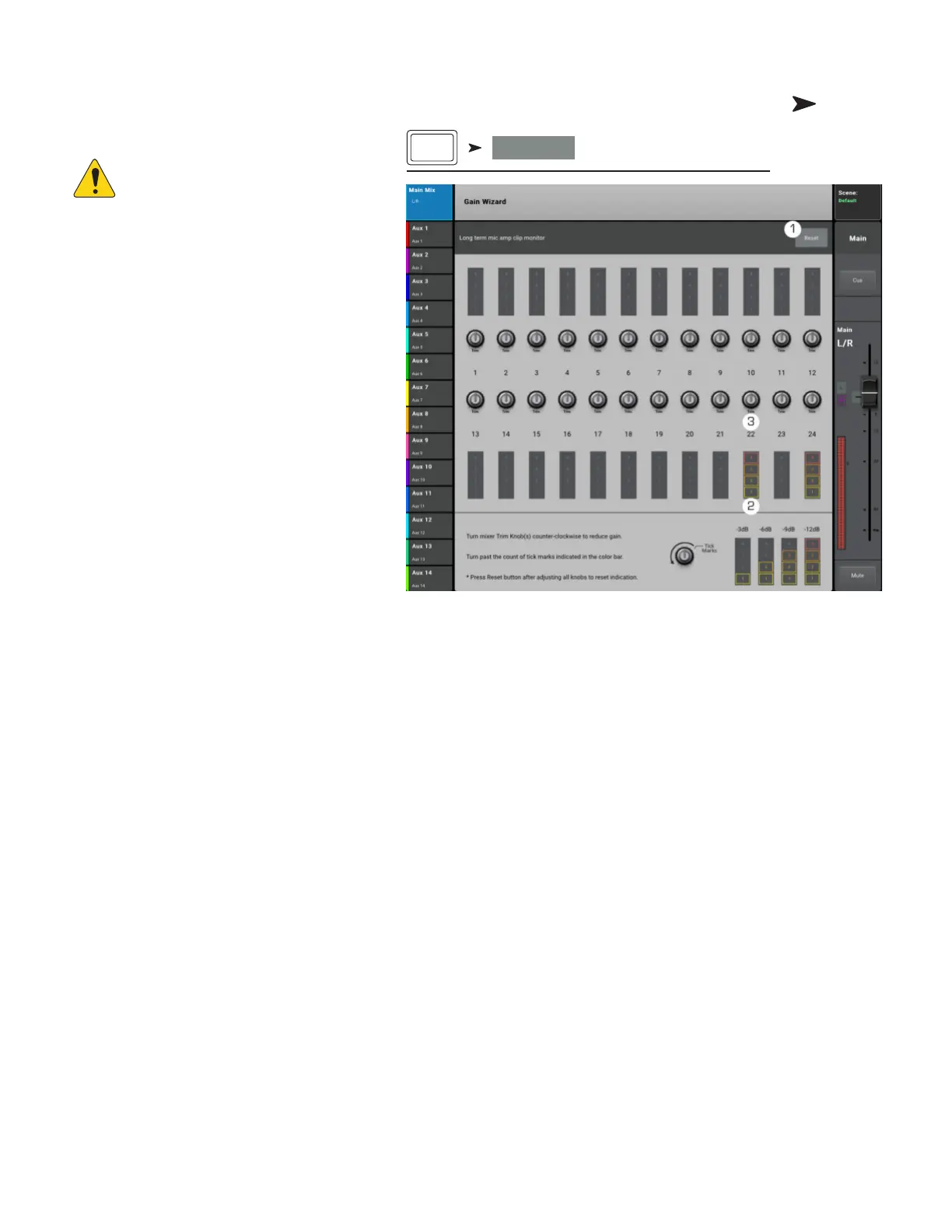

1. Reset Button – Use this to clear the Gain
Wizard after adjusting the input sensitivity.
2. Tick-Mark Counters – Indicates
how many tick marks to turn the Trim knob
counterclockwise to prevent clipping.
3. Trim Knob – Turn this knob (on the TouchMix
surface) the number of tick marks indicated on
the Tick-Mark counter.
Press Wizard
Touch
Gain Wizard
Wizard
Gain Wizard

QSC TouchMix-16 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
XLR out	8
DJ mixer	-
Audio input	4x XLR/TRS combo, 12x XLR, 2x TRS
Product color	Silver

Weight and Dimensions

Depth	291 mm
Width	360 mm
Height	58 mm
Weight	2980 g
