256

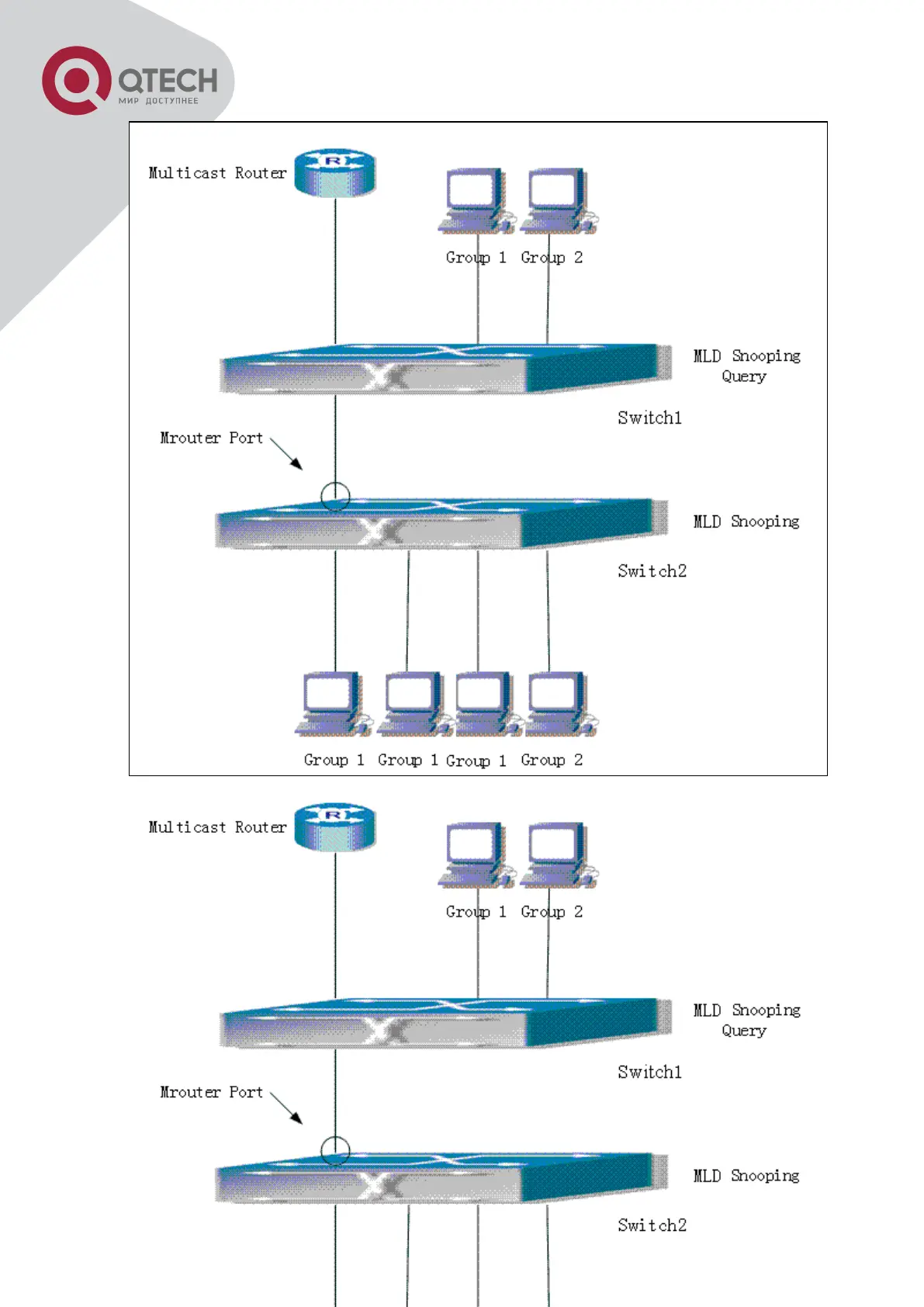

Switch as MLD Querier Function figure
Configuration of switch B is the same as the switches in case 1, and here the switch 1
replaces the Multicast Router in case 1. Assume the vlan 60 configured on it contains port 1, 2,
10, 12, amongst port 1 is connected to multicast server, port 2 to switch2. To send Query
periodically, global MLD Snooping has to be enabled while executing the mld snooping vlan 60
l2-general-querier, setting the vlan 60 to a Level 2 General Querier.
Configuration procedure is as follows:
SwitchA#config
SwitchA(config)#ipv6 mld snooping
SwitchA(config)#ipv6 mld snooping vlan 60
SwitchA(config)#ipv6 mld snooping vlan 60 l2-general-querier
SwitchB#config
SwitchB(config)#ipv6 mld snooping
SwitchB(config)#ipv6 mld snooping vlan 100
SwitchB(config)#ipv6 mld snooping vlan 100 mrouter interface ethernet 1/1
SwitchA
SwitchB
