46.3 MAB Example
Example:

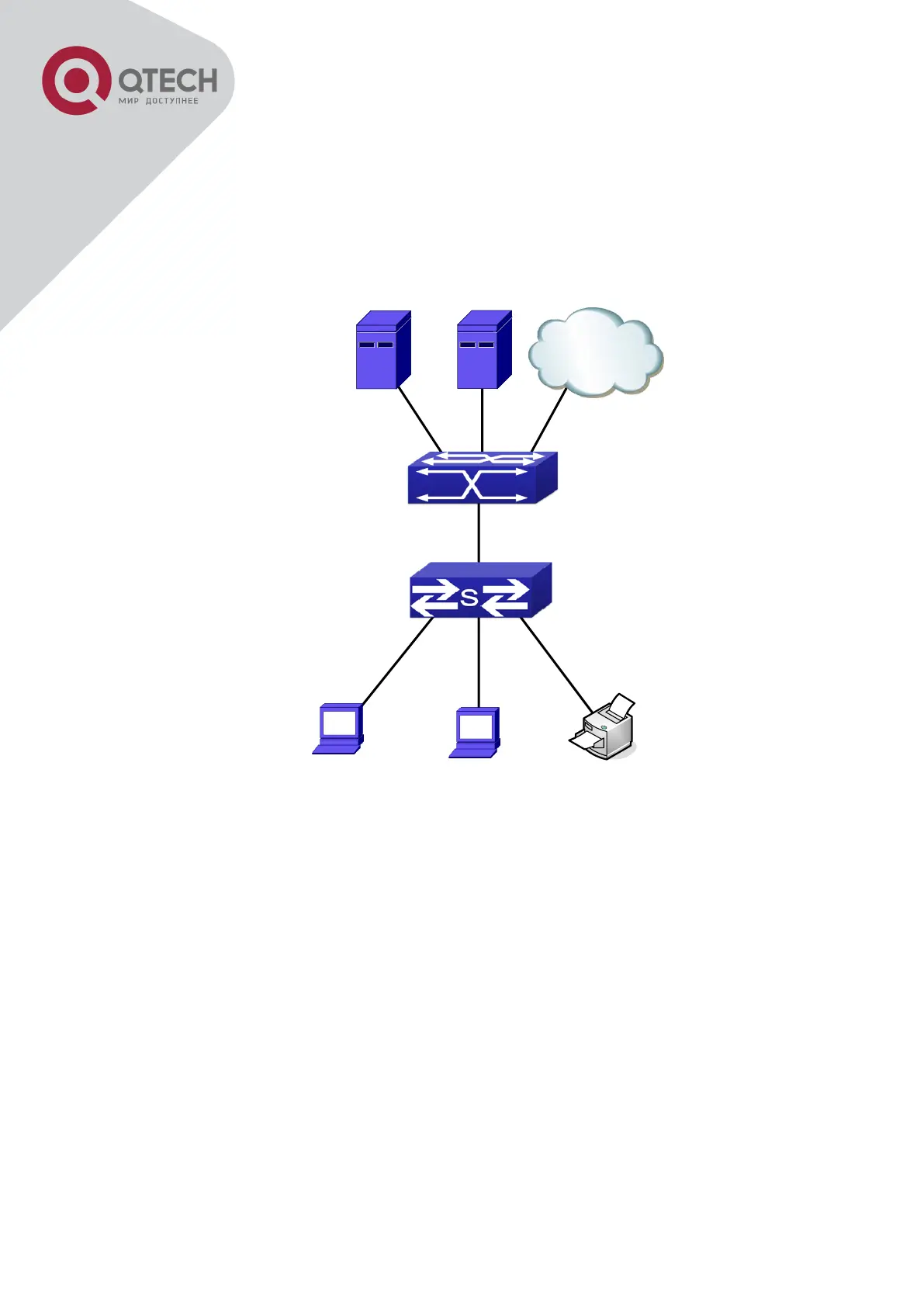

The typical example of MAB authentication function:
MAB application
Switch1 is a layer 2 accessing switch, Switch2 is a layer 3 aggregation switch.
Ethernet 1/1 is an access port of Switch1, connects to PC1, it enables 802.1x port-based
function and configures guest vlan as vlan8.
Ethernet 1/2 is a hybrid port, connects to PC2, native vlan of the port is vlan1, and configures
guest vlan as vlan8, it joins in vlan1, vlan8 and vlan10 with untag method and enables MAB
function.
Ethernet 1/3 is an access port, connects to the printer and enables MAB function.
Ethernet 1/4 is a trunk port, connects to Switch2.
Ethernet 1/4 is a trunk port of Switch2, connects to Switch1.
Ethernet 1/1 is an access port, belongs to vlan8, connects to update server to download and
upgrade the client software.
Ethernet 1/2 is an access port, belongs to vlan9, connects to radius server which configure
Eth1/
1
Radius
Server
Switch1
Update
Server
Internet
Eth1/2
Eth1/3
PC1
PC2
Printer
Switch2
Ethernet1/4
Ethernet1/4
Eth1/1
Eth1/2
Eth1/3
