8.3 LLDP Function Typical Example
LLDP Function Typical Configuration Example

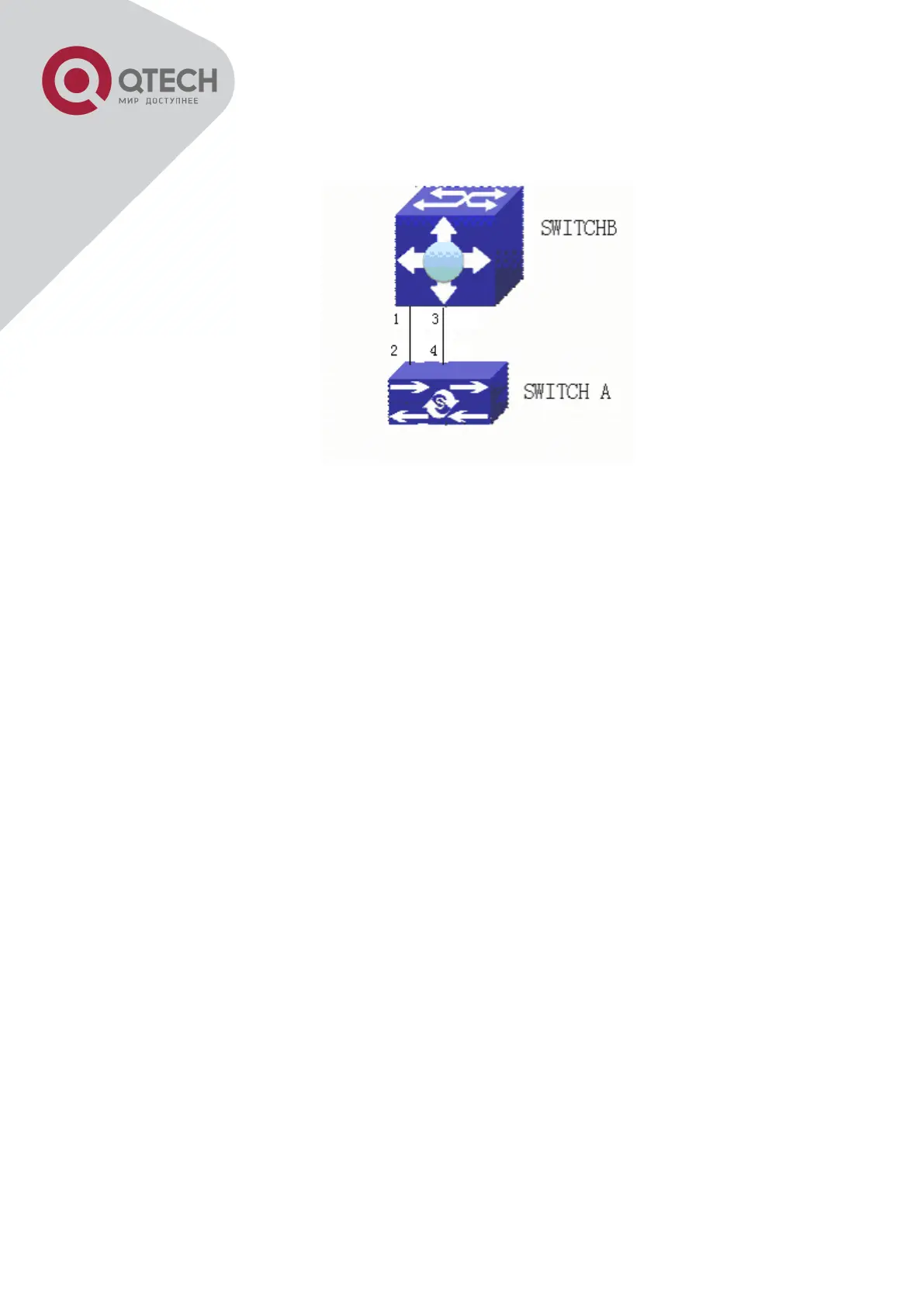

In the network topology graph above, the port 1,3 of SWITCH B are connected to port 2,4 of
SWITCH A. Port 1 of SWITCH B is configured to message-receiving-only mode, Option TLV of
port 4 of SWITCH A is configured as portDes and SysCap.
SWITCH A configuration task sequence:
SwitchA(config)# lldp enable
SwitchA(config)#interface ethernet 1/4
SwitchA(Config-If-Ethernet1/4)# lldp transmit optional tlv portDesc sysCap
SwitchA(Config-If-Ethernet1/4)exit
SWITCH B configuration task sequence:
SwitchB(config)#lldp enable
SwitchB(config)#interface ethernet1/1
SwitchB(Config-If-Ethernet1/1)# lldp mode receive
SwitchB(Config-If-Ethernet1/1)#exit
8.4 LLDP Function
Troubleshooting
LLDP function is disabled by default. After enabling the global switch of LLDP, users can
enable the debug switch “debug lldp” simultaneously to check debug information.
Using “show” function of LLDP function can display the configuration information in global or
port configuration mode.
