Switch1(config)#interface port-channel 1
Switch1(Config-If-Port-Channel1)#
Switch2#config
Switch2(config)#port-group 2
Switch2(config)#interface ethernet 1/6
Switch2(Config-If-Ethernet1/6)#port-group 2 mode passive
Switch2(Config-If-Ethernet1/6)#exit
Switch2(config)#interface ethernet 1/8-10
Switch2(Config-If-Port-Range)#port-group 2 mode passive
Switch2(Config-If-Port-Range)#exit
Switch2(config)#interface port-channel 2
Switch2(Config-If-Port-Channel2)#
Configuration result:
Shell prompts ports aggregated successfully after a while, now ports 1, 2, 3, 4 of S1 form an
aggregated port named “Port-Channel1”, ports 6, 8, 9, 10 of S2 form an aggregated port
named “Port-Channel2”; can be configured in their respective aggregated port mode.
Scenario 2: Configuring Port Channel in ON mode.
Configure Port Channel in ON mode

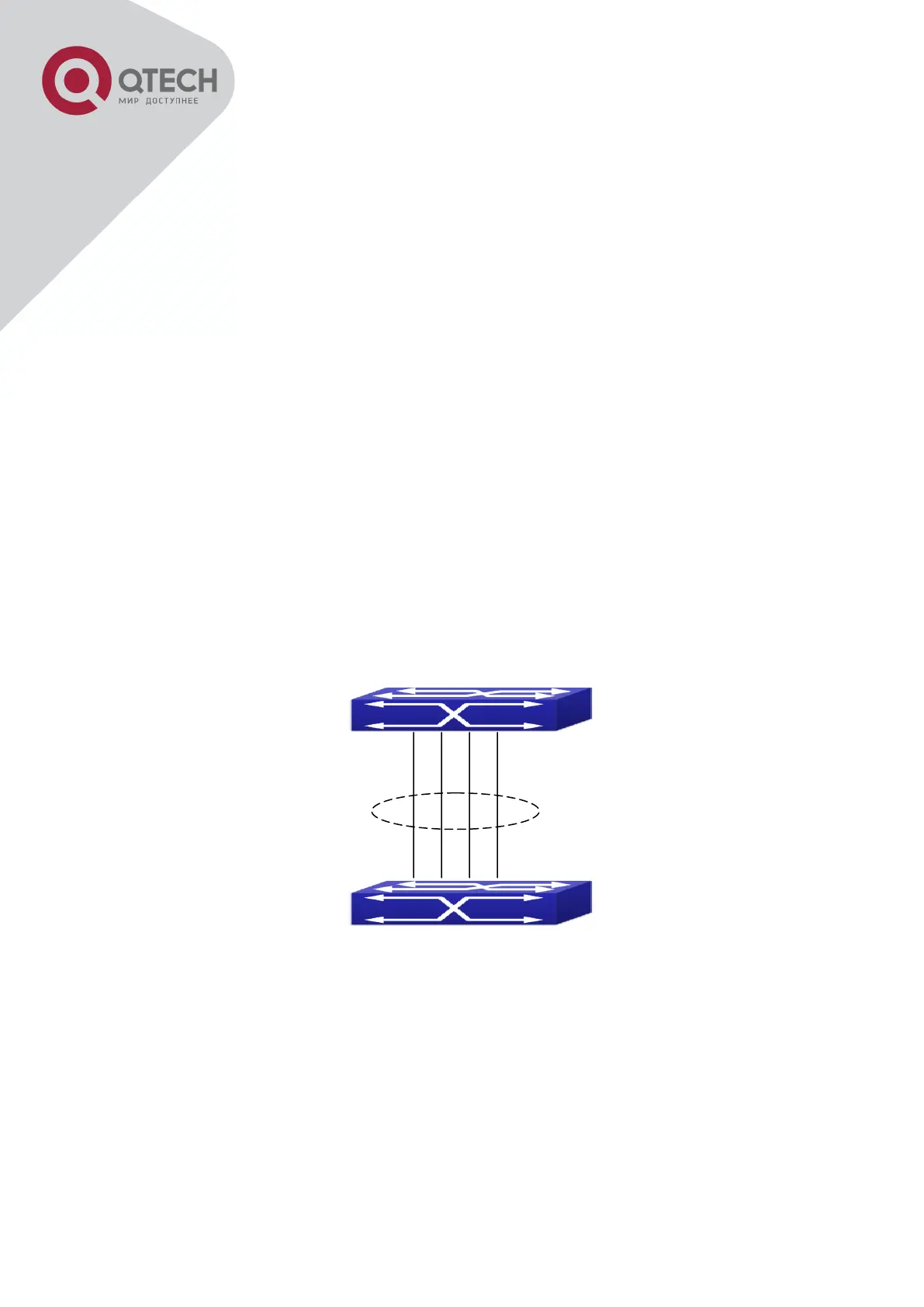

As shown in the figure, ports 1, 2, 3, 4 of S1 are access ports and add them to group1 with
“on” mode. Ports 6, 8, 9, 10 of S2 are access ports and add them to group2 with “on” mode.
The configuration steps are listed below:
Switch1#config
Switch1(config)#interface ethernet 1/1
Switch1(Config-If-Ethernet1/1)#port-group 1 mode on
Switch1(Config-If-Ethernet1/1)#exit
Switch1(config)#interface ethernet 1/2
