6 Field Programming

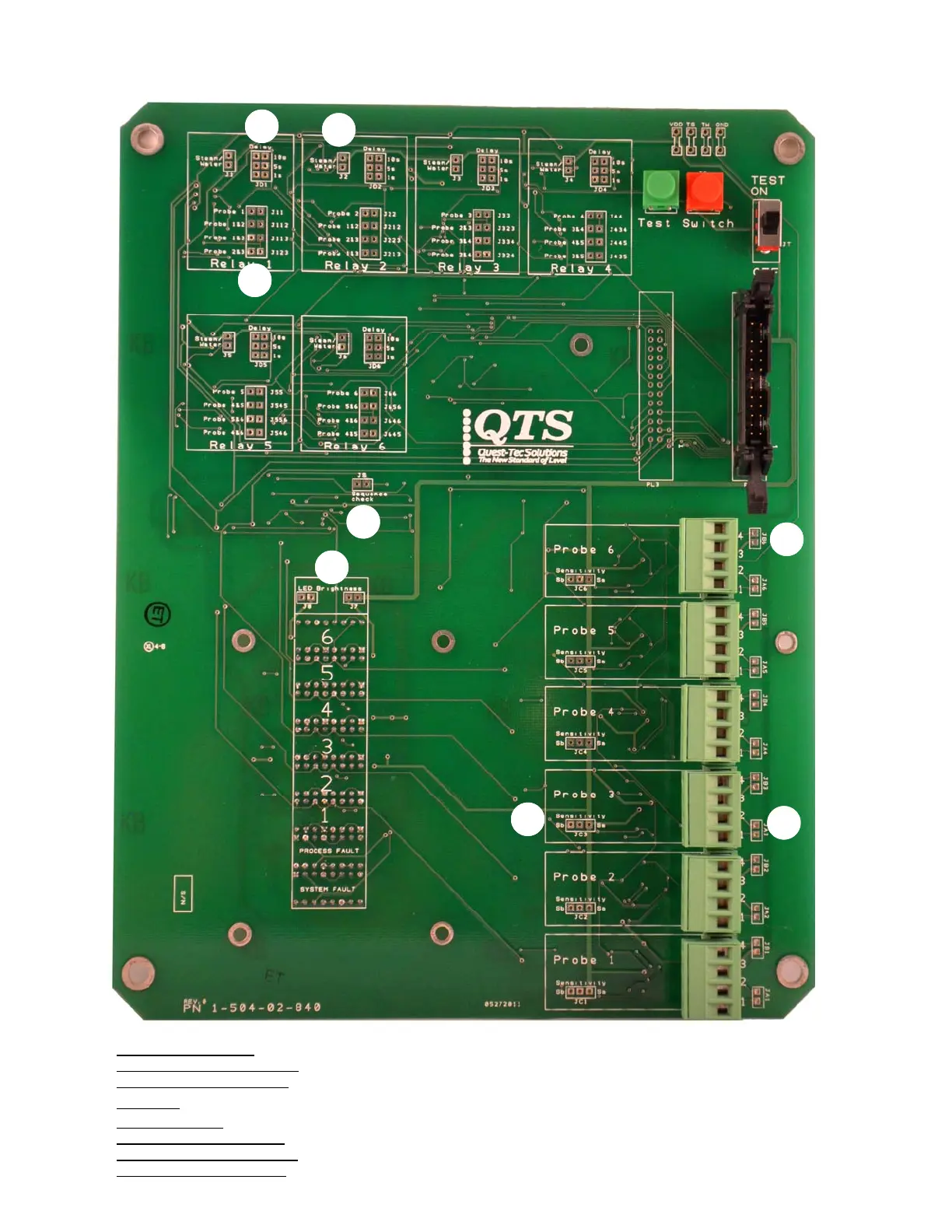

6.1 Discriminator PCB
1) Time Delay (6 Places): No Jump = 15 seconds (See Part 2.2)
2) Alarm/Trip Relays (6 Places):
Assigns relay activation conditions. (See Part 2.2.1)
3) Alarm/Trip State (6 Places):
Assigns alarm state, wet or dry. (Make jump if Alarm state is Dry. See Part 2.1)
4) Sensitivity
(6 Places): No Jump >4 µ S/cm², Sa to Center is >2 µ S/cm², Sb to Center is >1 µ S/cm² (See Part 2.3)
5) Sequence Check
: Invokes sequence logic.
6) LED Brightness (2 Places):
Doubles voltage to indicator to make it brighter (See Part 2.5)
7) Probe Assignment (6 Places)
: Jump “A” to set probe to normally Wet state. (See Part 3.3 and Figure 3.4.1)
8) Common Ground (6 Places
): Jump “B” should be made unless a Common Ground continuity check is desired.
9
2
4
5
7
8
3
1
