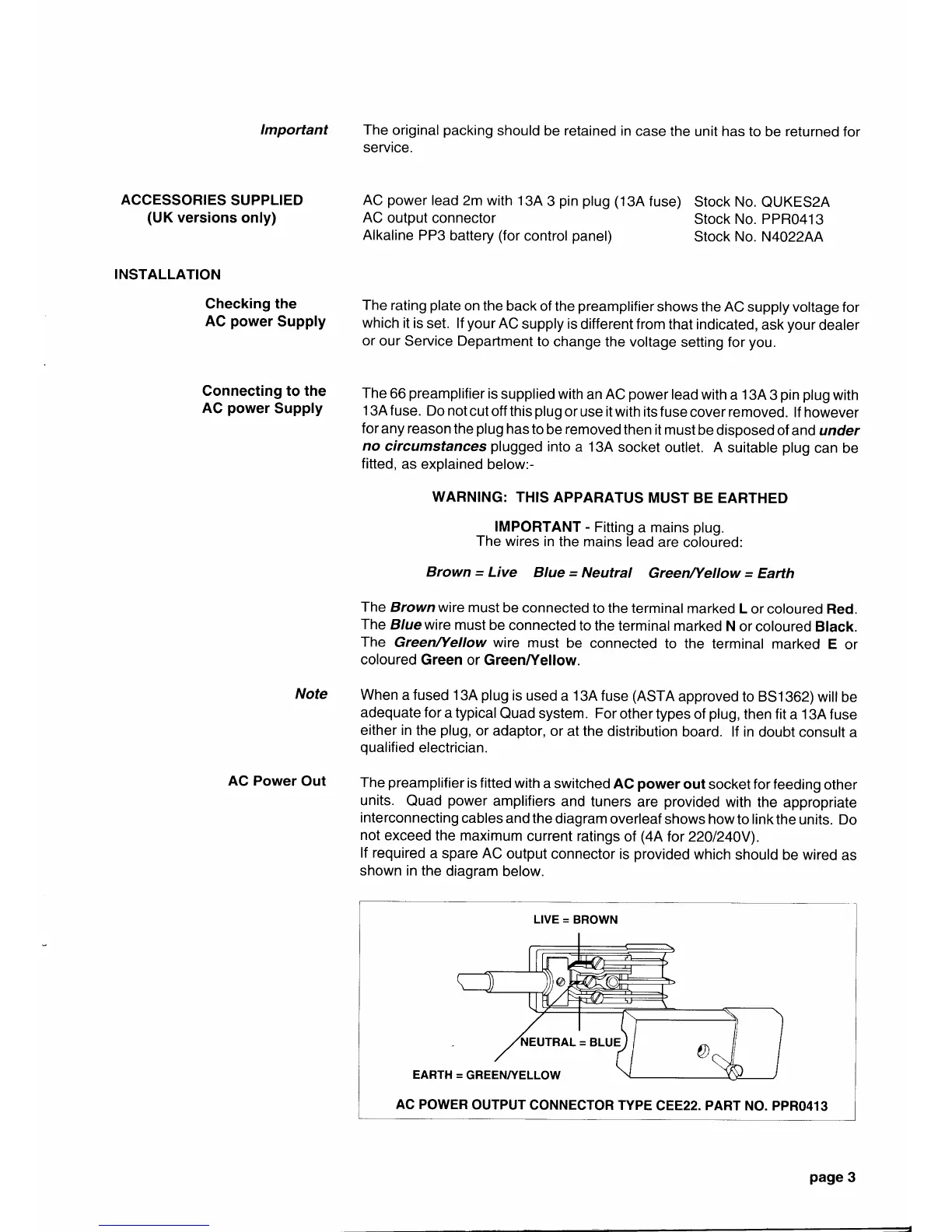

lmportant
ACCESSORIES
SUPPLIED
(UK
versions
only)
INSTALLATION
Checking the
AC
power
Supply
Connecting to the
AC
power
Supply
Note
AC Power
Out
The
original
packing
should
be
retained
in
case
the unit has to
be
returned
for
service.
AC
power
lead
2m with 13A
3
pin
plug
(13A
fuse)
Stock No.
QUKES2A
AC
output
connector
Stock No. PPR0413
Alkaline
PP3
battery
(for
control
panel)
Stock
No.
N4O22AA
The
rating
plate
on the
back of the
preamplifier
shows
the
AC
supply voltage
for
which
it is
set. lf
your
AC
supply is
different from
that indicated,
ask
your
dealer
or
our
Service
Deparlment
to
change
the voltage
setting for
you.
The
66
preamplifier
is
supplied
with
an
AC
power
lead
with
a
13A
3
pin
plug
with
13A f
use. Do not
cut off this
plug
or
use
it
with its f
use
cover
removed.
lf
however
for
any reason
the
plug
has
to
be removed
then it must
be
disposed of
and under
no
circumstances
plugged
into
a 13A
socket
outlet. A
suitable
plug
can be
fitted,
as
explained
below:-
WARNING:
THIS
APPARATUS
MUST
BE EARTHED
IMPORTANT
-
Fitting
a
mains
plug.
The
wires
in the mains
lead
are
coloured:
Brown
=
Live
Blue
=
Neutral
GreenMellow
=
Earth
The
Brown
wire must
be
connected
to the terminal
marked
L
or coloured Red.
The
BIue wire
must
be
connected
to the
terminal marked
N
or coloured
Black.
The
GreenfYellow
wire must
be
connected
to the
terminal marked
E
or
coloured
Green
or GreenlYellow.
When
a fused 13A
plug
is
used
a 13A fuse
(ASTA
approved
to 8S1362)
will
be
adequate for
a
typical
Quad
system. For
other types
of
plug,
then fit
a 13A fuse
either in
the
plug,
or adaptor,
or
at the distribution
board. lf in
doubt consult
a
qualified
electrician.
The
preamplifier
is fitted
with
a switched
AC
power
out socket forfeeding
other
units.
Quad
power
amplifiers
and
tuners
are
provided
with the
appropriate
interconnecting
cables
and the
diagram
overleaf
shows how
to link
the units. Do
not
exceed
the maximum
current ratings
of
(4A
tor 2201240V).
lf required
a spare AC
output
connector is
provided
which
should
be
wired
as
shown in
the diagram
below.
AC
POWER
OUTPUT
CONNECTOR
TYPE
CEE22.
PART
NO. PPRO413
page
3
