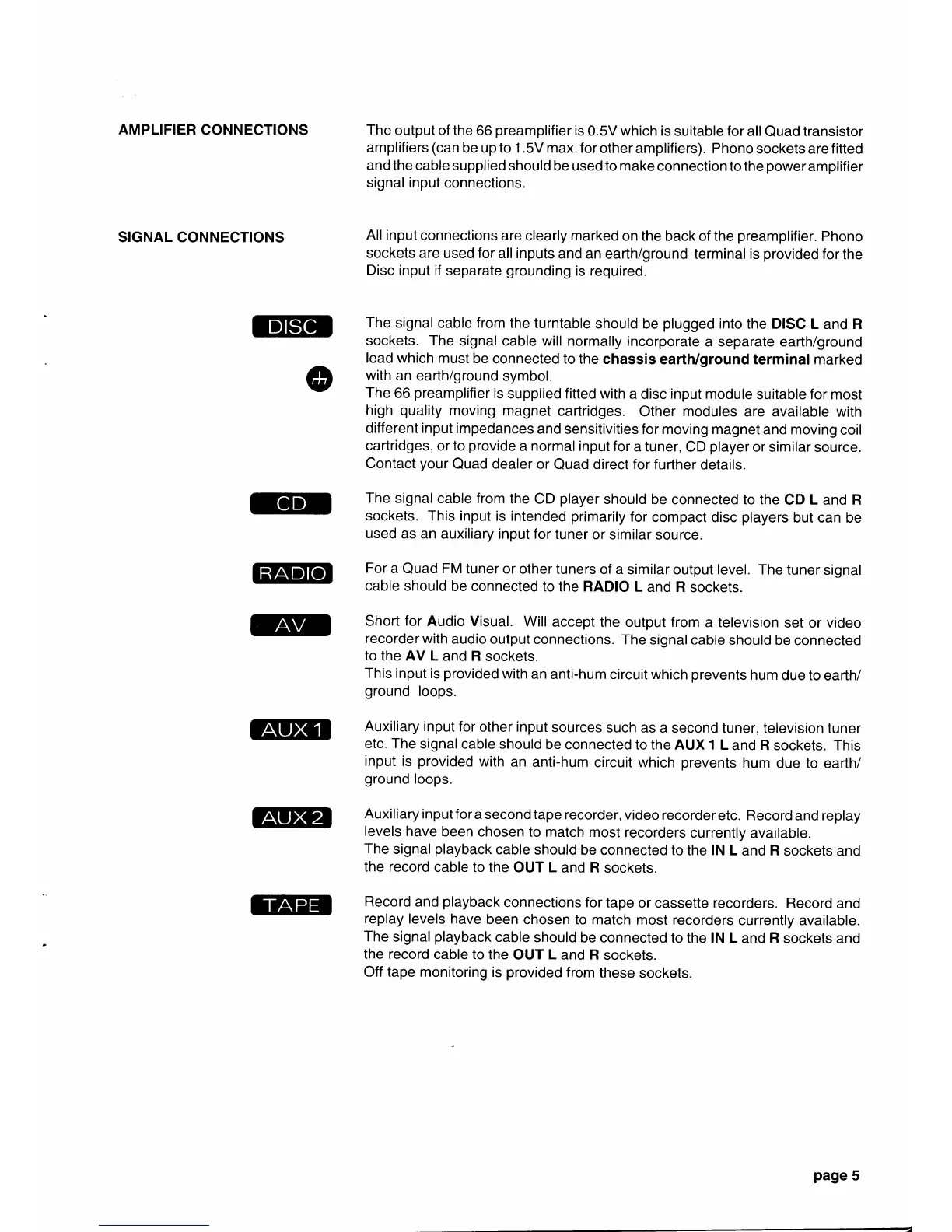

AMPLIFIER
CONNECTIONS
SIGNAL CONNECTIONS
The
output of the
66
preamplifier
is
0.5V which is
suitable
for
all
Quad
transistor
amplifiers
(can
be up to 1 .5V max.
for
other amplifiers). Phono
sockets
are
fitted
and the
cable supplied should
be used to make
connection to the
poweramplifier
signal
input
connections.
All input
connections
are
clearly
marked
on the back of the
preamplifier.
Phono
sockets are
used
for
all inputs
and
an earth/ground terminal is
provided
for
the
Disc
input if
separate
grounding
is required.
The
signal
cable from the
turntable
should
be
plugged
into
the DISC
L and R
sockets. The
signal cable will
normally incorporate
a separate eafth/ground
lead
which must
be
connected to
the chassis
earth/ground terminal
marked
with
an
earth/ground
symbol.
The
66
preamplifier
is
supplied fitted
with a
disc
input
module
suitable
for
most
high
quality
moving
magnet
cartridges.
Other
modules
are available
with
different input
impedances
and sensitivities
for moving magnet
and moving
coil
cartridges,
or to
provide
a normal input
for
a tuner,
CD
player
or similar
source.
Contact
your
Quad
dealer
or
Quad
direct
for
further
details.
The
signal
cable from
the
CD
player
should
be connected to the
CD
L and R
sockets. This input
is intended
primarily
for
compact disc
players
but can
be
used
as an
auxiliary input for
tuner
or
similar source.
For
a
Quad
FM
tuner
or other tuners
of a
similar
output
level.
The tuner
signal
cable
should
be connected
to the RADIO
L
and R
sockets.
Short
for
Audio
Visual.
Will
accept
the output from
a television
set or
video
recorder
with
audio output
connections.
The
signal cable
should be
connected
to
the AV L
and R
sockets.
This input
is
provided
with
an
anti-hum circuit which
prevents
hum
due to
earth/
ground
loops.
Auxiliary
input for
other input
sources
such as
a second tuner,
television
tuner
etc. The
signal
cable should
be
connected
to the AUX 1
L
and R sockets.
This
input
is
provided
with
an
anti-hum
circuit which
prevents
hum
due to
eafth/
ground
loops.
Auxiliary
input
for
a second tape
recorder,
video
recorder
etc. Record
and replay
levels
have
been
chosen to match
most
recorders
currently available.
The
signal
playback
cable should
be
connected to
the
lN
L
and
R
sockets
and
the record
cable to the
OUT
L
and R
sockets.
Record
and
playback
connections for
tape
or cassette recorders.
Record
and
replay
levels have
been
chosen to match
most recorders
currently available.
The
signal
playback
cable
should
be connected
to the lN
L and R
sockets and
the record
cable
to the
OUT L and R
sockets.
Off
tape monitoring
is
provided
from
these
sockets.
